FriendlyELEC / Friendlyarm NanoPi Neo Air - 8GB EMMC, Wifi, Bluetooth QuadCore Allwinner H3 Quadcore A7 1,2ghz

Hersteller: ALLNET

Artikel-Nr.: 136257

Hersteller Artikel-Nr.: Friendly_Neo_Air

Gewicht: 0.008kg

EAN Nummer: 4038816136251

Preise zzgl. gesetzlicher MwSt.
zzgl. Versandkosten



FriendlyELEC / Friendlyarm NanoPi Neo Air - 8GB EMMC, Wifi, Bluetooth QuadCore Allwinner H3 Quadcore A7 1,2ghz

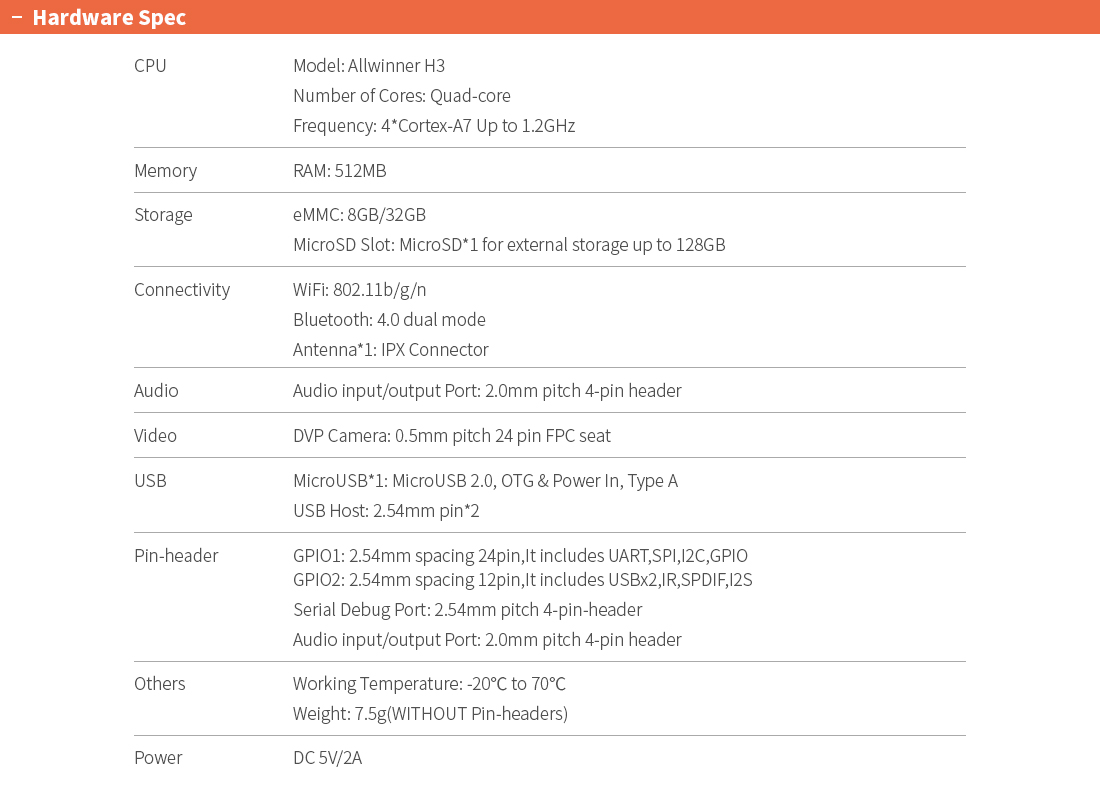

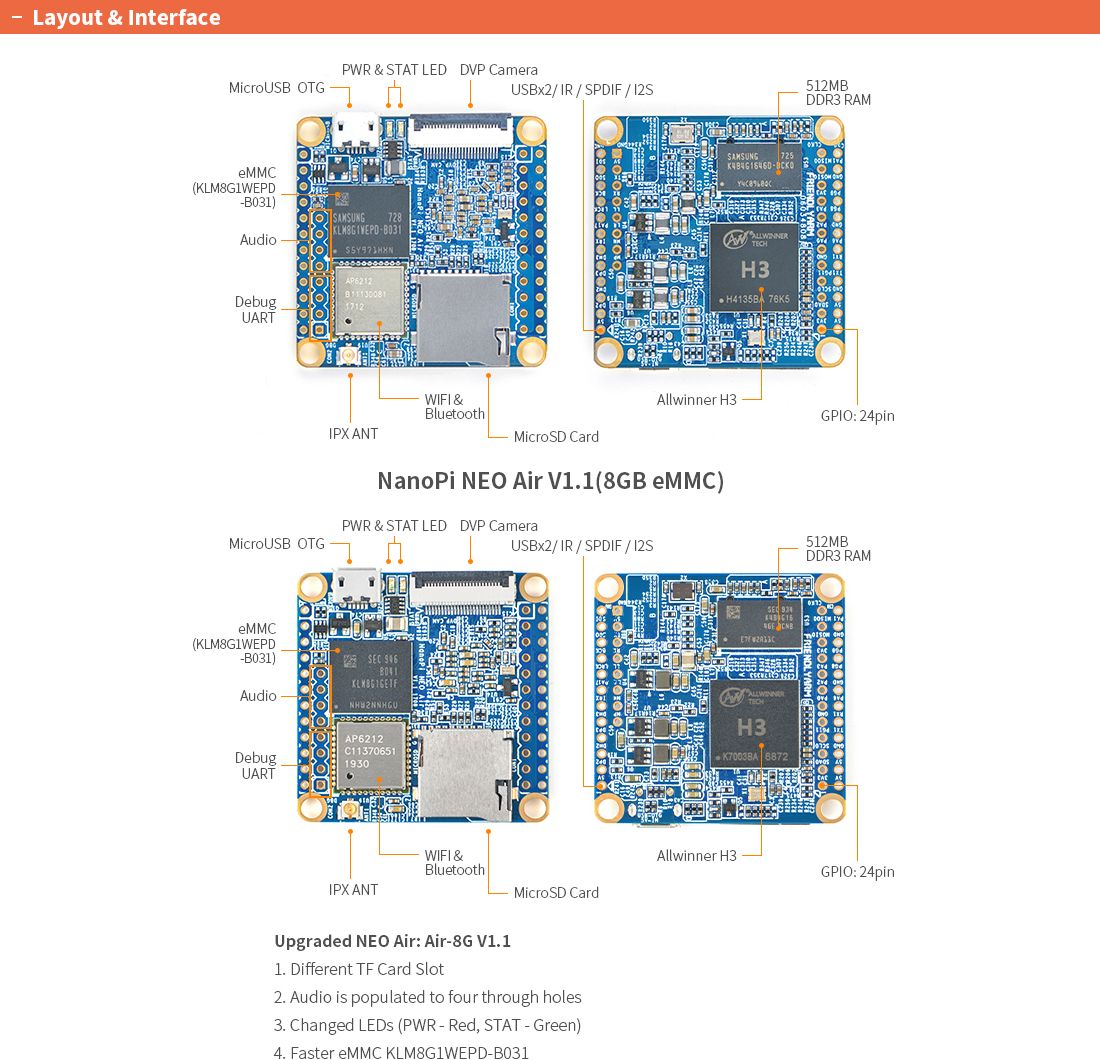

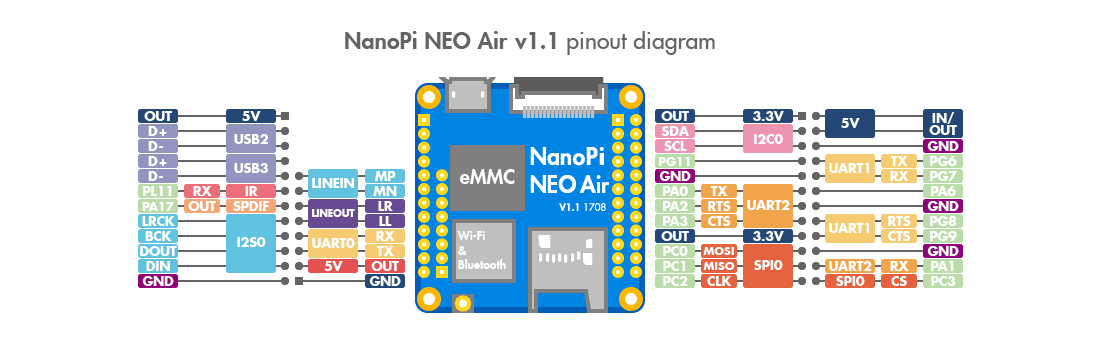

GPIO Pin Spec

Pin# Name Linux gpio Pin# Name Linux gpio
1 SYS_3.3V   2 VDD_5V
3 I2C0_SDA   4 VDD_5V
5 I2C0_SCL   6 GND
7 GPIOG11 203 8 UART1_TX/GPIOG6 198
9 GND   10 UART1_RX/GPIOG7 199
11 UART2_TX/GPIOA0 0 12 PWM1/GPIOA6 6
13 UART2_RTS/GPIOA2 2 14 GND
15 UART2_CTS/GPIOA3 3 16 UART1_RTS/GPIOG8 200
17 SYS_3.3V   18 UART1_CTS/GPIOG9 201
19 SPI0_MOSI/GPIOC0 64 20 GND
21 SPI0_MISO/GPIOC1 65 22 UART2_RX/GPIOA1 1
23 SPI0_CLK/GPIOC2 93 24 SPI0_CS/GPIOC3 67

USB/Audio/IR Pin Description

NanoPi-NEO-AIR NanoPi-NEO-AIR
Pin# Name Description Pin# Name Description
1 VDD_5V 5V Power Out 1 VDD_5V 5V Power Out
2 USB-DP1 USB1 DP Signal 2 USB-DP1 USB1 DP Signal
3 USB-DM1 USB1 DM Signal 3 USB-DM1 USB1 DM Signal
4 USB-DP2 USB2 DP Signal 4 USB-DP2 USB2 DP Signal
5 USB-DM2 USB2 DM Signal 5 USB-DM2 USB2 DM Signal
6 GPIOL11/IR-RX GPIOL11 or IR Receive 6 GPIOL11/IR-RX GPIOL11 or IR Receive
7 SPDIF-OUT/GPIOA17 GPIOA17 or SPDIF-OUT 7 SPDIF-OUT/GPIOA17 GPIOA17 or SPDIF-OUT
8 MICIN1P Microphone Positive Input 8 PCM0_SYNC/I2S0_LRC I2S/PCM Sample Rate Clock/Sync
9 MICIN1N Microphone Negative Input 9 PCM0_CLK/I2S0_BCK I2S/PCM Sample Rate Clock
10 LINEOUTR LINE-OUT Right Channel Output 10 PCM0_DOUT/I2S0_SDOUT I2S/PCM Serial Bata Output
11 LINEOUTL LINE-OUT Left Channel Output 11 PCM0_DIN/I2S0_SDIN I2S/PCM Serial Data Input
12 GND 0V 12 GND 0V

Debug Port(UART0)

Pin# Name
1 GND
2 VDD_5V
3 UART_TXD0
4 UART_RXD0

Note:

    1. SYS_3.3V: 3.3V power output
    2. VVDD_5V: 5V power input/output. When the external device’s power is greater than the MicroUSB's the external device is charging the board otherwise the board powers the external device. The input range is 4.7V ~ 5.6V
    3. All pins are 3.3V, output current is 5mA

Related Resources


Wiki: http://wiki.friendlyarm.com/wiki/index.php/NanoPi_NEO_Air

github:https://github.com/friendlyarm

H3 Datesheet:http://wiki.friendlyarm.com/wiki/images/4/4b/Allwinner_H3_Datasheet_V1.2.pdf
