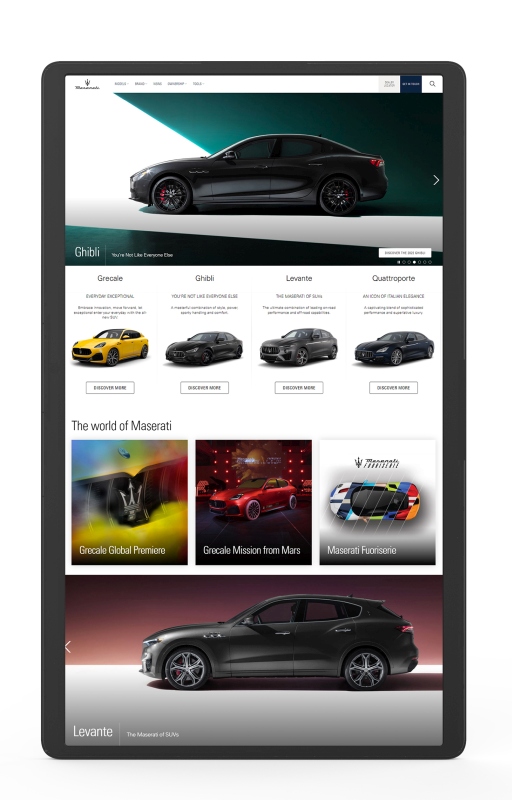

ALLNET High Performance Display 14 Zoll, LTE, Android 12, RK3588, NFC, PoE, HDMI In, Farbe schwarz
Produktinformationen "ALLNET High Performance Display 14 Zoll, LTE, Android 12, RK3588, NFC, PoE, HDMI In, Farbe schwarz"
Allnet Display 14 Zoll, TV Style, Interaktives Touch Kioskterminal, Android 12, RK3588, NFC, Farbe schwarz, LTE Version
- Hochperfomanter RK3588 Chipsatz Octa Core (4xA73+4xA55)
- 8GB Arbeitsspeicher
- Wifi 6 Gigabit Wlan
- NFC (ext. USB NFC Modul zur Fixierung an der Seite)
- Android 12 & Linux
- Incell Touchoberfläche
- HDMI Eingang für ext. Geräte
- LTE EC25EU
- LTE Cat 4 Modul
- LTE-FDD: B1/3/7/8/20/28A
- LTE-TDD: B38/40/41
- WCDMA: B1/8
- GSM: B3/B8
|
System |
CPU |
RK3588 Quad core cortex A55+Quad core cortex A76 |
|
RAM |
8GB |
|
|
Internal memory |
32GB |
|
|
Operation system |
Android 12 |
|
|
Display |
Panel Size |
14"LCD |
|
Panel Type |
IPS |
|
|
Resolution |
Standard 1920*1080/ 3840x21060 über Easy DPI Changer |
|
|
Display Colors |
16.7M Colors |
|
|
Color Gamut |
sRGB 99% |
|
|
Display mode |
Normally black |
|
|
Viewing angle |
85/85/85/85(L/R/U/D) |
|
|
Contrast ratio |
1000:1 |
|
|
Luminance |
250cdm2 |
|
|
Aspect Ratio |
16:9 |
|
|
Response Time |
14ms |
|
|
Back-light Type |
Eled |
|
|
Touch |
Model Type |
Incell Touch |
|
Number of points |
10-Point |
|
|
Interface for touch |
HID-USB |
|
|
Network |
WiFi |
802.11b/g/n/a/ac/ax (WiFi 6) |
|
Ethernet |
100M/1000M |
|
|
Bluetooth |
Bluetooth 5.0 |
|
|
Interface |
Power Jack |
DC power input |
|
MIC IN |
External microphone input |
|
|
Earphone Output |
3.5mm earphone output |
|
|
Type-c |
Full Function ( Except for charging function ) |
|
|
SIM Slot |
Yes |
|
|
USB |
Standard USB 2.0 Host |
|
|
USB |
USB 3.0 |
|
|
USB |
USB 3.0 |
|
|
HDMI IN |
Support HDMI In for Monitor |
|
|
RJ45 |
Ethernet interface |
|
|
Other |
Product Colors |
white/Black |
|
VESA |
100mm*100mm |
|
|
Button |
Power/Vol+/Vol- |
|
|
Other Power |
Speaker |
4O*5W*2 |
|
Microphone |
Built in dual Microphone , Support noise reduction and echo cancellation |
|
|
NFC |
no |
|
|
G-sensor |
Support 90 degrees |
|
|
Camera |
no |
|
|
Language |
Multi-language |
|
|
Certificates |
CE/FCC |
|
|
Power Type |
Adapter |
|
|
Input Voltage |
DC 12V/4A |
|
|
Power consumption |
=25W |
|
|
Working Surrounding Accessories |
Storage Temperature |
-20°---60° |
|
Working Temperature |
0°---50° 10~90%RH |
|
|
Adapter |
Adapter,12V/4A |
|
|
Working Surrounding |
User manual |
yes |
|
|
|
