ALLNET IP Kamera zbh. Junctionbox/Montagebox for ALL-CAM2496-LEFN

Highlights: Optik 1/2,7'', mit Lichtquelle SmartIR, bis zu 50m (164 ft) IR Entfernung Bis zu 120 dB optischer WDR (Wide Dynamic Range) Komprimierung Ultra 265, H.265, H.264, MJPEG  Dreifach-Streams  2592*1944@20fps im Hauptstrom ROI (Region von Interesse) Netzwerk ONVIF-Konformität Aufbau DC12V oder PoE-Stromversorgung Großer Spannungsbereich von ±25% in DC Micro SD, bis zu 256 GB Alarm 1 Eingang und 1 Ausgang, Audio 1 Eingang und 1 Ausgang IP67 Schutz gegen Eindringen IK10 vandalismusgeschützt     Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx  Technical Details:   ALL-CAM2496v2-LEFN Camera Sensor 1/2.7",5.0 megapixel, progressive scan, CMOS Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.7 60.8 24.3 12.2 6.1 13.5 303.8 121.5 60.8 30.4 Angle of View (H) 106.25°~ 30.42° Angle of View (V) 56.36°~ 17.22° Angle of View (O) 110.34°~34.18° Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >56 dB IR Range Up to 50m (164ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Supported Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Audio Audio Compression G.711 Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation EZView EZLive Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Interface Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] Alarm I/O 1/1 Network 1 RJ45 10M/100M Base-TX Ethernet Certifications Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0 W Dimensions (L × W × H) 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) Net Weight 0.92kg (2.0lb) Material Metal Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 6KV Ingress Protection IP67 Vandal Resistant IK10 Reset Button N/A

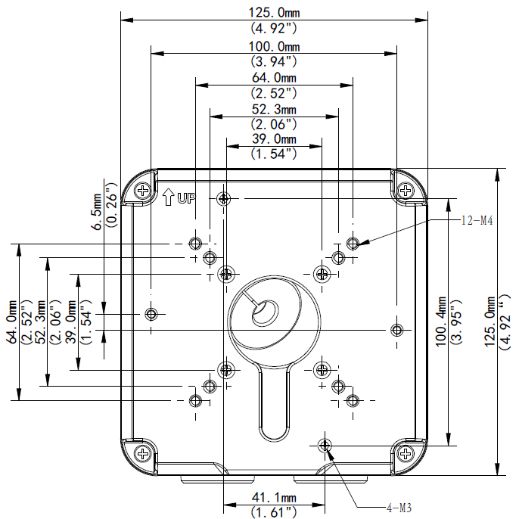

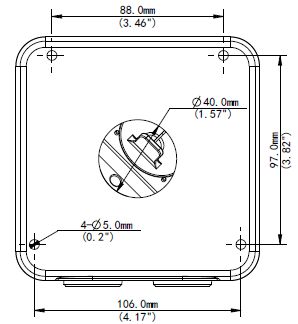

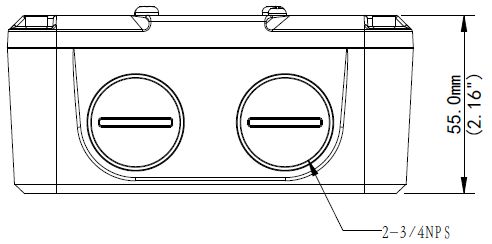

Outdoor, pole or rail installation for following ALLNET ALL-CAM2496/ALL-CAM2495/ALL-CAM2497 Please note: Junction-Box is extra needed for your specific IP-Camera Bracket ALL-CAM24xx zbh. Pole-Mount/Masthalter Application Outdoor, pole or rail installation Dimensions(L × W × H) 120mmx120mmx53.4mm(4.7”x4.7”x2.1”) Weight 0.45kg(0.99lb) Material Galvanized sheet
