EdgeCore Switch full manged 32 Port • 32 x 400G QSFP-DD • 19" 1 HE • Datacenter Switch • Front-to back • DCS240 • 9726-32DB-O-AC-F
EdgeCore Networks
Bestand:
0x
Nicht Lagernd
Artikel-Nr.:
241396
Herstellernummer:
9726-32DB-O-AC-F
Intrastat ID:
85176200
Ursprungsland:
Taiwan
Garantie:
36 Monate
Gewicht:
16,180 KG
Produktinformationen "EdgeCore Switch full manged 32 Port • 32 x 400G QSFP-DD • 19" 1 HE • Datacenter Switch • Front-to back • DCS240 • 9726-32DB-O-AC-F"
EdgeCore DCS240 • 9726-32DB-O-AC-F, 32 x 400G QSFP-DD ports, Broadcom Trident 4 12.8Tbps ASIC, Quad-core Intel Xeon® D1519 CPU, dual hot-swappable 1500W AC PSUs and 5+1 Fan Modules with Front-to-Rear airflow, rack mount kit (Front and back), 3 years Hardware Warranty
Features

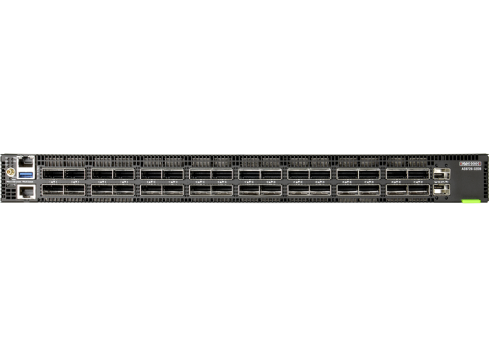

- QSFP56-DD switch ports, each supporting 1 x 400 GbE, or via breakout cables 2 x 200G GbE or 4 x 100 GbE.
- Upper 16 ports support up to 24 W per transceiver.
Lower 16 ports support up to 14 W per transceiver. - QSFP56-DD switch ports also support 100 GbE QSFP28 and 40 GbE QSFP+, and via breakout cables 4 x 25 GbE or 4 x 10 GbE.
- Supports 400G ZR / Open ZR+ coherent transceivers in the upper 16 QSFP56-DD ports.
- Incorporates Broadcom Trident 4 switch series silicon.
- 1 RU form factor.
- Supports hot/cold aisles with front-to-back and back-to-front airflow SKUs.

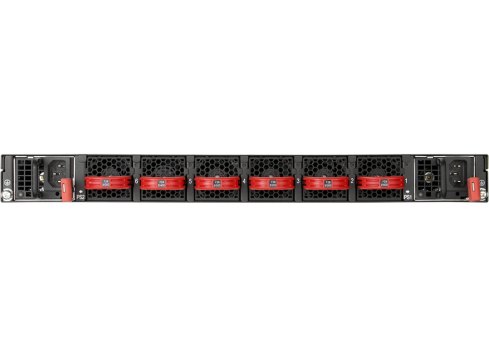

- All ports on front; PSUs and fans accessible from rear.
- Hot-swappable, load-sharing, redundant 1500 W PSUs.
- 5+1 redundant, hot-swappable fan modules.
- Hardware switch pre-loaded with Open Network Install Environment (ONIE) for automated loading of compatible open source and commercial NOS offerings.
Compatible Software Option
-
Netscout – Packet Flow Switch
-
SONiC
