Hanwha Techwin IP-Cam Zbh. Backbox für Bullet SBO-100B1

Hanwha Videoüberwachung

Preise exkl. MwSt. zzgl. Versandkosten

Artikel-Nr.: 135176

EAN: 8801089168214

Herstellernummer: SBO-100B1

Intrastat ID: 83024900

Ursprungsland: Vietnam

Garantie: 12 Monate

Gewicht: 0,460 KG

EU RoHS und REACH Erklärung

Produktinformationen "Hanwha Techwin IP-Cam Zbh. Backbox für Bullet SBO-100B1"

SBO-100B1 Aluminum Back box for bullet cameras, Compatible with QNO-6030R / 6020R / 6010R, QNO-6032R1/ 6022R1/ 6012R1, QNO-7030R / 7020R / 7010R, QNO-7080R/6070R, SNO-L6083R / L5083R, SCO-6083R

Artikelmerkmale

Montage:	Gehäuse

Installation Kabelverschraubung M25x1,5 Grau IP68 -5bar (big)

Thread Type: Metric M25 x 1,5 according to EN60423 Material Data: Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.E.F parts. ( Contact us for Flammability V0 material ) Standard in weather-resistant EPDM rubbers for B.D parts. ( NBR rubber is optional for oil-resistance applications ) Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating. UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray IP Protection: IP68 -5bar, Cable diameter 4 - 6mm Working Temp: - 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ). Color: RAL9005 Black

Artikel-Nr.: 138428

Herstellernummer: MG25A-06B

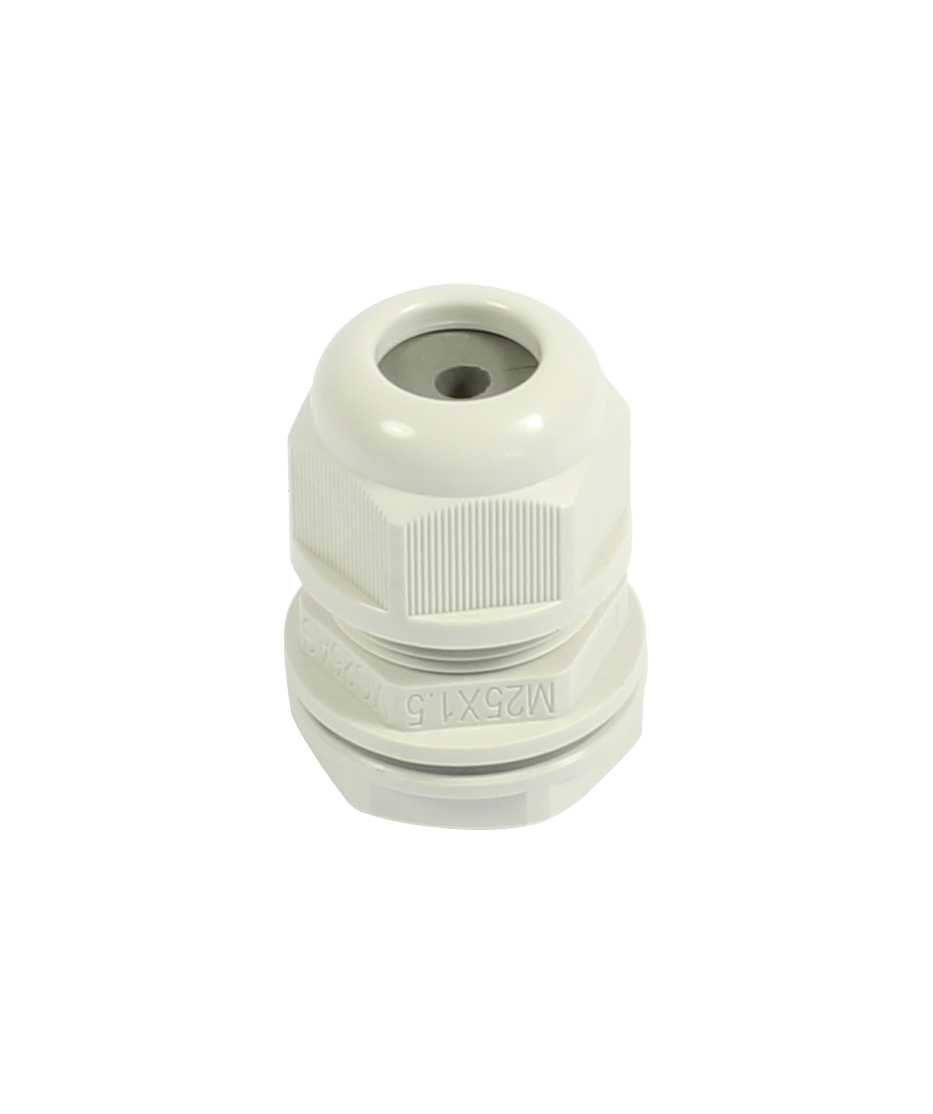

Installation Kabelverschraubung M25x1,5 Grau IP68 -5bar (small)

Thread Type: Metric M25 x 1,5 according to EN60423 Material Data: Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.E.F parts. ( Contact us for Flammability V0 material ) Standard in weather-resistant EPDM rubbers for B.D parts. ( NBR rubber is optional for oil-resistance applications ) Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating. UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray IP Protection: IP68 -5bar Working Temp: - 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ). Color: RAL7035 Light Grey

Artikel-Nr.: 138420

Herstellernummer: MG25AS-06G

Installation Kabelverschraubung M25x1,5 Grau IP68 -5bar (small)

Thread Type: Metric M25 x 1,5 according to EN60423 Material Data: Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.E.F parts. ( Contact us for Flammability V0 material ) Standard in weather-resistant EPDM rubbers for B.D parts. ( NBR rubber is optional for oil-resistance applications ) Our black cable glands are suitable for outdoor use have been subjected to UV light exposure and water immersion same as UL746C (f1) rating. UV ( Irradiance 340 nm ) exposure is performed by using a xenon-arc weatherometer for 1000 hours and intermittent exposure to water spray IP Protection: IP68 -5bar, Cable diameter 4 - 6mm Working Temp: - 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ). Color: RAL9005 Black

Artikel-Nr.: 138422

Herstellernummer: MG25AS-06B
