LoRa MCF88 LoRaWAN Multi Multi I/O Module
Artikel-Nr.:
178312
Herstellernummer:
MCF-LW13MIO
Intrastat ID:
85176200
Ursprungsland:
Italy
Garantie:
24 Monate
Gewicht:
0,120 KG
Produktinformationen "LoRa MCF88 LoRaWAN Multi Multi I/O Module"
LoRa MCF88 LoRaWAN Multi Multi I/O Module

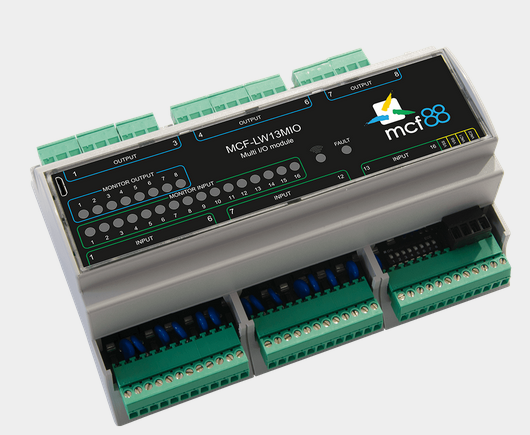

LoRaWAN® Multi I/O module
This device transmits the state of its 16 inputs and controls 8 outputs through the LoRaWAN® network. All these inputs and outputs are galvanically isolated. It can be used for industrial process control, home automation, water treatment, agriculture irrigation and similar applications.
Technische Daten:
- CPU Cortex M0
- RTC
- EEProm 32KB
- Flash 96KB
- Encryption AES 128 bit
- Class C LoRaWAN®™ stack EU868, AS923
- 16 opto-isolated input AC-DC, range 5-24Vac/dc
- 8 relay output with COM, NO, NC contacts carrying 5Amp@230Vac
- USB port for IoT node setup ad FW upgrade
- CANBUS interface
- Power supply 24 Vac/dc
- Storage temperature range -20 + 80C°
- Working temperature range -10 + 70C°
- DIN (EN 60715) mounting enclosure, 9 modules
