LoRa MCF88 LoRaWAN wireless actuator LoRa MCF88 LoRaWAN wireless actuator
Artikel-Nr.:
185570
Herstellernummer:
MCF-LW13IO
Intrastat ID:
85176200
Ursprungsland:
Italy
Gewicht:
0,300 KG
Produktinformationen "LoRa MCF88 LoRaWAN wireless actuator LoRa MCF88 LoRaWAN wireless actuator"

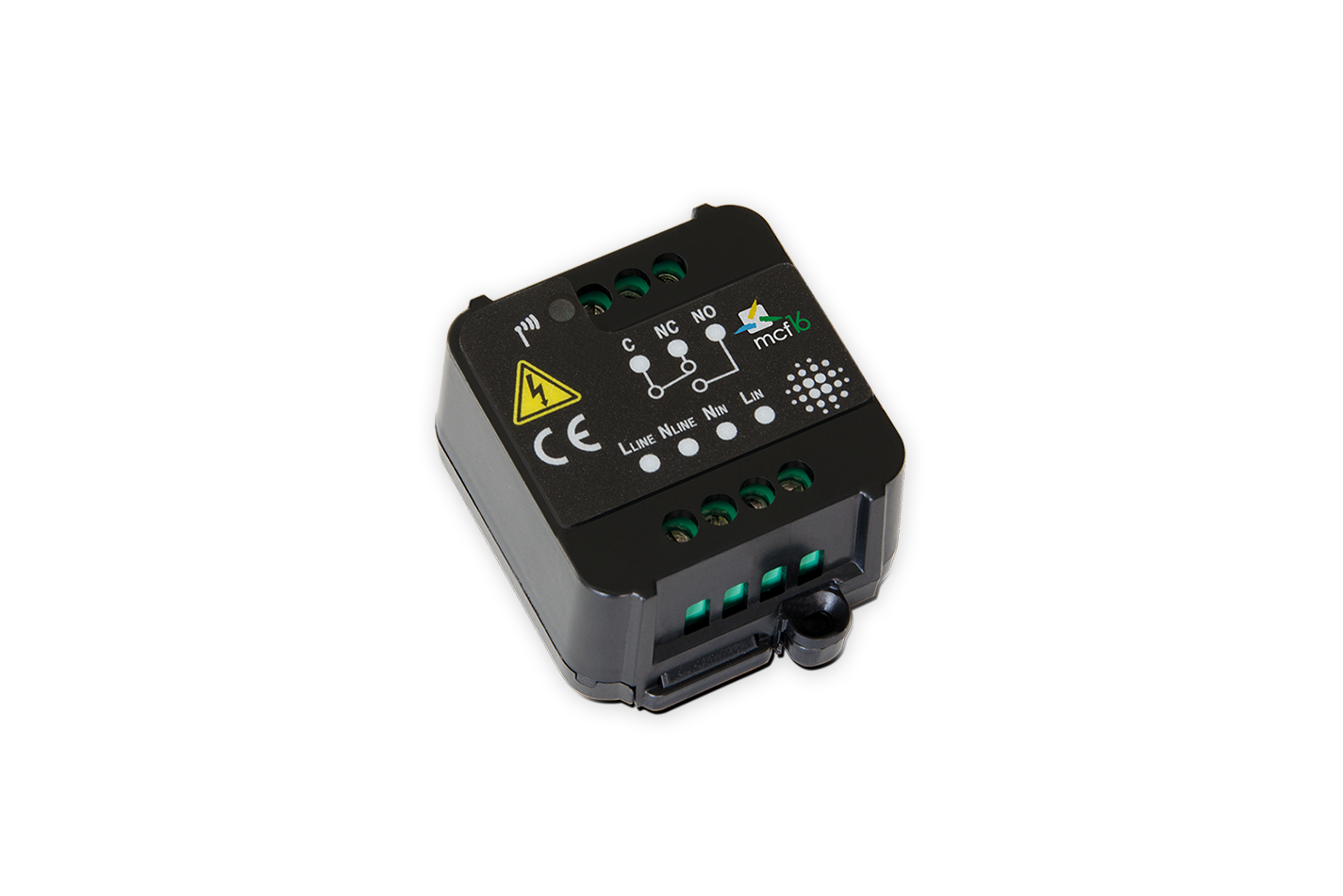

LoRa MCF88 LoRaWAN wireless actuator
This device can transmits the status of its input and control the output through the LoRaWAN® network. Can be used for industrial process control and home automation, water treatment, agriculture irrigation and similar applications.
Technical data
CPU Cortex M0+
RTC
EEProm 32KB
Flash 64KB
Encryption AES 128 bit
Class C LoRaWAN® stack EU868, AS923
1 opto-isolated input, 230Vac
1 relay output with COM, NO, NC contacts
8Amp@230Vac
NFC for IoT node setup ad FW upgrade
Power supply from AC line
Storage temperature range -20 + 80C°
Working temperature range -10 + 70C°
Dimension: 58x44x25mm
