Mimosa A5c 5GHz Punkt zu Multi Punkt Sector Acces Point 4x4:4 MIMO
Abverkaufsartikel
Artikel-Nr.:
142299
Herstellernummer:
100-00037-01
Intrastat ID:
85291030
Ursprungsland:
Vereinigte Staaten
Garantie:
12 Monate
Gewicht:
1,750 KG
Produktinformationen "Mimosa A5c 5GHz Punkt zu Multi Punkt Sector Acces Point 4x4:4 MIMO"

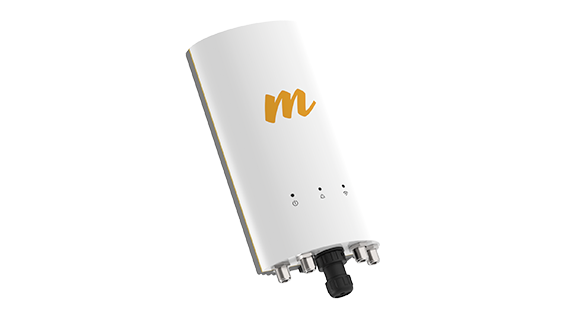

Mimosa A5c 5GHz Punkt zu Multi Punkt Sector Acces Point 4x4:4 MIMO
Performance
Max Throughput Up to 1.0 Gbps IP (1.7 Gbps PHY)
Client Capacity 100 Clients
Wireless Protocols Wi-Fi Interop
Mimosa GPS Sync (TDMA)**
Radio
MIMO & Modulation 4x4:4 MIMO OFDM up to 256QAM
Bandwidth* 20/40/80 MHz channels
Tunable in 5 MHz increments for GPS Sync
Tunable to standard WiFi Channels for WiFi Interop
Frequency Range GPS Sync: 4900-6200 MHz
WiFi Interop: 5170-5835 MHz
Restricted by country of operation
(*new* US/FCC 5600-5650 support)
Max Output Power 30 dBm
Sensitivity ( MCS 0 ) -87 dBm @ 80 MHz
-90 dBm @ 40 MHz
-93 dBm @ 20 MHz
Mimosa N5-360 4 Port 360º Beamforming Antenna für A5 Acces Points

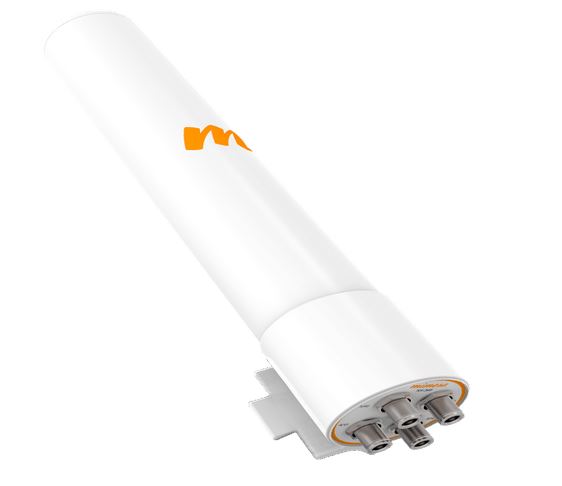

Mimosa N5-360 4 Port 360º Beamforming Antenna für A5 Acces Points
Introducing the industry’s first 4-port, beamforming, 360º antenna specifically designed exclusively for Mimosa’s A5c access point. The N5-360 antenna’s unique design incorporates quad-180º overlapping antenna polarizations, doubling the coverage of Mimosa MicroPoP deployments with 3 dB of beamforming gain. The N5-360 boosts throughput by providing balanced dual-stream coverage over 360º of azimuth. Without sacrificing performance, the N5-360 operates over a wide frequency range, from 4.9 to 6.4 GHz, supporting licensed public safety bands and other expanded frequencies, where permitted by region.
OPTIMIZED FOR 360º THROUGHPUT
Enhanced C5 and C5c subscriber speeds through new, balanced, multi-stream technology.
Gain 15 dBi
Frequency 4.9-6.4 GHz
Azimuth Beamwidth 360º via 4 overlapping 180º sectors
Artikel-Nr.:
153437
Herstellernummer:
100-00075
Bestand:
0x
Nicht Lagernd
