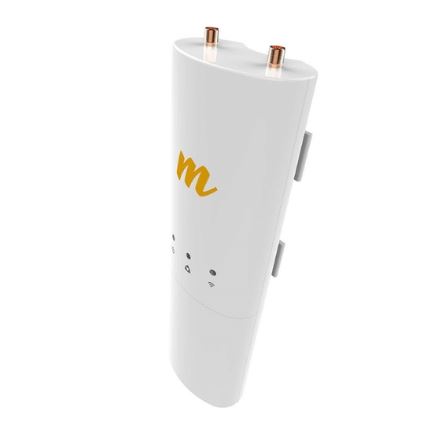

Mimosa C5c 5GHz Punkt zu Multi Punkt Acces Point 2x2:2 MIMO

Mimosa

Abverkaufsartikel

Artikel-Nr.: 153423

Herstellernummer: 100-00070

Intrastat ID: 85291030

Ursprungsland: Vereinigte Staaten

Gewicht: 0,746 KG

Produktinformationen "Mimosa C5c 5GHz Punkt zu Multi Punkt Acces Point 2x2:2 MIMO"

Mimosa C5c 5GHz Punkt zu Multi Punkt Acces Point 2x2:2 MIMO C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 500+ Mbps of TCP throughput. Max Throughput 500+ Mbps IP (866 Mbps PHY) Long-range point-to-point (PTP) backhaul Rural point-to-multipoint (PTMP) GigaPoP Suburban MicroPoP when foliage exists Connect to virtually any dual polarization antenna to custom-engineer longer distance client links. The C5c supports 2x2:2 MIMO dual connector RP-SMA for easy cabled antenna connectivity and can be mounted to any pole via hose clamps, or easily clipped onto antenna supporting compatible clip-on mounting bracket systems.

RoHS / REACH Deutsch EU RoHS und REACH Erklärung

RoHS / REACH English EU RoHS and REACH Declaration

RF Elements Symmetrical Horn Antenna 40° Sector, SH-TP-5-40

Antenna Connection TwistPort™ - Quick Locking Waveguide Port Antenna Type Horn Materials UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel Enviromental IP55 Pole Mounting Diameter 15-86 mm Temperature -30°C to +55°C (-22°F to +131°F) Wind Survival 160 km/hour Mechanical Tilt ± 25° Gain Max 16.2 dBi Gain Typical 16 dBi Azimuth Beam Width -3 dB H 27° / V 27° Elevation Beam Width -3 dB H 27° / V 27° Azimuth Beam Width -6 dB H 40° / V 40° Elevation Beam Width -6 dB H 40° / V 40° Front-to-Back Ratio 40 dB

Artikel-Nr.: 130241

Herstellernummer: SH-TP-5-40

RF Elements Symmetrical Horn Antenna 50° Sector, SH-TP-5-50

Antenna Connection TwistPort™ - Quick Locking Waveguide Port Antenna Type Horn Materials UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel Enviromental IP55 Pole Mounting Diameter 15-86 mm Temperature -30°C to +55°C (-22°F to +131°F) Wind Survival 160 km/hour Mechanical Tilt ± 25° Gain Max 14.3 dBi Gain Typical 14.1 dBi Azimuth Beam Width -3 dB H 33° / V 33° Elevation Beam Width -3 dB H 33° / V 33° Azimuth Beam Width -6 dB H 50° / V 50° Elevation Beam Width -6 dB H 50° / V 50° Front-to-Back Ratio 53 dB

Artikel-Nr.: 130255

Herstellernummer: SH-TP-5-50

RF Elements Symmetrical Horn Antenna 70° Sector, SH-TP-5-70

Antenna Connection TwistPort™ - Quick Locking Waveguide Port Antenna Type Horn Materials UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel Enviromental IP55 Pole Mounting Diameter 15-86 mm Temperature -30°C to +55°C (-22°F to +131°F) Wind Survival 160 km/hour Mechanical Tilt ± 25° Gain Max 11.5 dBi Gain Typical 11.4 dBi Azimuth Beam Width -3 dB H 50° / V 50° Elevation Beam Width -3 dB H 50° / V 50° Azimuth Beam Width -6 dB H 70° / V 70° Elevation Beam Width -6 dB H 70° / V 70° Front-to-Back Ratio 29 dB

Artikel-Nr.: 130290

Herstellernummer: SH-TP-5-70

RF Elements Symmetrical Horn Antenna 80° Sector, SH-TP-5-80

Antenna Connection TwistPort™ - Quick Locking Waveguide Port Antenna Type Horn Materials UV Resistant ABS Plastic, Polycarbonate, Polypropylene, Aluminium, Stainless Steel Enviromental IP55 Pole Mounting Diameter 15-86 mm Temperature -30°C to +55°C (-22°F to +131°F) Wind Survival 160 km/hour Mechanical Tilt ± 25° Gain Max 10.4 dBi Gain Typical 10.3 dBi Azimuth Beam Width -3 dB H 60° / V 60° Elevation Beam Width -3 dB H 60° / V 60° Azimuth Beam Width -6 dB H 81° / V 81° Elevation Beam Width -6 dB H 81° / V 81° Front-to-Back Ratio 29 dB

Artikel-Nr.: 130292

Herstellernummer: SH-TP-5-80
