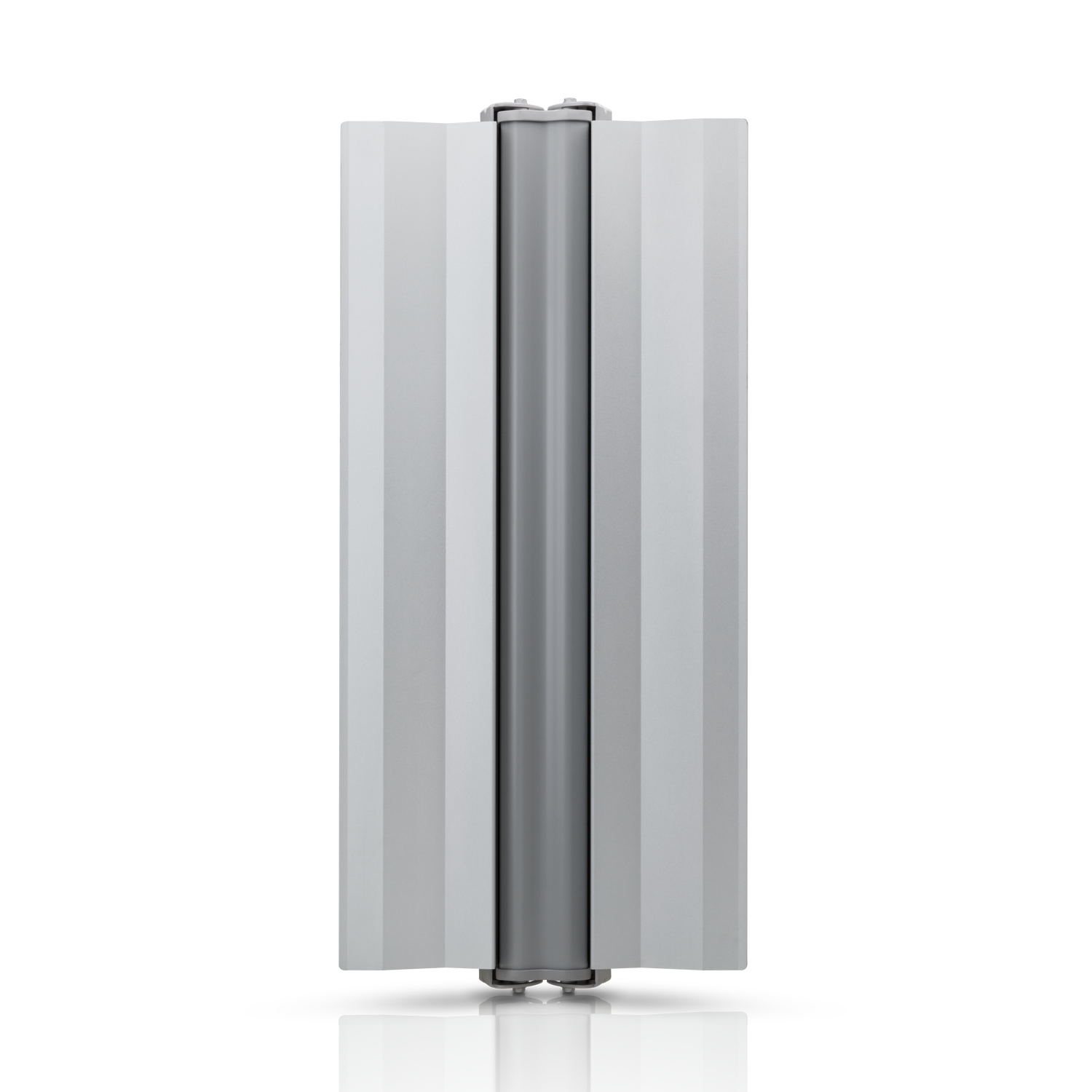

Ubiquiti 2GHz Variable Beam Base Station, 60-120deg, Titanium, w/Rocket kit
Artikel-Nr.:
109066
EAN:
810354021008
Herstellernummer:
AM-V2G-Ti
Intrastat ID:
85176200
Ursprungsland:
Taiwan
Garantie:
12 Monate
Gewicht:
9,000 KG
Produktinformationen "Ubiquiti 2GHz Variable Beam Base Station, 60-120deg, Titanium, w/Rocket kit"
Individuell konfigurierbare 2,4-GHz-Antenne für jeden Einsatz.
Einstellbare Strahlbreitenkonfiguration
Erweiterte HF-Isolierung
Kompatibel mit Rocket M2
Technische Spezifikationen
| AM-V2G-Ti | |
|---|---|
| Maße | 773 x 372 x 120 mm (30,43 x 14,65 x 4,72") |
| Gewicht | Mit Halterung: 6,4 kg (14,11 lb) |
| Frequenz | 2,3-2,6 GHz |
| Strahlbreitenwinkel | 60°/ 90°/ 120° |
| Verstärkung (abhängig von der Strahlbreite) |
17 dBi bei 60° 16 dBi bei 90° 15 dBi bei 120° |
| Elektrische Abwärtsneigung | 4° |
| Windüberlebensfähigkeit | 200 km/h (125 mph) |
| Windbelastung | 640,5 N bei 200 km/h (144 lbf bei 125 mph) |
| Polarisation | Dual-Linear |
| Cross-Pol-Isolierung | 25 dB typisch |
| F/B-Verhältnis | 30 dB typisch |
| Max. VSWR | 1,5:1 |
| HF-Anschlüsse | 2 RP-SMA-Anschlüsse (wetterfest) |
| Kompatible Radios | RocketM2 Titan RocketM2 |
| Montage | Masthalterung (Kit im Lieferumfang enthalten) |
| ETSI-Spezifikation | EN 302 326 DN2 |
| Zertifizierungen | CE, FCC, IC |
