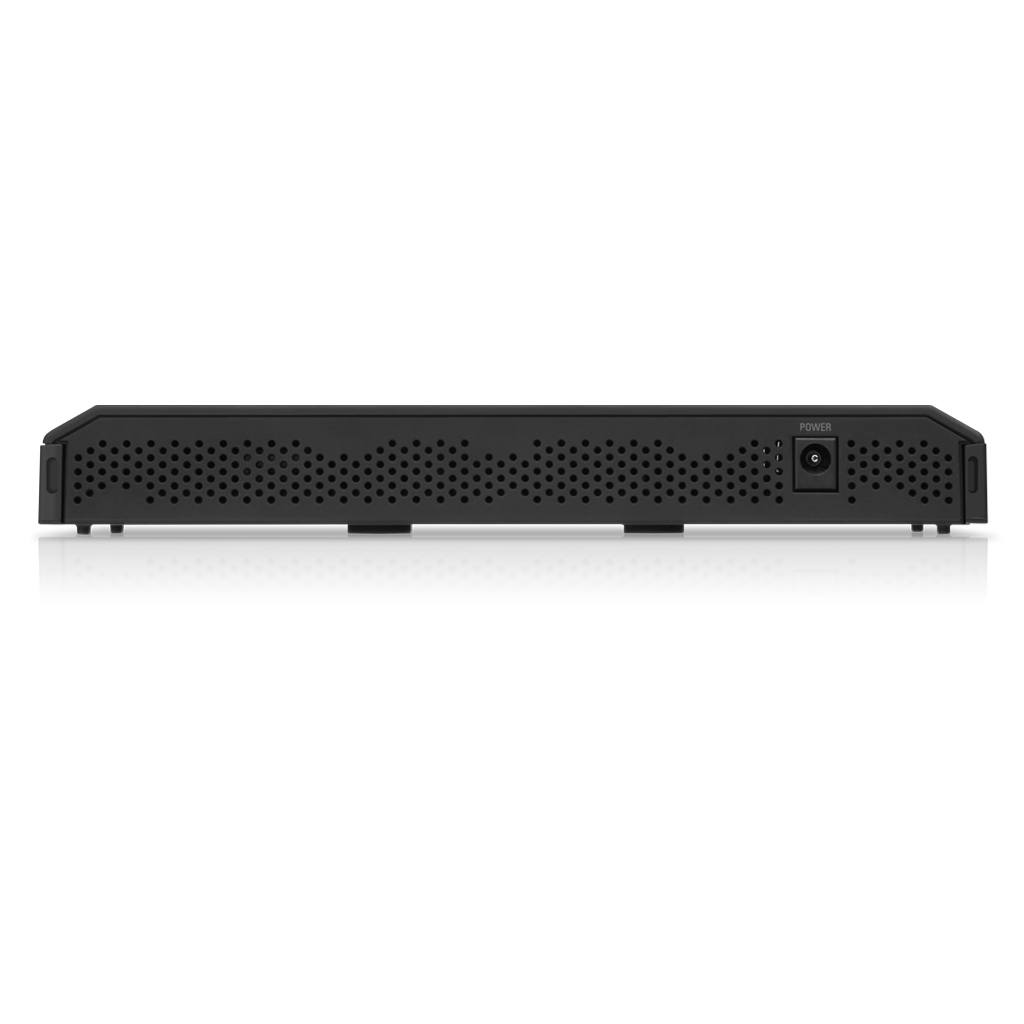

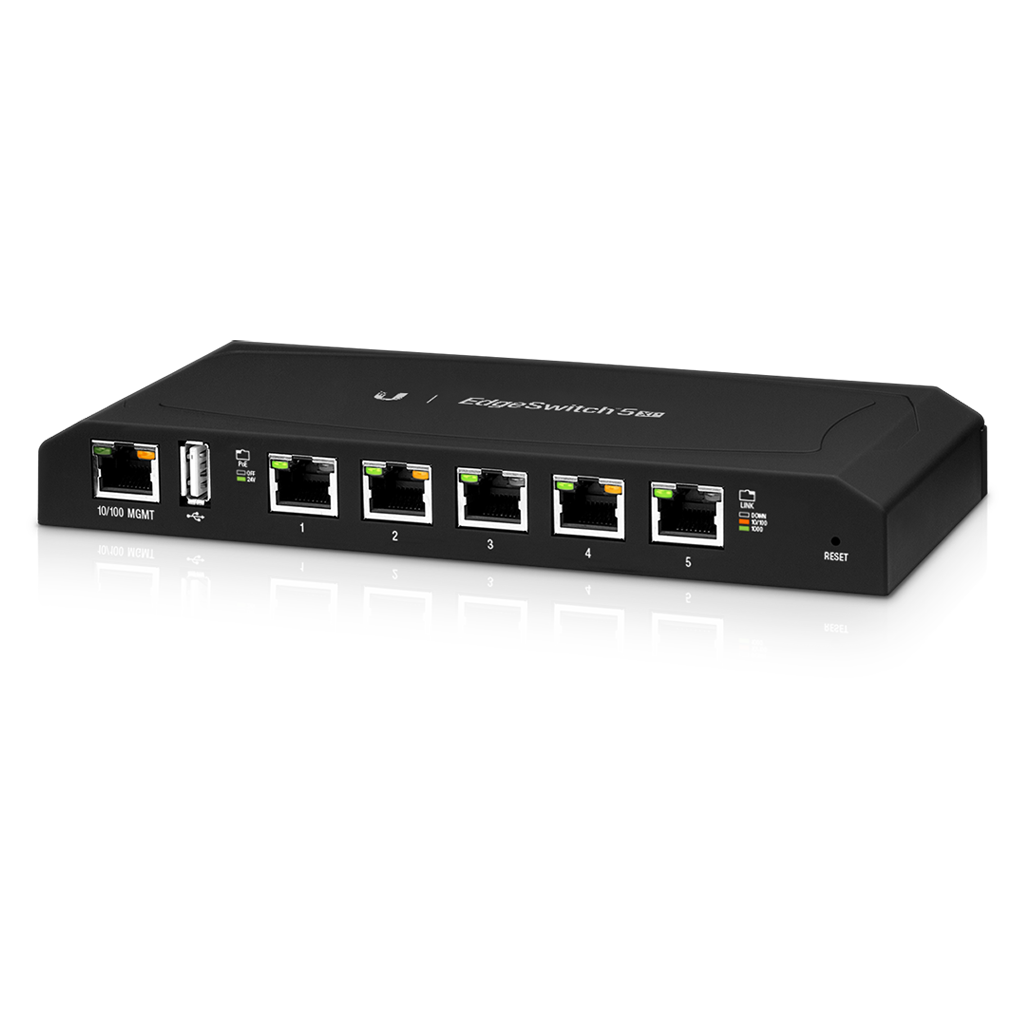

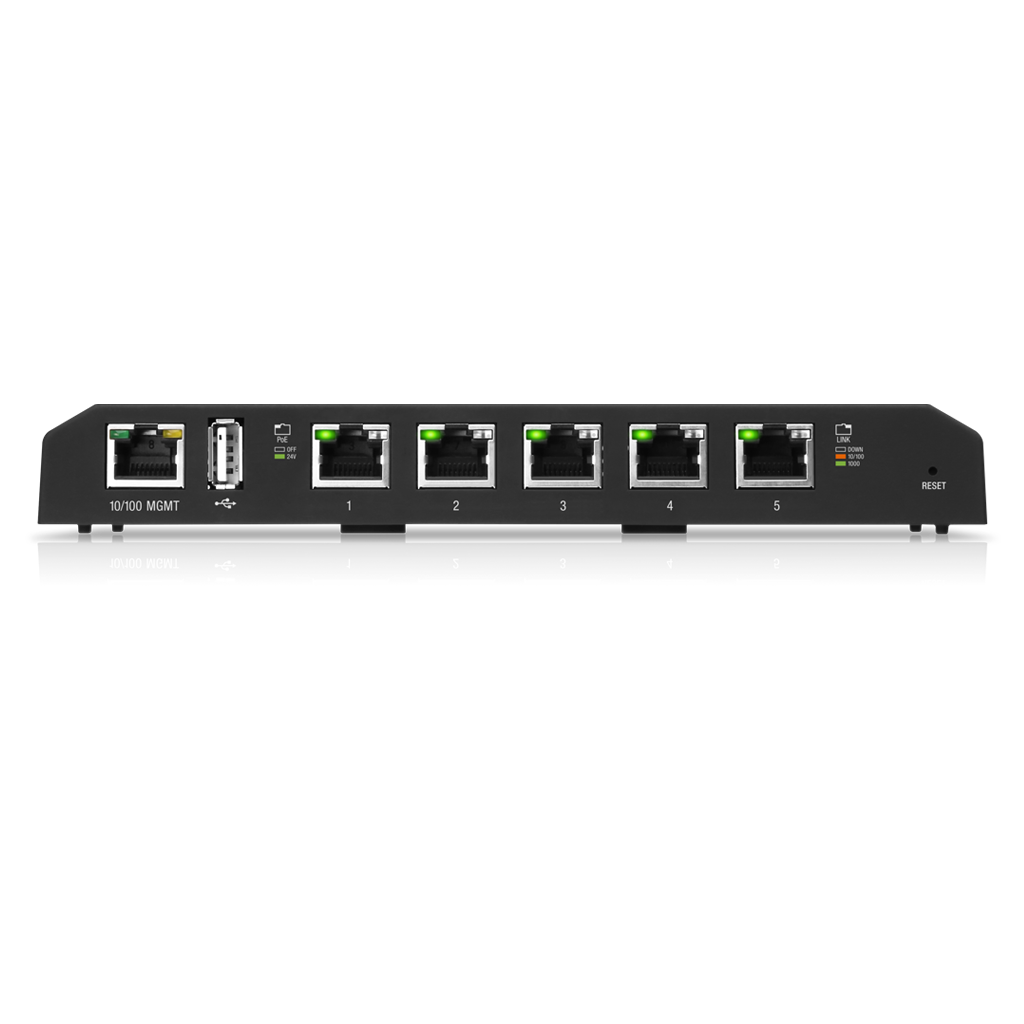

Ubiquiti EdgeSwitch 5 / Pro / 5 Gigabit RJ45 Ports / 24V Passive POE / ES-5XP
UVP Netto: 69,73 €
Voraussichtlich wieder verfügbar ab: kein Liefertermin bekannt
Produktinformationen "Ubiquiti EdgeSwitch 5 / Pro / 5 Gigabit RJ45 Ports / 24V Passive POE / ES-5XP"
(5) GbE RJ45-Ports
Passiver 24-V-PoE-Passthrough
An der Wand montierbar
| Mechanisch | |
|---|---|
| Maße | 197 x 87,5 x 27,3 mm (7,76 x 7,28 x 1,61") |
| Gewicht | 250 g (8,82 Unzen) |
| Hardware | |
| Verwaltungsschnittstelle | (1) 10/100-Ethernet-Port |
| Netzwerkschnittstelle | (5) 10/100/1000 Ethernet-Ports |
| Leistungsaufnahme | 24 VDC, 2,5 A Netzteil (im Lieferumfang enthalten) |
| Max. Energieverbrauch | 60W |
| PoE-Ausgangsspannungsbereich | 22-24 VDC |
| Max. PoE-Wattleistung pro Datenport | 11,5 W |
| ESD-Bewertung | ±24 kV Luft/Kontakt |
| PoE-Methode | Passiv |
| Taste | Zurücksetzen |
| USB-Anschluss | 2.0 Typ A (für zukünftige Verwendung reserviert) |
| Prozessor | MIPS 24K, 400 MHz |
| Systemspeicher | 64 MB |
| Codespeicherung | 8 MB |
| PoE-konfigurierbare Port- Management-Port- Datenports |
N/A Aus/24V |
| LEDs pro Port -Management-Port -Daten-Ports |
Power/Link PoE, Geschwindigkeit/Link/Aktivität |
| Netzwerkschnittstellen, Verwaltungsport, Datenports |
(1) 10/100 Ethernet-Port (5) 10/100/1000 Ethernet-Ports |
| Betriebsfeuchtigkeit | 90 % nicht kondensierend |
| Betriebstemperatur | -25 bis 55 °C (-13 bis 131 °F) |
| Zertifizierungen | CE, FCC, IC |
.Quickly and Easily test PoE existence of Ethernet network, .Compliant with IEEE 802.3at/af PoE Standard; .RJ45 connector, simply plug in the cable; .Compact design specially tailored for system integrator and installers. 1. When the PoE Type A lighting, it means endspan (12/36) is providing power, and it?fs 802.3af standard, the output power is 15.4W (PD Max 12.95W) 2. When the PoE Type A & AT Type A are lighting, it means endspan (12/36) is providing power, and it?fs 802.3at standard, the output power is 30.0W (PD Max 25.50W) 3. When the PoE Type B lighting, it means midspan (45/78) is providing power, and it?fs 802.3af standard, the output power is 15.4W (PD Max 12.95W) 4. When the PoE Type B & AT Type B are lighting, it means midspan (45/78) is providing power, and it?fs 802.3at standard, the output power is 30.0W (PD Max 25.50W) 5. When the PoE Type A & PoE Type B are lighting, it means midspan & endspan (4 pairs) is providing power, and it?fs 802.3af standard, the output power is 30.0W 6. When the 4 Leds are lighting, it means midspan & endspan (4 pairs) is providing power, and it?fs 802.3at standard, the output power is 60.0W 7. When there?fs No Leds lighting, it means no PoE.
