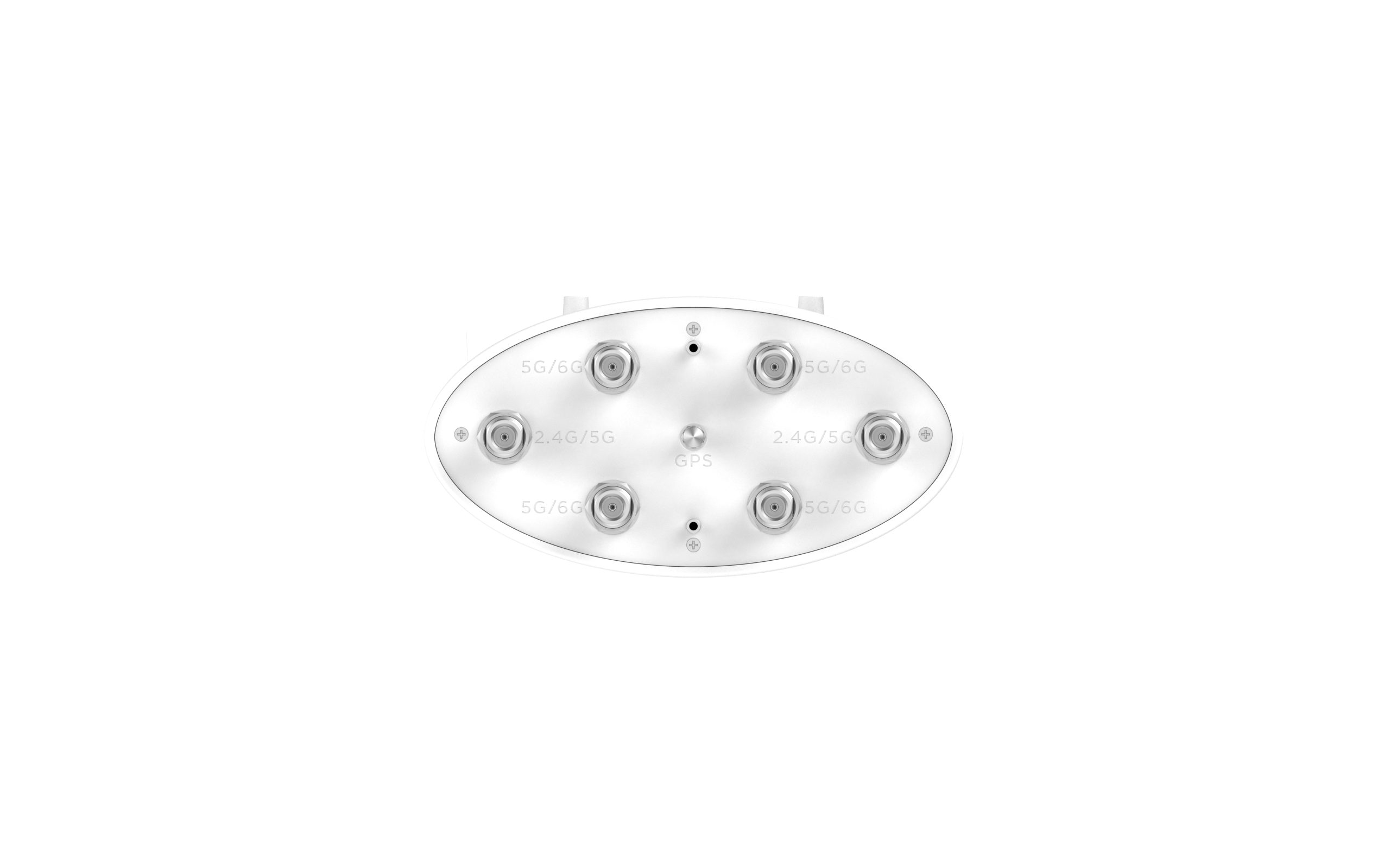

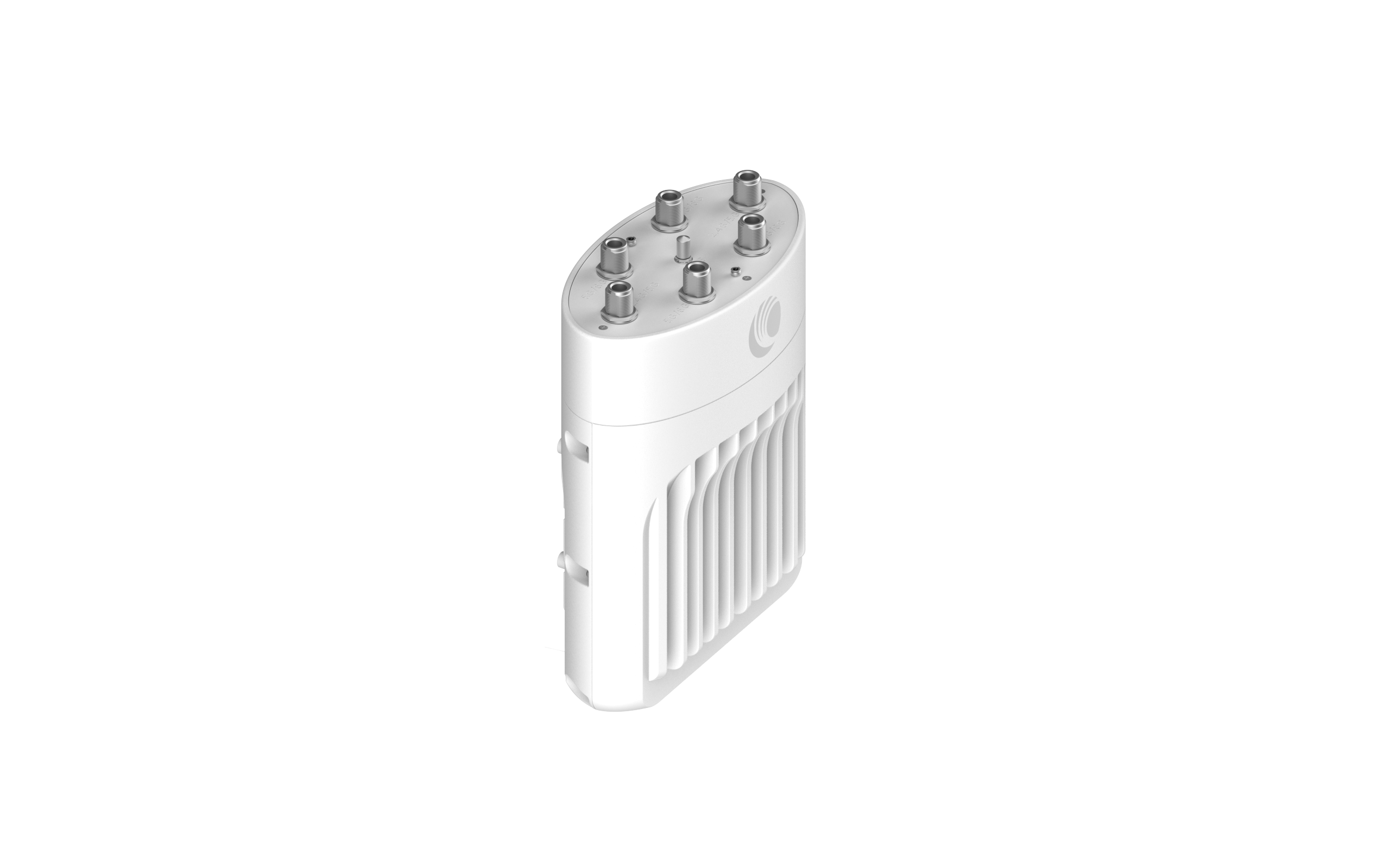

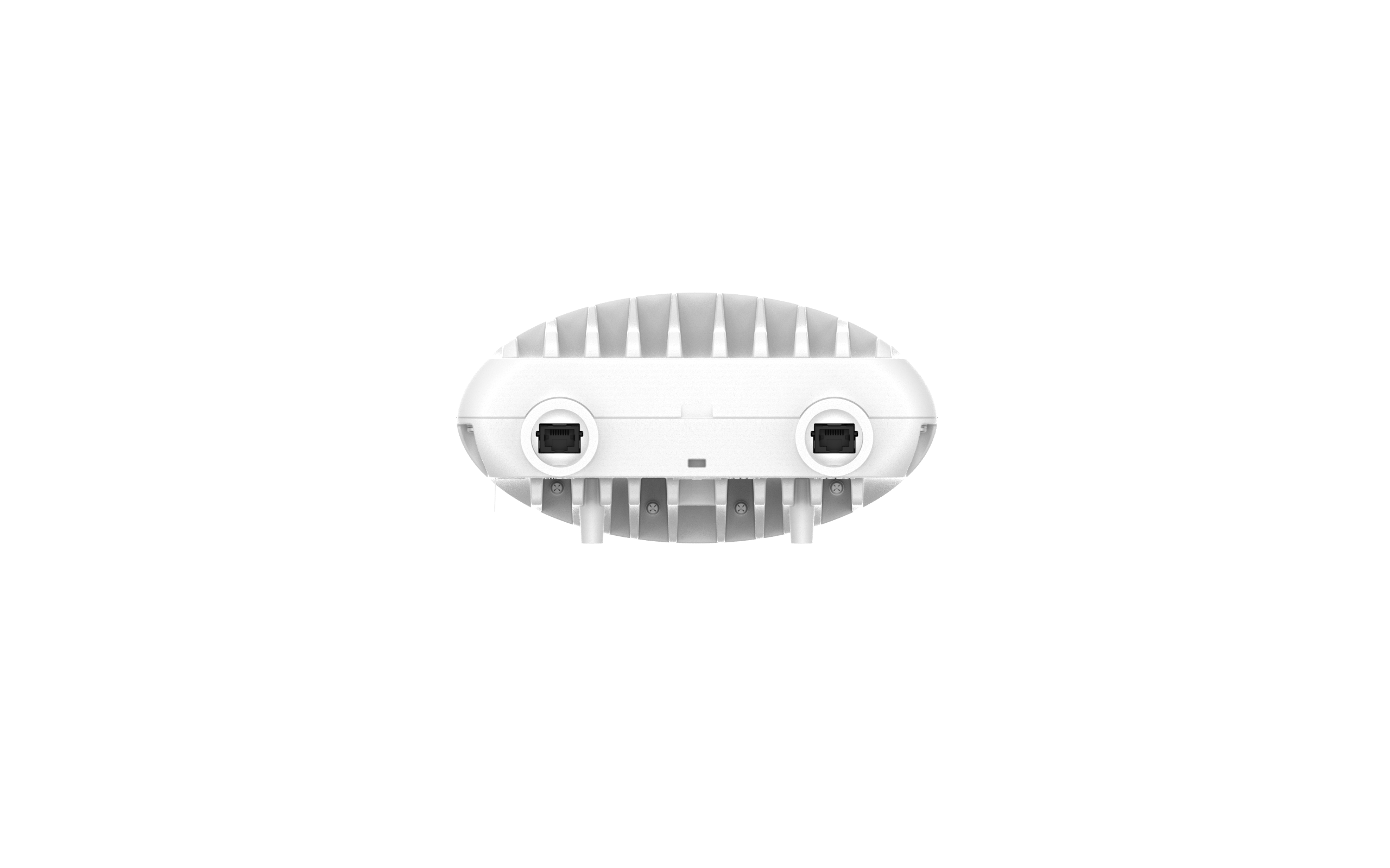

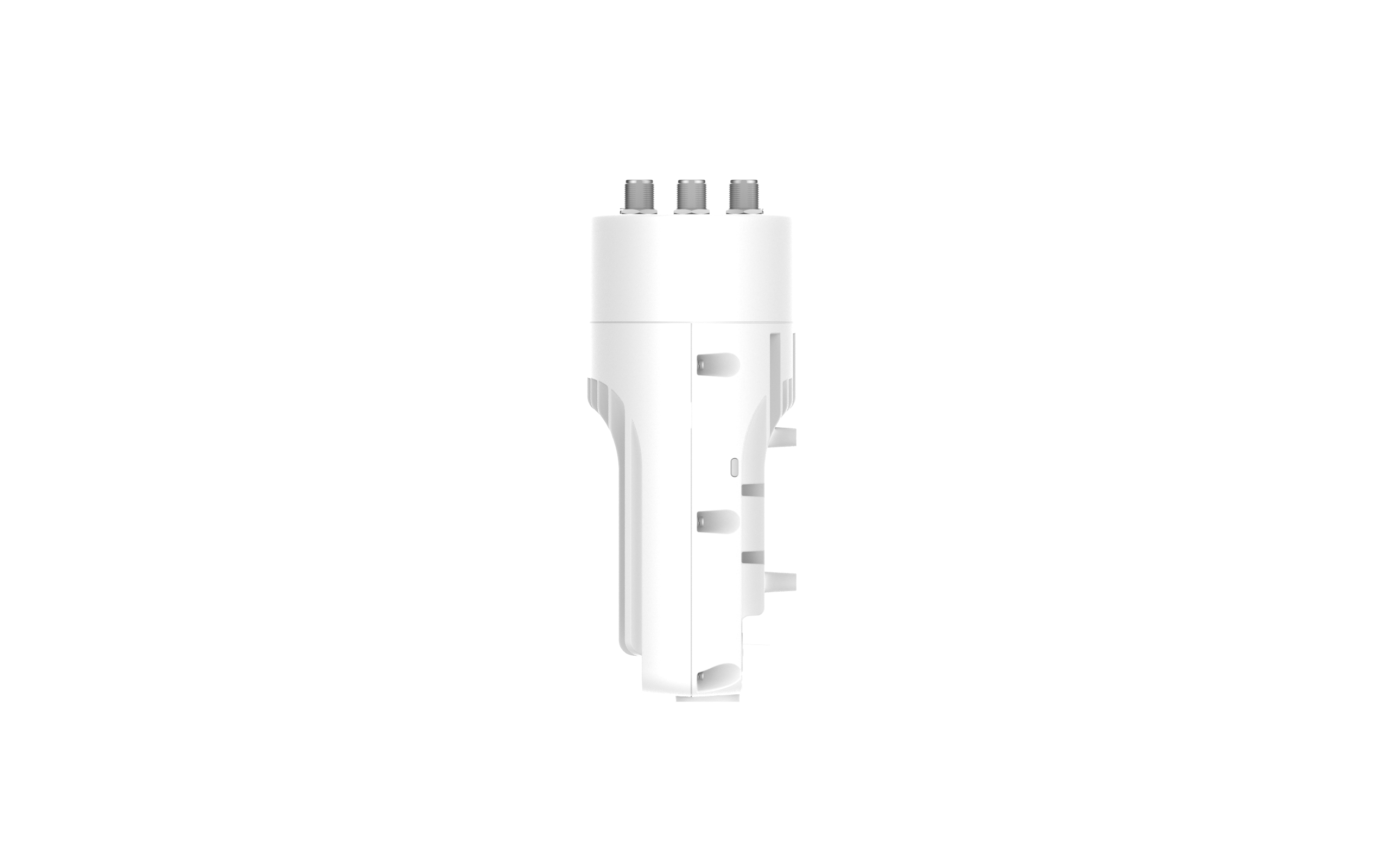

XE3-4TN Wi-Fi 6 Outdoor Access Point

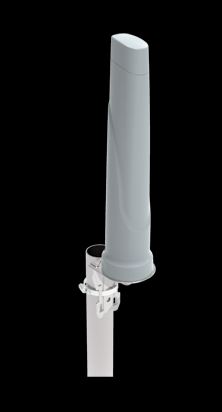

Omnidirektionale Dualband-Wi-Fi-Antenne · Frequenzgang: 2400 - 6000 MHz · Max.Gewinn: 5,5 dBi · M2M & IoT Anwendungen · IP69K, IK10 · 2x N-Type- Female mit 30 cm Coax Kabel

Schwenkbare Dualband Wi-Fi-6E SISO-Antenne zur Router-/Gerätemontage · Frequenzgang: 2400 - 7200 MHz · SISO · Max.Gewinn: 4 dBi · RP-SMA (m)

Highlights:Vertical Polarizierte Sector Antenne im 2400 - 2500 Ghz ISM BandAbstrahlcharakteristik Directional = RichtantenneBezeichnung HG2414SP-120Abstrahlwinkel 120° Grad Horizontal und 15° VertikalAnschluss N-Type BuchseMontage MastemontageGewicht 2,0kgWindlast 210 km/hElectrical Specifications     Frequency 2400-2500 MHz Gain 147 dBi Polarization Vertical Horizontal Beam Width 120° Vertical Beam Width 15° Impedance 50 Ohm VSWR <1.5:1avg. Front to Back Ratio >23 dB Max. Input Power 300Watts Lightning Protection DC Ground Connector Intergral N-Female   Mechanical Specifications   Weight 4.4 lbs (2 kg) Dimensions 20 x 7 x 3.5 inch (500 x 180 x 90mm) Radome Material UV-inhibited Plastic Mounting 2 inch  (50 mm) dia. Mast max. Operating Temperature -40° C to 85° C (-40°F to 185°F) Rated WInd >130 MPH (210 Km/h)

Highlights:3x Vertical Polarizierte Sector Antenne im 2400 - 2500 Ghz ISM BandAbstrahlcharakteristik Directional = RichtantenneAbstrahlwinkel 3x 120° Grad Horizontal und 3x 15° VertikalAnschluss N-Type Buchse incl. Signal-SplitterMastemontageGewicht 6,3kg    Specifications  Frequency 2400 - 2500 MHz Antenna Gain14 dBi*PolarizationVertical Horizontal Beam Width(Individual antenna)120° Vertical Beam Width(Individual antenna)15°Lightning Protection DC GroundPower Rating (Single Fed) 25 Watts Antenna Radome Material UV-inhibited PlasticMounting System Material Stainless SteelMounting (Round Mast) 1¼" to 2" (31.7 to 50.8 mm) dia.Mounting (Square Mast/Beam) 3¼" (82.5 mm) square max.Dimensions**(O.D. Panels Fully Retracted)20" (508 mm) x 17" (432 mm) O.D.** Weight14 lbs. (6.3 kg)RoHS Compliant Yes

Flat-Patch Antenne im 2400 - 2500 Ghz ISM Band & 5400 - 5800 Ghz ISM Band Gewinn: 6dbi bei 2,4 Ghz & 9dbi bei 5 Ghz Abstrahlcharakteristik: Directional = Richtantenne Abstrahlwinkel: 60° Grad Horizontal und 60° Vertikal Anschluss: N-Type Buchse Montage: Mastmontage & Wandmontage Gehäuse: IP67 Schutzklasse Windlast: ca. 160km/h

Electromagnetical Properties:  Frequency range:5150MHz ? 5850MHzVSWR:Nominal 1.5:1, Maximal 2:1Nominal Impedance:50 ohmGain:10 dBiPolarization:Vertical or HorizontalAzimuth Beamwidth (3dB):Nominal 20°Elevation Beamwidth (3dB):Nominal 20°Maximum Power:10 WMechanical Properties: Enclosure:185mm x 185mm x 45mmConnectors:N femaleIP Protection:IP 67Temperature range:from -40 °C to 80 °CWind Speed:160Km/h

Electromagnetical Properties:  Frequency range:2400MHz - 2500MHz5150MHz - 5850MHzVSWR:Nominal 1.5:1, Maximal 2:1Nominal Impedance:50 ohmGain:4 dBi @ 2,45GHz7 dBi @ 5,8GHzPolarization:Vertical or HorizontalAzimuth Beamwidth (3dB):Nominal 25° @ 2,45GHzNominal 15° @ 5,8GHzElevation Beamwidth (3dB):Nominal 35° @ 2,45GHzNominal 25° @ 5,8GHzMaximum Power:10 WMechanical Properties: Enclosure:185mm x 185mm x 45mmConnectors:N femaleIP Protection:IP 67Temperature range:from -40 °C to 80 °CWind Speed:160Km/h

Hochwertige Omni-Directional Antenne im 5,8 Ghz ISM Band Dual-Polarisierte MIMO Antenne Abstrahlcharakteristik: Omnidirectional = Rundstrahl Bezeichnung: HG5158DP-13U Abstrahlwinkel: 360° Grad Horizontal und 7° Vertikal Anschluss: N-Type Female 2x da MIMO Montage = Mastemontage Mehr Details siehe Datenblatt !!
