ALLNET 4duino 3D Drucker Steuerungs Board
UVP Netto: 53,35 €
Bestand:
6x
Sofort verfügbar, Lieferzeit: 1-2 Tage
Artikel-Nr.:
148459
EAN:
4038816070487
Herstellernummer:
ALLOY2324
Intrastat ID:
85176200
Ursprungsland:
Volksrepublik China
Garantie:
12 Monate
Gewicht:
0,001 KG
Produktinformationen "ALLNET 4duino 3D Drucker Steuerungs Board"
Product Model: OKY3905

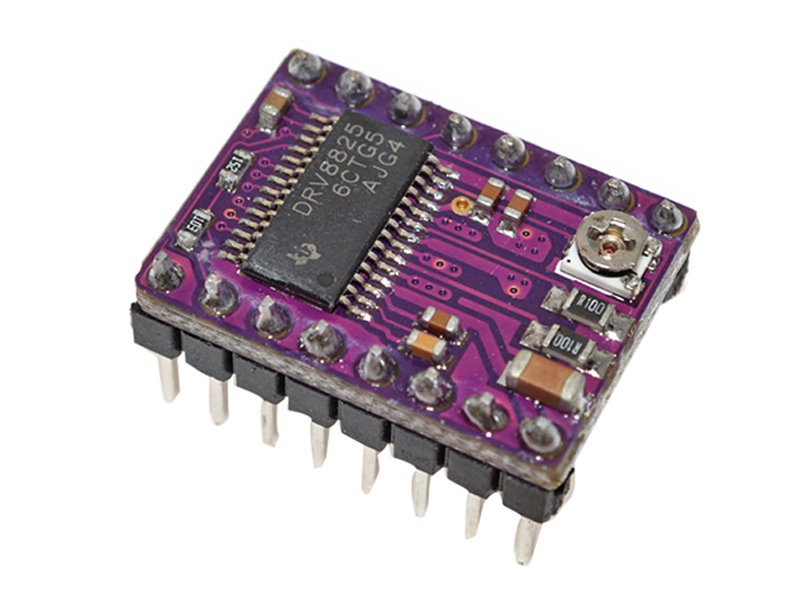

3D Printer Stepper Motor Driver Module DRV8825 Stepper Motor Driver Controller
Product Description
Simple step and direction control interface.
Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step.
Can interface directly with 3.3 V and 5 V systems.
Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout.
Short-to-ground and shorted-load protection.
4-layer, 2 oz copper PCB for improved heat dissipation.

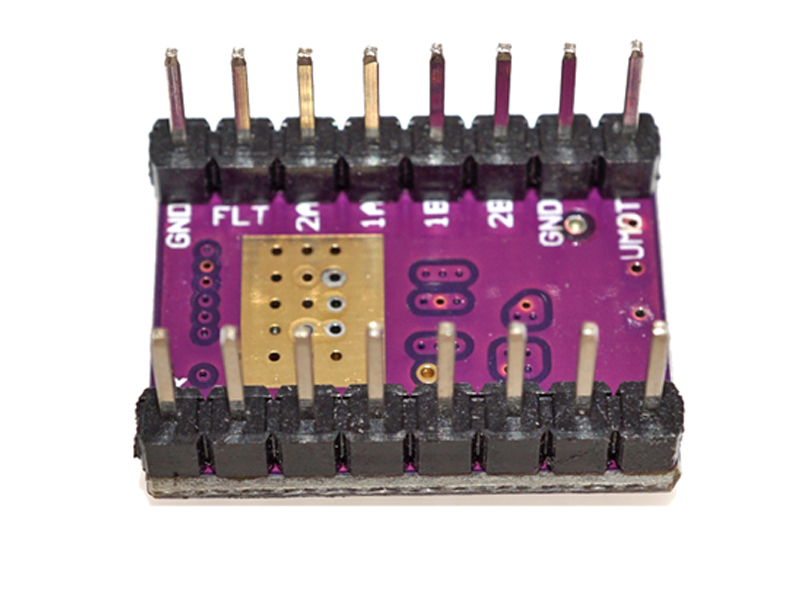

Exposed solderable ground pad below the driver IC on the bottom of the PCB.
Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects.
