ALLNET 4duino 9 Achsen Inertial Navigations Modul
UVP Netto: 24,11 €
Bestand:
1x
Sofort verfügbar, Lieferzeit: 1-2 Tage
Artikel-Nr.:
147989
EAN:
4038816069825
Herstellernummer:
ALLOY3238
Intrastat ID:
85176200
Ursprungsland:
Volksrepublik China
Garantie:
12 Monate
Gewicht:
0,003 KG
Produktinformationen "ALLNET 4duino 9 Achsen Inertial Navigations Modul"

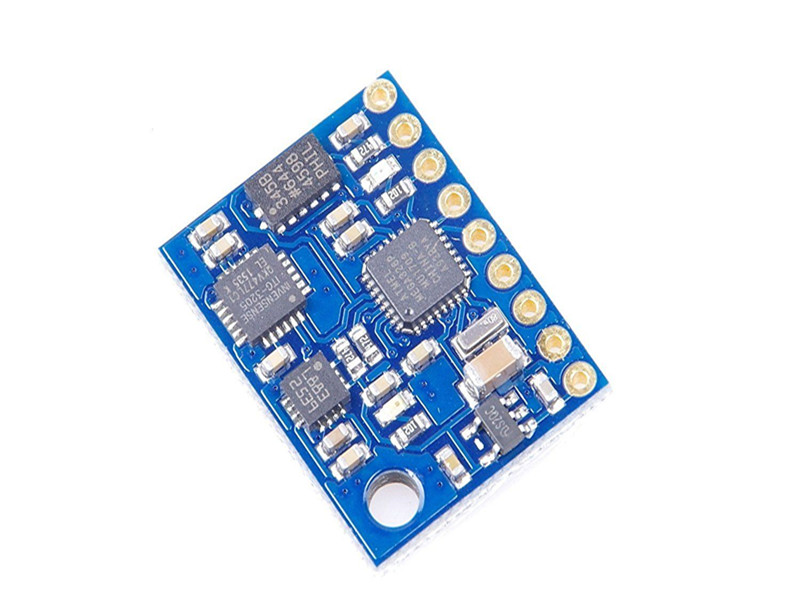

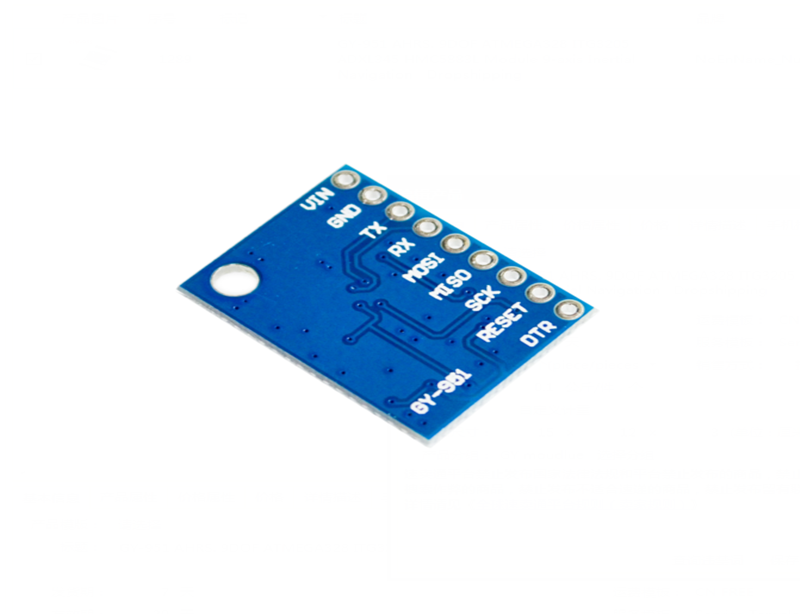

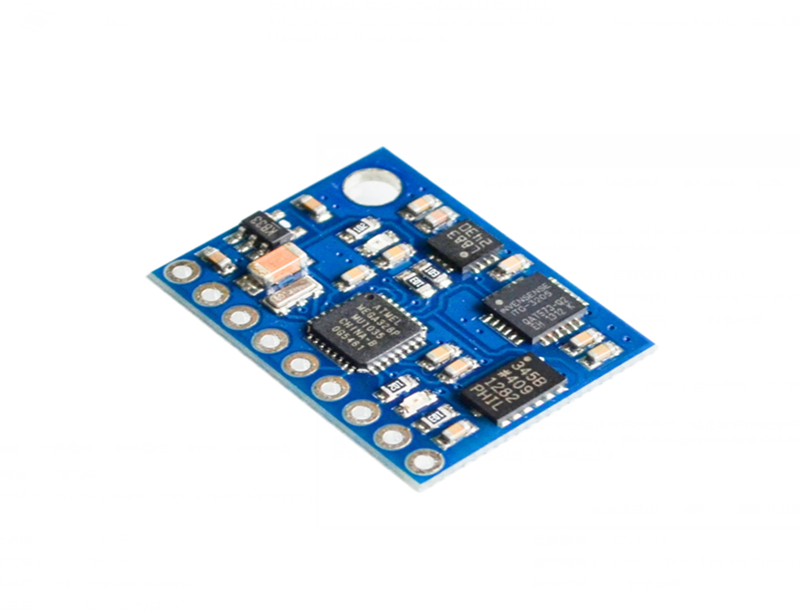

ALLNET 4duino 9 Achsen Inertial Navigations Kompass Modul OKY3238
GY-951 9DOF ATMEGA328 ITG3205 ADXL345 HMC5883L 9-axis Inertial Navigation Compass Module
Product Description
100% Brand New & High Quality
9-axis module (three-axis gyroscope + triaxial accelerometer + triaxial magnetic field)
Model: GY-951
Using a Chip: Atmega328 + ITG3205 + ADXL345 + HMC5883L
Power supply: 3-5v
Communication: serial communication protocol
Size: 2.3cm * 1.7cm
Direct Data: YAW ROLL PITCH
Heading angle (YAW) ± 180 °
Roll angle (ROLL) ± 180 °
Pitch angle (PITCH) ± 180 °
Serial port baud rate: 57600
