ALLNET 4duino Sensor 3-Achsen Gyroskop
UVP Netto: 8,51 €
Bestand:
8x
Sofort verfügbar, Lieferzeit: 1-2 Tage
Artikel-Nr.:
111919
EAN:
4038816025647
Herstellernummer:
ALL-B-57B125
Intrastat ID:
85176200
Ursprungsland:
Volksrepublik China
Garantie:
12 Monate
Gewicht:
0,010 KG
Produktinformationen "ALLNET 4duino Sensor 3-Achsen Gyroskop"

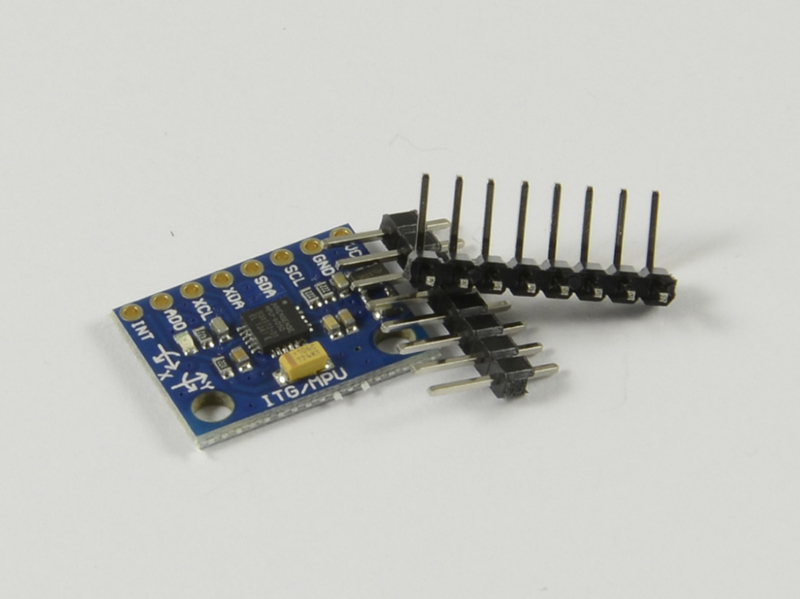

4duino MPU-6050 Module 3 Axis analog gyro sensors
B-57 (B125)
The MPU6050 contains both a 3-Axis Gyroscope and a 3-Axis accelerometer allowing measurements of both independently, but all based around the same axes, thus eliminating the problems of cross-axis errors when using separate devices. Specification: Accelerometer ranges: ±2, ±4, ±8, ±16g Gyroscope ranges: ± 250, 500, 1000, 2000 °/s Voltage range: 3.3V - 5V (the module include a low drop-out voltage regulator) Arduino interface article >HERE< This simple module contains everything required to interface to the Arduino and other controllers via I2C (use the Wire Arduino library) and give motion sensing information for 3 axes - X, Y and Z Includes both straight and 90 degree header pins. Download library and example Arduino code from >HERE<
