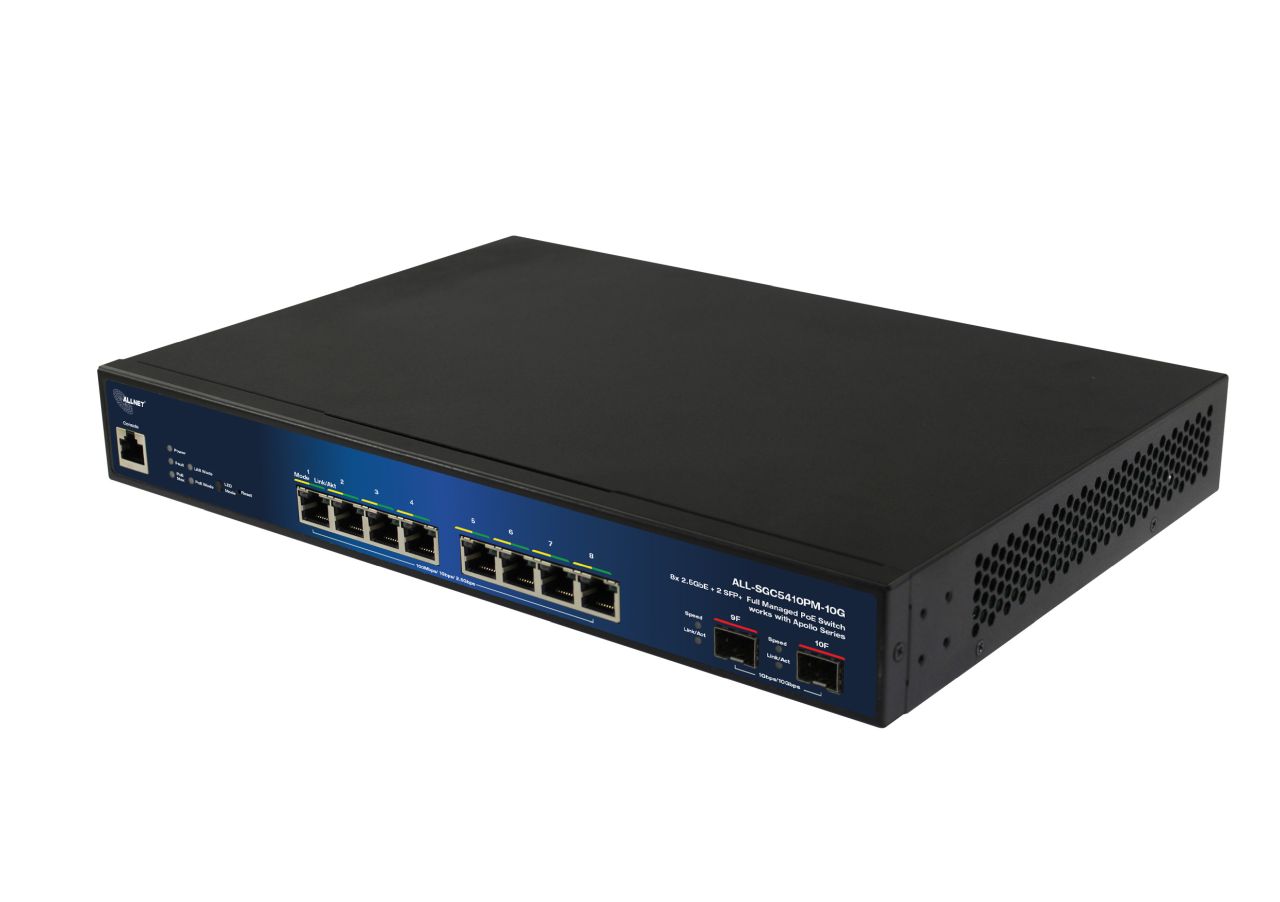

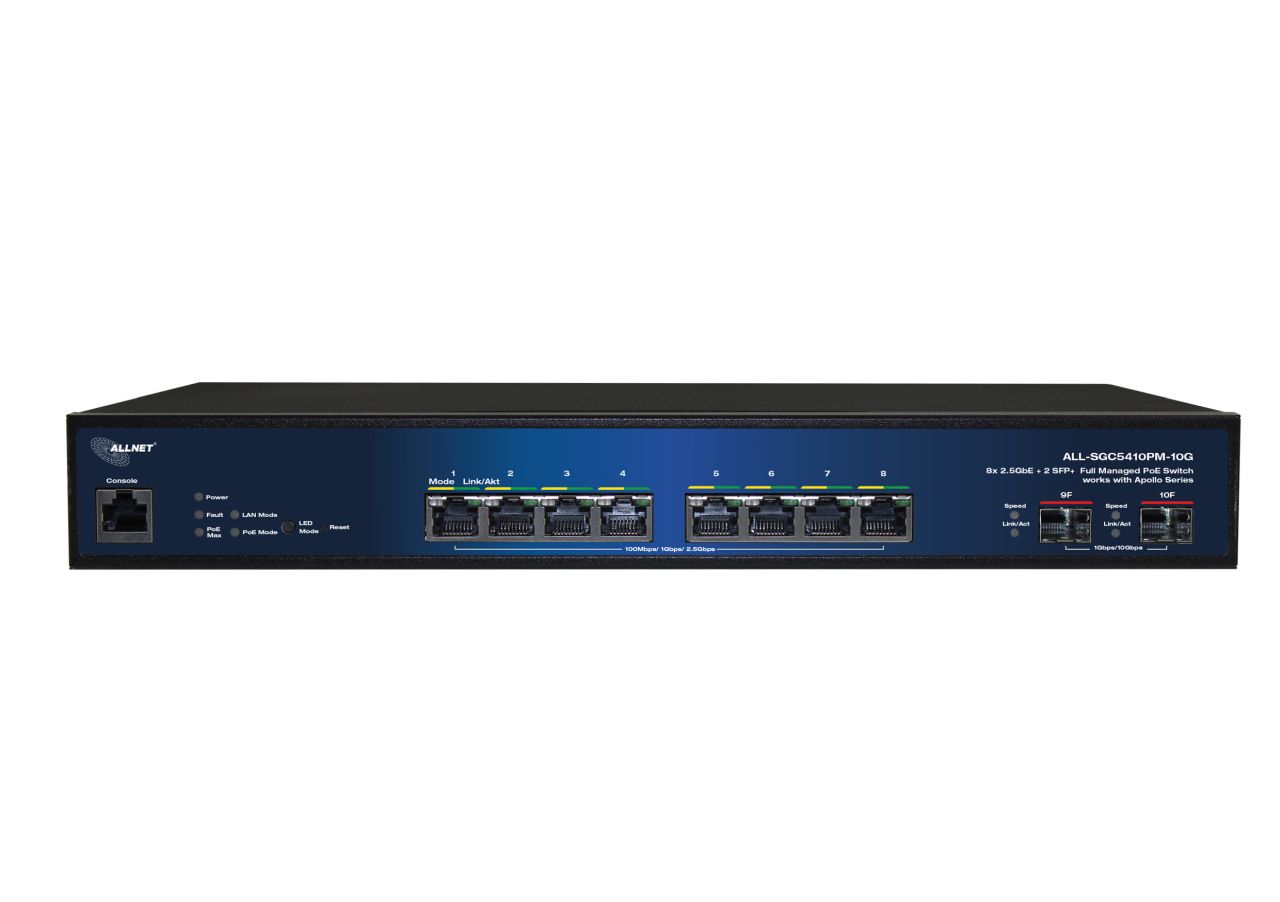

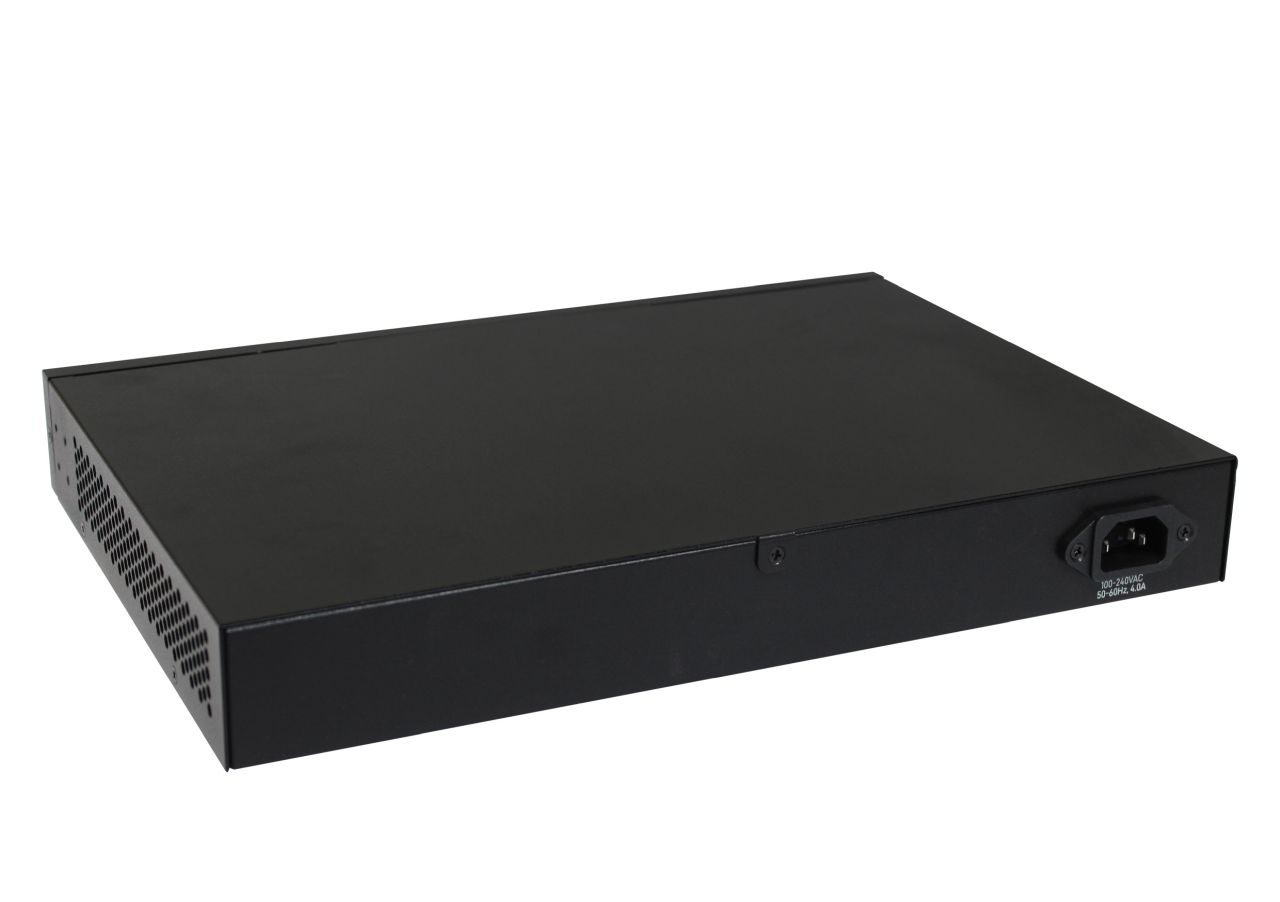

ALLNET Apollo full managed Layer2+ 10Port • 8x 2.5GB • PoE Budget 240W • 8x PoE at • 2x SFP+ • Apollo • ALL-SGC5410PM-10G

On-Premises Management Network Controller Entdecken Sie die Zukunft der Netzwerkverwaltung für kleine Unternehmen mit unserem On-Premises Management Network Controller. Wir verstehen, dass Zeit und Ressourcen kostbar sind, und deshalb haben wir die Installation und Verwaltung von Access Points und Switches revolutioniert. Keine komplizierten Einrichtungsprozesse mehr - einfach einstecken und sofort loslegen. Unser intuitiver Benutzeroberfläche ermöglicht es Ihnen, Ihre Geräte mit nur wenigen Klicks zu registrieren, zu konfigurieren und nahtlos in Ihr Netzwerk zu integrieren. Unser On-Premises Management Network Controller ist die Lösung, die Ihre Arbeit effizienter und produktiver gestaltet. Vereinfachen Sie Ihre Netzwerkverwaltung und konzentrieren Sie sich auf das, was wirklich wichtig ist - das Wachstum Ihres Unternehmens. Erleben Sie die Zukunft der Netzwerkverwaltung, heute. Highlights: Managed Accespoints und & Switche Eine einzige Schnittstelle zur Steuerung aller Geräte Organisieren Sie Ihr Netzwerk nach Standorten oder Stockwerken Geräte sind steckbar und einsatzbereit, ohne Aufwand bei der Einrichtung Übersichtliches Dashboard zur Netzwerkstatusanzeige Benachrichtigungen/Alarme bei auftretenden Problemen Diagnosetools zur Identifizierung und Behebung von Problemen Gerätekonfiguration als Gruppe oder einzeln Wi-Fi-Clientliste, Verkehrs- und Anwendungsstatistiken Einfache Einrichtung von Captive Portals und Gästenetzwerken Geplante automatische Firmware-Updates der Geräte Topologieübersicht der installierten Geräte Physical Interfaces: Software Features ALL-AC100 Controller Dashboard Manage Access Point / Switch Status Channel Utilization Online AP Online Switch AP Usage Switch Usage 2.4Ghz or 5Ghz Client Ration Number of Online Switch Number of Offline Switch Number of Online AP Number of Offline Switch Number of client device in 2.4 GHz radio Number of client device in 5 GHz radio Throughput Client Traffic: Total, Download, Upload Traffic Top Access Point Top Clients Top SSIDs Top Applications Topology Show Label Redundant Clients Throughput Client Name Traffic : Total, Download, Upload Filter : Favorite, Time, SSID, OS, Client, Last Associate AP, IP Display, Client Name, MAC, Access, Last Seen, Last Asso. AP, SSID, IP, OS, Vendor, RSSI, Rate, Band Access Control Export Configure SSID Display SSID Radio Enabled Hidden Security Captive Portal Splash Page Bandwidth Limit Scheduling Application Analysis Add SSID Wireless Name Enabled Hide Radio Security Type: WPA2-PSK/WPA3-PSK/WPA2-Enterprise/WPA3-Enterprise 802.11r 802.11w: All clients/Allow 11w-clients only Client IP Mode: NAT Mode/Bridge Mode Default VLAN Dynamic Client VLAN Pooling Enable Application Analysis Advanced Setting L2 Isolation Band Steering: Type, RSSI Threshold, Client Percent BCMC Suppression Bandwidth Limit Per Client: Download/Upload Per SSID: Download/Upload Recommendation: Application, Bandwidth Captive Portal Authentication Type: Click-through, EnGenius Authentication, Custom Radius, Voucher Service Redirect URL: • Redirect to the URL that the user was trying to visit • Redirect users to a specified URL after login Advanced Setting: Session Timeout/Idle Timeout/Walled Garden/HTTPS Login Splash Page Splash Page Type: External Splash Page URL/Local Splash Page Schedule Scheduling Quick Template Access Control Block List VIP List Radio Setting Indoor & Outdoor Radio Channel Channel Width Target Tx Power Min. Bitrate Client Limit Discard 802.11a/b/g Disable 11as Background Scanning Client Balancing Mesh   Controller User Radius Users Display Name Email Authorized SSID Create Date Status Add User Email Name Password SSID Authorization Authorized SSIDs Display Name Email Authorized by Authorized Date De-authorize Firmware Upgrade AP Firmware Lists: Model, Firmware Version, Upload Date, Actions Maintenance Window Upload Upgrade Now Switch Firmware Lists: Model, Firmware Version, Upload Date, Actions Maintenance Window Upload Upgrade Now Alert Setting AP Basic: AP go offline for event with severity Professional: Configuration changed within network Switch Basic: AP go offline for event with severity Professional: • Configuration changed within network • Switch Port link status change • Switch STP port status change • Switch LBD status change VLAN Settings Display VLAN ID Name Voice VLAN: Protocol, Bridge Priority LLDP Voice VLAN Voice VLAN ID QoS Priority Mode OUIs: OUI Address, Description Quality of Service Trust Mode Scheduling Method Queue Mapping: CoS, DSCP IGMP Snooping: Version, VLANs Jumbo Frames: MTU Size General Settings Network Country, Time Zone Local Credential: Username, Password SNMP: SNMP State, Community AP LED Light Syslog Server: Status, Log Server Address, Log Server Port Message for Blocked Client Advanced Settings Presence Reporting: Server Location, Key, Interval Traffic Log Multicast to Unicat Switch LED Light Syslog Server: Status, Log Server Address, Log Server Port Access Control Blocked List VIP List Analyze Event Logs Device Event Time Device Event Type Description / Detail System Event Time Device Event Type Description / Detail Config Log Time Device Event Type Description / Detail Team Members Display Name Email System Permissions Network Managed Status Last Login Action Invite New Member User Email Networks Permission Organization Inventory Devices Network Model Serial Number MAC Address Registered Time Registered By Register Device Pending Approval: Serial Number, Model, MAC Manually: Serial Number System Information Usage CPU Memory Disk System Up Time Software Version Check for Update Email Alerts Mail Server SMTP Server SMTP Port Authentication User Name Password From Email Address To Email Address Subject Backup & Restore Configuration Backup Name Network Time Creator Action System Backup Backup System Configuration Restore System Configuration Account Profile Edit Profile Password Reset Reboot Two-Factor Authentication Notification Settings Logout   Access Point Display Name MAC address Model Name WAP IP LAN IP Client (2.4G/5G) FW Version Network Uptime Last Update Mesh Mode Action: Detail/Reboot Throughput Channel Utilization Radio: 2.4GHz/5GHz, Unlock. Enabled, Channel, Target TX Power, Channel Width WLAN: SSID, Status Mesh: Don’t allow this AP to join the Mesh network Location Details Device Information Model Name Firmware Serial Number MAC Address Configuration IP Address Subnet Mask Gateway Topology LED Light LED Blinking 2.4 GHz Channel & TX Power 5 GHz Channel & TX Power Summary SSID Information Unlock SSID Enabled Hidden Radio Security Captive Portal Clients in 5 mins (2.4GHz/5GHz) Throughput Client Traffic: Total, Download, Upload Radio 2.4GHz and 5GHz Unlock Enabled Channel Target Tx Power Min. Bitrate Client Limit Channel Width Discard 11a/b/g Mesh:Don’t allow this AP to join the Mesh network IP Addressing Static DHCP IPv4 Address Subnet Mask Gateway DNS Server 1 DNS Server 2 Management VLAN Logs ADD Filter Time Event Type Description Clients Filter Favorite Time SSID OS Client IP List Client Name MAC Access Last Seen SSID IP OS Vendor RSSI Rate Band Download Access Control VIP Block Normal Export CSV file   Switch Display Name MAC address Model Name WAP IP LAN IP Ports (Active/Total) FW Version Network Uptime Last Update Action: Detail/Reboot Port View: Speed, Disconnected, Disabled, PoE, Uplink, Blocked VLAN: Name, Tagged, Untagged Status: PoE, STP, IGMP Snooping, LLDP, QoS, Voice VLAN Detail Device Information Model Name Firmware Serial Number MAC Address Configuration IP Address Subnet Mask Gateway Topology LED Light LED Blinking Voice VLAN Jumbo Frame IGMP Snooping STP LLDP QoS Summary Ports Speed Dsconnect Disabled PoE Uplink Blocked System Config. Spanning Tree LLDP Voice VLAN QoS IGMP Snooping Jumbo Frame Local GUI Debug Log Upload Ports Port Label Enabled Voice VLAN Speed/Duplex PoE PVID Untagged VLAN Tagged VLAN Isolation Rate Limit (Tx/Rx) QoS Configure Enable Label Speed/Duplex VLAN: • PVID • Enabled Voice VLAN<br Isolation Rate Limit VLAN VLAN ID Name Tagged Untagged Mirror Session ID Session State Destination Port Egress Ingress PoE Schedule PoE Scheduling per port Link Aggregation Trunk: ID Aggregation Type Active Port Member Ports Technical Details:   ALL-AC100 Main Chipset Qualcomm ARM A53, 1GHz Dual-Core Description On-Premises Network Controller SPI/NAND Flash Memory eMMC 8GB RAM 1GB DDR4 Interface 2x 1GbE LAN LAN1 PoE IN Dimensions (W x D x H) 153x77x25mm Operating Temperature 0°C to 40°C Certificaton (Generic) FCC CE

ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Indoor • 2.5 GbE • ALL-WAPC0522AX-3000 • Apollo Highlights: Dual Concurrent 802.11ax-Architektur und Abwärtskompatibilität mit 11ac/a/b/g/n-Clientgeräten Unterstützung für WPA3 und WPA2-AES-Authentifizierung 5 dBi integrierte 2x2-Antenne Unterstützt bis zu 2.400 Mbps im 5GHz Frequenzband und 574 Mbps im 2.4GHz Frequenzband Unterstützt 5GHz DFS-Kanäle Lokale und Fernverwaltung über FitController Controller ohne Gebühren 2,5 GBit 802.3af PoE Port für einfache Platzierung bis zu 328 Fuß von einer Stromquelle entfernt Auswahl an AP- und WDS-Modi, um Ihre Verwaltungs- und Bereitstellungsanforderungen zu erfüllen. ALLNET Apollo Series ALL-WAPC0522AX-3000 2x2 Lite Managed Indoor Wireless Access Point bietet fortschrittliche 802.11ax Technologie, die dem Benutzer eine unglaublich schnelle und effiziente Leistung mit einer maximalen theoretischen Geschwindigkeit von 574 Mbps auf der 2,4GHz Frequenz und unglaublichen 2.400Mbps auf der 5GHz Frequenz bietet! Darüber hinaus ist es durch erstklassige WPA3/WPA2PSK AES-Verschlüsselungsprotokolle für unvergleichliche Sicherheit geschützt. Sicherheit. Technical Details Basics: Basic ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP Main Chipset IPQ5018 ARM A53, 1GHz Dual-Core Flash 8MB SPI NOR (reserved) 128MB NAND RAM 512MB DDR3 Transmit Power (Chain + Combining Gain) 2.4GHz: 21dBm 5GHz: 21dBm Interface 1x 10/100/1000/2500Mbps RJ45 Port IEEE802.3at PoE IN 1x Reset Button 1x DC Barrel Jack Operating Temperature 0 ~ 40°C Dimensions (W x L x H) 160 x 160 x 30mm Enclosure Material Plastic (Top Cover) Metal (Bottom Cover) Certification (Generic) FCC, CE Fully Technical Details: Fully ALL-WAPC0522AX-3000 Apollo Entry 2x2 Entry AP Wireless Radio Specification Access Point Type Indoor, dual radios concurrent, 5GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode, 2.4GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 b/g/n/ac Frequency Radio 2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. Supported Radio Technology 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput (VHT)—HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT)—VHT 20/40/80 MHz 802.11n supports high throughput(HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU Supported Modulation Type 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Transmit Power (Combined) 2.4GHz: 21dBm; 5GHz: 21dBm Maximum power is limited by regulatory domain MU-MIMO MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. Tx Beamforming (TxBF) Increasing signal reliability and transmitting distance. Power Maximum Power Consumption (TBD,estimated) 17.4W PowerSource Standard IEEE802.3at DC IN 12V/2A Antenna Internal Antenna 2.4GHz:4dBi 5GHz:5dBi BLE2.4GHz:4.5dBi (reserved) Interfaces Networking Interface One 10/100/1000/2500 Mbps Ethernet Port One 10/100/1000 Mbps Ethernet Ports (reserved) Reset Button One(1) Reset Button (Convert Access Point to the Factory default or the Users Default) DCIN One(1) 12V DC IN Mounting Ceiling or Wall Mounting Mount Access Point in on the ceiling or wall via included accessories Mechanical & Environment Dimensions (LxWxH) 160mmx160mmx30mm Operating Temperature: 0°C~40°C Humidity:0%~90% typical Storage Temperature: -20°C~70°C Humidity:0%~90% typical Marks FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 RF Performance Specification Wireless Indoor Access Point Channel Data Rate Transmit Power (Typical AVG.) Receive Sensitivity Tolerance = +/-1.5 dB 2.4GHz 5GHz 2.4GHz 5GHz Combine EIRP Combine EIRP 802.11b 1M 21 25 - - -95 - 11M 21 25 - - -88 - 802.11g/a 6M 21 25 21 26 -92 -92 54M 18 22 18 23 -74 -73 802.11n HT20 MCS0 21 25 21 26 -92 -92 MCS7 18 22 18 23 -74 -72 802.11n HT40 MCS0 21 25 21 26 -91 -89 MCS7 18 22 18 23 -72 -64 802.11ac VHT20 MCS0 21 25 21 26 -92 -92 MCS8 17 21 17 22 -67 -67 802.11ac VHT40 MCS0 21 25 21 26 -91 -89 MCS9 17 21 17 22 -66 -64 802.11ac VHT80 MCS0 - - 20 25 - -86 MCS9 - - 17 22 - -61 802.11ac VHT160 MCS0 - - 20 25 - -83 MCS11 - - 16 21 - -59 802.11ax HE20 MCS0 21 25 21 26 -92 -92 MCS11 16 20 16 21 -62 -61 802.11ax HE40 MCS0 21 25 21 26 -90 -89 MCS11 16 20 16 21 -59 -58 802.11ax HE80 MCS0 - - 20 25 - -86 MCS11 - - 16 21 - -56 802.11ax HE160 MCS0 - - 20 25 - -83 MCS11 - - 15 20 - -53

ALLNET Apollo Wireless AP WIFI6 • AX5400 • 2x2:2; 4x4:4 • Indoor • 2.5 GbE • ALL-WAPC0544AX-5400 • Apollo Highlights: Dual Concurrent 802.11ax-Architektur und Abwärtskompatibilität mit 11ac/a/b/g/n-Clientgeräten Unterstützung für WPA3 und WPA2-AES-Authentifizierung 5 dBi integrierte 2x2-Antenne Unterstützt bis zu 2.400 Mbps im 5GHz Frequenzband und 574 Mbps im 2.4GHz Frequenzband Unterstützt 5GHz DFS-Kanäle Lokale und Fernverwaltung über FitController Controller ohne Gebühren 1 GB 802.3af PoE Port für einfache Platzierung bis zu 328 Fuß von einer Stromquelle entfernt Auswahl an AP- und WDS-Modi, um Ihre Verwaltungs- und Bereitstellungsanforderungen zu erfüllen. ALLNET Apollo Series ALL-WAPC0544AX-5400 ist ein fortschrittlicher WiFi 6 Access Point, der die Möglichkeiten von WiFi für den Einsatz in Umgebungen mit hoher Kapazität erweitert und vertieft. Die funktionsreiche Hardware auf Enterprise-Niveau kann in einem schlanken und flachen Gehäuse angeboten werden, während gleichzeitig eine optimale Wärmeableitung erreicht wird, um effizienter zu arbeiten und weniger Strom für maximale 4x4 räumliche Streams mit 4804 Mbps im 5GHz Frequenzband und 573 Mbps im 2,4GHz Frequenzband zu verbrauchen. Physical Interfaces: Technical Details Basics: Basic ALL-WAPC0522AX-5400 Apollo Pro 2x2:2; 4x4:4 Main Chipset IPQ5018 ARM A53, 1GHz Dual-Core Flash 8MB SPI NOR (reserved) 128MB NAND RAM 512MB DDR3 Transmit Power (Combined) IPQ5018@2.4GHz: 21dBm QCN6024@5GHz: 27dBm Interface 1x 10/100/1000/2500Mbps RJ45 Port 1x Reset Button 1x DC Barrel Jack Operating Temperature 0 ~ 40°C Dimensions (W x L x H) 160 x 160 x 30mm Fully Technical Details: Fully ALL-WAPC0522AX-5400 Apollo Pro 2x2:2; 4x4:4 Wireless Radio Specification Access Point Type Indoor, dual radios concurrent, 5GHz 802.11 ax 4x4 MU MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode, 2.4GHz 802.11 ax 2x2 MU MU-MIMO is backwards compatible with 802.11 b/g/n/ac Frequency Radio 2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. Supported Radio Technology 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct Direct-sequence spread spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput (VHT) —HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256 256-QAM) 802.11n/ac/ax packet aggregation: A A-MPDU, A A-SPDU Supported Modulation Type 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Transmit Power (Combined) 2.4GHz: 21dBm; 5GHz: 27dBm Maximum power is limited by regulatory domain MU-MIMO MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. Tx Beamforming (TxBF) Increasing signal reliability and transmitting distance. Power Maximum Power Consumption (TBD,estimated) 18W PowerSource Standard IEEE802.3at DC IN 12V/2A Antenna Internal Antenna 2.4GHz:4dBi 5GHz:5dBi Interfaces Networking Interface One 10/100/1000/2500 Mbps Ethernet Port Reset Button One(1) Reset Button (Convert Access Point to the Factory default or the Users Default) DCIN One(1) 12V DC IN Mounting Ceiling or Wall Mounting Mount Access Point in on the ceiling or wall via included accessories Mechanical & Environment Dimensions (LxWxH) 160mmx160mmx30mm Weight 430G Operating Temperature: 0°C~40°C Humidity:0%~90% typical Storage Temperature: -20°C~70°C Humidity:0%~90% typical Marks FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 Fully Technical Details: Fully ALL-WAPC0522AX-5400 Apollo Pro 2x2:2; 4x4:4 Wireless Radio Specification AccessPointType Indoor, dual radios concurrent, 5GHz 802.11 ax 4x4 MU MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode, 2.4GHz 802.11 ax 2x2 MU MU-MIMO is backwards compatible with 802.11 b/g/n/ac FrequencyRadio 2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. SupportedRadioTechnology 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct Direct-sequence spread spread-spectrum (DSSS) 802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput (VHT) —HE 20/40/80/160 MHz 802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz 802.11n supports high throughput (HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256 256-QAM) 802.11n/ac/ax packet aggregation: A A-MPDU, A A-SPDU SupportedModulationType 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM TransmitPower(Combined) 2.4GHz: 21dBm; 5GHz: 27dBm Maximum power is limited by regulatory domain MU-MIMO MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. TxBeamforming(TxBF) Increasing signal reliability and transmitting distance. Power MaximumPowerConsumption(TBD,estimated) 18W PowerSource Standard IEEE802.3at DC IN 12V/2A Antenna Internal Antenna 2.4GHz:4dBi 5GHz:5dBi Interfaces NetworkingInterface One 10/100/1000/2500 Mbps Ethernet Port Reset Button One(1) Reset Button (Convert Access Point to the Factory default or the Users Default) DCIN One(1) 12V DC IN Mounting Ceiling or Wall Mounting Mount Access Point in on the ceiling or wall via included accessories Mechanical & Environment Dimensions(LxWxH) 160mmx160mmx30mm Weight 430G Operating Temperature: 0°C~40°C Humidity:0%~90% typical Storage Temperature: -20°C~70°C Humidity:0%~90% typical Marks FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 RF Performance Specification Wireless Indoor Access Point Channel   Data Rate   Transmit Power (Typical AVG.)   Tolerance = +/-1.5 dBm   Receive Sensitivity (Per-chain)   2.4GHz   5GHz   2.4GHz   5GHz               Combine EIRP   Combine EIRP       802.11b 1M 21 25 - - -95 - 11M 21 25 - - -88 - 802.11g/a 6M 21 25 27 32 -91 -88 54M 18 22 25 30 -75 -71 802.11n HT20 MCS0 21 25 27 32 -92 -88 MCS7 18 22 25 30 -74 -71 802.11n HT40 MCS0 21 25 27 32 -89 -86 MCS7 18 22 25 30 -71 -68 802.11ac VHT20 MCS0 21 25 27 32 -92 -88 MCS8 17 21 24 29 -70 -66 802.11ac VHT40 MCS0 21 25 27 32 -89 -86 MCS9 17 21 23 28 -67 -63 802.11ac VHT80 MCS0 - - 27 32 - -81 MCS9 - - 23 28 - -59 802.11ac VHT160 MCS0 - - 27 32 - -80 MCS11 - - 22 27 - -53 802.11ax HE20 MCS0 21 25 27 32 -92 -88 MCS11 16 20 21 26 -63 -59 802.11ax HE40 MCS0 21 25 27 32 -89 -86 MCS11 16 20 21 26 -61 -57 802.11ax HE80 MCS0 - - 27 32 - -81 MCS11 - - 21 26 - -52 802.11ax HE160 MCS0 - - 27 32 - -80 MCS11 - - 21 26 - -52

ALLNET Apollo Wireless AP WIFI6 • AX3000 • 2x2 • Outdoor IP67 • 2.5 GbE • ALL-WAPC0522AXO-3000 • Apollo Highlights: Dual Concurrent 802.11ax-Architektur und Abwärtskompatibilität mit 11ac/a/b/g/n-Client-Geräten; 2x2 Antennen Unterstützt bis zu 1.200 Mbps im 5-GHz-Frequenzband und 574 Mbps im 2,4-GHz-Frequenzband IP67-zertifiziertes, wetterfestes und staubdichtes Gehäuse widersteht rauen Umgebungen 2,5-GigE-PoE+-kompatibler Port für die einfache Platzierung an Orten, an denen es nur wenige Steckdosen gibt Auswahl von Cloud- oder Vor-Ort-Verwaltungsoptionen je nach Netzwerkarchitektur und administrativen Berechtigungen Cloud-Sichtbarkeit und -Kontrolle von überall Einrichtung in wenigen Minuten mit App-basierten Schritt-für-Schritt-Anleitungen Quick-Scan-Geräteregister, Fernüberwachung und Fehlerbehebung Systemmetriken, Analysen und Fernkonfigurationen in Echtzeit Keine Lizenzierung von Zugangspunkten oder Abonnementgebühren Uplink und Downlink von OFDMA verbessert die Übertragung zu APs und Client-Geräten Ziel-Weckzeit für energiesparende Client- und IoT-Geräte Uplink und Downlink von MU-MIMO für optimale Signal- und Empfangssicherheit für bis zu 2 Geräte Die ALLNET Apollo Series ALL-WAPC0522AXO-3000 Outdoor IP67 ist ein hochentwickelter WiFi 6 Access Point, der die Potenziale von WLAN in Umgebungen mit hoher Nutzerdichte erweitert und vertieft. Dieses Gerät bietet eine umfangreiche Enterprise-Hardware in einem fortschrittlichen Gehäuse, das gleichzeitig eine optimale thermische Wärmeableitung gewährleistet. Dies ermöglicht eine effizientere Leistung und reduziert den Stromverbrauch erheblich, während maximale Geschwindigkeiten von 2402Mbps im 5-GHz-Frequenzband und 573 Mbps im 2,4-GHz-Frequenzband mit bis zu 2x2 räumlichen Streams erreicht werden können. Der Access Point kann einfach an Wänden oder Masten montiert werden, was seine Installation und Nutzung noch flexibler gestaltet. Technical Details Basics:   ALL-WAPC0522AXO-3000 Main Chipset IPQ5016 ARM A53, 1GHz Dual-Core Flash 8MB SPI NOR (Reserved) 128MB NAND RAM 512MB DDR3 Transmit Power (Combined) 2.4GHz: 22dBm 5GHz: 24dBm Bluetooth N/A Interface 1x 10/100/1000/2500Mbps RJ45 Port Operating Temperature -20 ~ 60°C Dimensions (W x L x H) 190 x 124 x 47 mm Enclosure Material Plastic (Top Cover) Metal (Bottom Cover) Certification (Generic) Non-DFS FCC, CE DFS Fully Technical Details: Fully ALL-WAPC0522AXO-3000 Apollo Entry 2x2 Entry AP Wireless Radio Specification Access Point Type Outdoor IP67, dual radios concurrent, 5GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode, 2.4GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 b/g/n/ac Frequency Radio 2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios and channels will be varied on the configured regulatory domain. Supported Radio Technology 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n:Orthogonal Frequency Division Multiple (OFDM) 802.11ax supports very high throughput(VHT)—HE 20/40/80/160 MHz 802.11ac supports very high throughput(VHT)—VHT 20/40/80 MHz 802.11n supports high throughput(HT) —HT 20/40 MHz 802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU Supported Modulation Type 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM Transmit Power (Combined) 2.4GHz: 21dBm; 5GHz: 24dBm Maximum power is limited by regulatory domain MU-MIMO MU-MIMO allows multiple spatial streamsto be allocated to different clients simultaneously on both download and upload sides. Tx Beamforming (TxBF) Increasing signal reliability and transmitting distance. Power Maximum Power Consumption 25W Power Source Standard IEEE802.3at Antenna External Antennas 2.4GHz:4dBi R-SMA-Male 5GHz:5dBi RSMA-Male R-SMA Female-Connector on AP for additional Antennas. Interfaces Networking Interface One(1) 10/100/1000/2500 Mbps Ethernet Ports IP Rating IP67 Mounting Ceiling or Wall Mounting Mount Access Point on the wall or Pole via included accessories Mechanical & Environment Dimensions(LxWxH) 190 x 124 x 47 mm Operating Temperature: -20°C~60°C Humidity: 0%~90% typical Storage Temperature: -30°C~80°C Humidity: 0%~90% typical Marks FCC Subpart15 B Subpart C 15.247 Subpart E 15.407CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024
