TRIAC

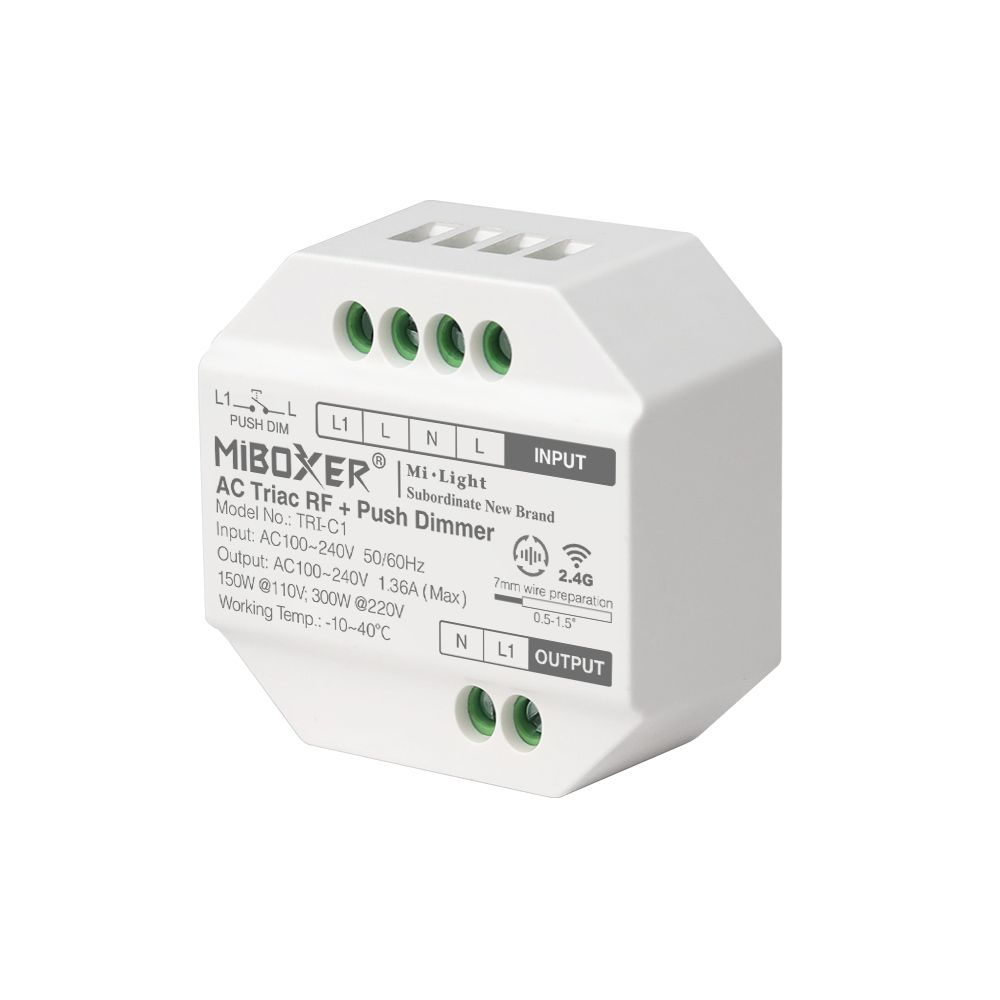

Synergy 21 LED Dimmer AC TRIAC RF+Push *Milight/Miboxer*

Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps Support set up min brightness Brightness adjustable Support 2.4G remote control, control distance 30m Product Parameters Product Name AC Triac Dimmer (2.4G+Push) Model No. TRI-C1 Input Voltage 100-240V~ 50/60Hz Output Voltage 100-240V~ Output Current Max 1.36A Output Power 150W @110V, 300W @220V Dim Method RF wireless dimming, Push dimming 2.4G RF Control Distance 30m IP Rate IP20 Working Temperature -10~40°C

Artikel-Nr.: 235310

Herstellernummer: TRI-C1

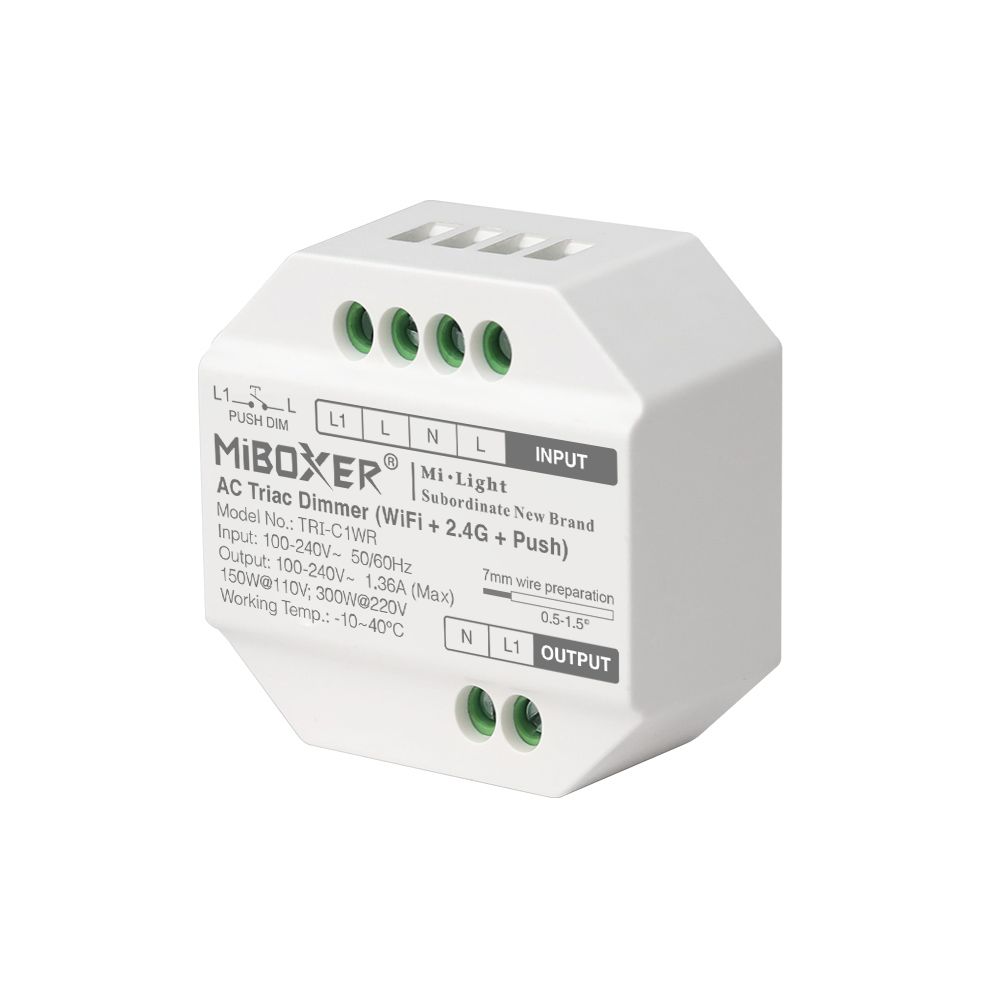

Synergy 21 LED Dimmer AC TRIAC WiFi+2,4G+Push *Milight/Miboxer*

AC Triac Dimmer (WiFi+2.4G+Push) Product Parameters Product Name AC Triac Dimmer (WiFi+2.4G+Push) Model No. TRI-C1WR Input Voltage 100-240V~ 50/60Hz Output Voltage 100-240V~ Output Current Max 1.36A Output Power 150W@110V; 300W@220V Dim Method WiFi + 2.4G + Push 2.4G RF Control Distance 30m Wireless Technology Wi-Fi IEEE 802.11b/g/n 2.4GHz Working Temperature -10~40°C

Artikel-Nr.: 235311

Herstellernummer: TRI-C1WR

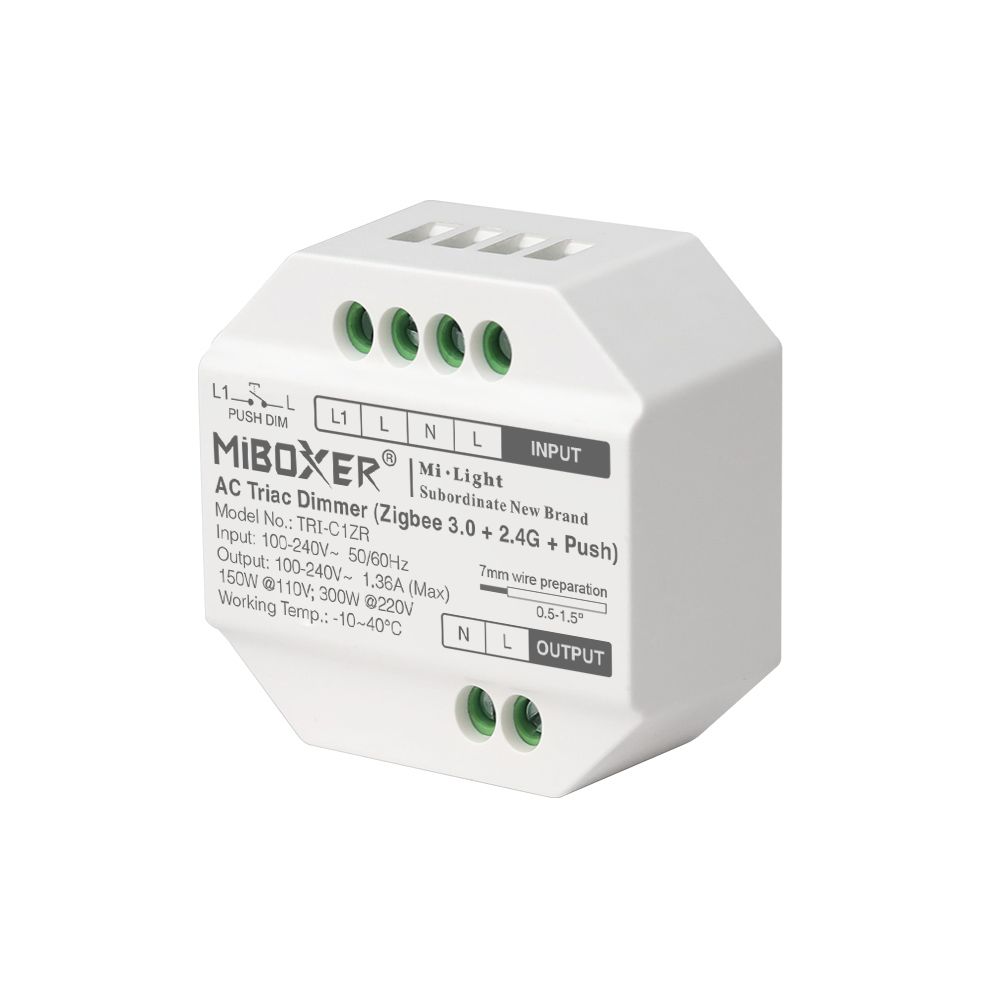

Synergy 21 LED Dimmer AC TRIAC Zigbee 3.0+2,4G+Push *Milight/Miboxer*

AC Triac Dimmer (Zigbee 3.0 + 2.4G + Push) • Support control traditional incandescent lamps, halogen lamps, triac dimmable LED lamps • Support set up min brightness • Brightness adjustable • Product follow zigbee 3.0 standard protocol • Zigbee Contrl distance: 100m (open area) • Support amazon alexa and google home control • Support 2.4G remote control, control distance 30m Product Parameters Product Name AC Triac Dimmer (Zigbee 3.0 + 2.4G + Push) Model No. TRI-C1ZR Input Voltage 100-240V~ 50/60Hz Output Voltage 100-240V~ Output Current Max 1.36A Output Power 150W @110V; 300W @220V Dim method Zigbee 3.0 + 2.4G + Push Zigbee Control Distance 100m (open area) 2.4G RF Control Distance 30m IP Rate IP20 Working Temperature -10~40°C Wireless Technology Zigbee 802.15.4 Zigbee Wireless Frequency 2.400-2.480GHz

Artikel-Nr.: 235312

Herstellernummer: TRI-C1ZR
