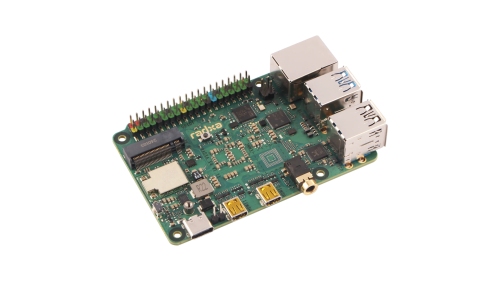

RADXA X4 Intel N100 powered, high performance and competitive priced SBC by RADXA Processor Intel® Processor N100 (Alder Lake-N) - Total Cores: 4 - Total Threads: 4 - Max Turbo Frequency: 3.40 GHz - Cache: 6 MB Intel® Smart Cache - Intel® Gaussian & Neural Accelerator 3.0 - Intel® Image Processing Unit 6.0 - Support for Intel® Virtualization Technology Intel® UHD Graphics - Graphics Max Dynamic Frequency: 750 MHz - DirectX Support: 12.1 - OpenGL Support: 4.6 - OpenCL Support: 3.0 RAM LPDDR5 RAM 4GB /8GB /16GB option Optional Onboard eMMC SPI Flash for BIOS Interfaces Dual Display output via 2 Micro HDMI ports up to 4Kp60 Audio 3.5mm headphone jack with mic input Wireless (optional) - IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.2 with BLE - IEEE 802.11 a/b/g/n/ac (WiFi 5) and Bluetooth 5.0 with BLE Storage 1x M.2 M Key Connector with PCIe 3.0 4-lane for M2 2230 NVMe SSD USB 3x USB 3.0 5Gbps Type A HOST Ports 1x USB 2.0 Type A HOST port Ethernet 1x 2.5 GbE LAN Port with PoE support (via optional PoE hat) GPIO The 40-pin expansion header, provided via RP2040, is compatible with many accessories which where developed for the SBC market. up to 2 x UART up to 2 x SPI up to 2 x I2C up to 16x PWM up to 8 x PIO (Programmable IO) 1 x 5V DC power in/out 2 x 3.3V DC power out Other RTC Battery Socket 2-pin 1.25mm Fan Header 2x buttons: 1x power button 1x BOOTSEL button for RP2040 Software · Intel® 64-bit Instruction Set · Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Instruction Set Extensions · Windows 11 64-bit · Debian / Ubuntu Linux support · Hardware access/control library for Linux Power USB Type-C PD Version 2.0 with 12V/2A ( alternative via PoE HAT) The recommended power source should be able to produce at least 18W without power consuming devices on USB or 25W with full load on USB ports. Size 58mm x 85mm Operation temperature: 0°C to 60°C Certifications: FCC, CE, RoHS Availability: until at least September 2032

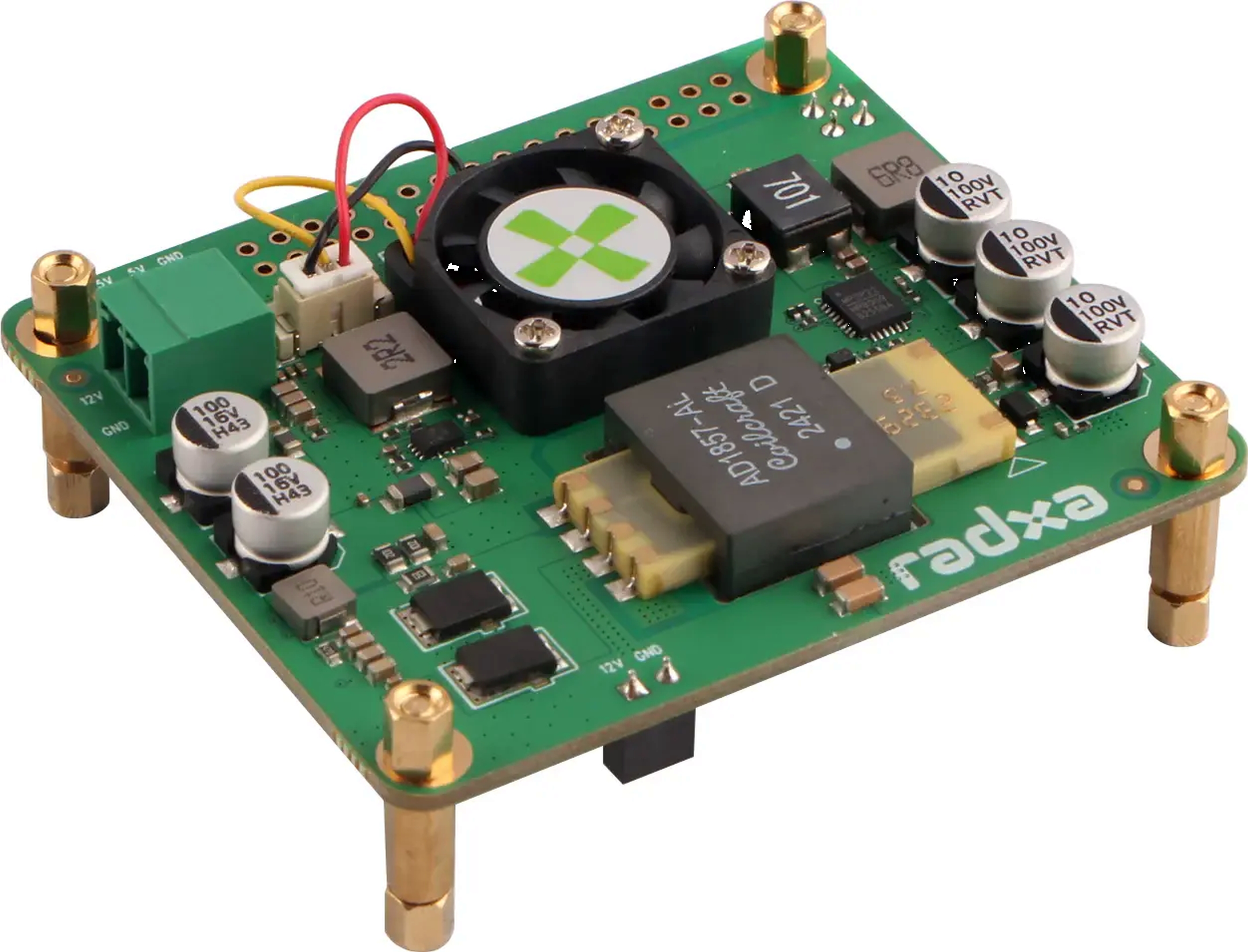

Power your RADXA X4 Board via the RADXA 25W PoE HAT Specs: Compliant to IEEE 802.3at/af standards with 25W Input voltage range 37V to 57V Output voltage/current: 5V/4.8A, 12V/2.1A PWM controlled fan with up to 15000rpm completely redesigned with performance and heat management in mind very low profile attractive price

RADXA X4 Intel N100 powered, high performance and competitive priced SBC by RADXA Processor Intel® Processor N100 (Alder Lake-N) - Total Cores: 4 - Total Threads: 4 - Max Turbo Frequency: 3.40 GHz - Cache: 6 MB Intel® Smart Cache - Intel® Gaussian & Neural Accelerator 3.0 - Intel® Image Processing Unit 6.0 - Support for Intel® Virtualization Technology - TPM 2.0 unterstützt Intel® UHD Graphics - Graphics Max Dynamic Frequency: 750 MHz - DirectX Support: 12.1 - OpenGL Support: 4.6 - OpenCL Support: 3.0 RAM LPDDR5 RAM 4GB /8GB /16GB option Optional Onboard eMMC SPI Flash for BIOS Interfaces Dual Display output via 2 Micro HDMI ports up to 4Kp60 Audio 3.5mm headphone jack with mic input Wireless (optional) - IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.2 with BLE - IEEE 802.11 a/b/g/n/ac (WiFi 5) and Bluetooth 5.0 with BLE Storage 1x M.2 M Key Connector with PCIe 3.0 4-lane for M2 2230 NVMe SSD USB 3x USB 3.0 5Gbps Type A HOST Ports 1x USB 2.0 Type A HOST port Ethernet 1x 2.5 GbE LAN Port with PoE support (via optional PoE hat) GPIO The 40-pin expansion header, provided via RP2040, is compatible with many accessories which where developed for the SBC market. up to 2 x UART up to 2 x SPI up to 2 x I2C up to 16x PWM up to 8 x PIO (Programmable IO) 1 x 5V DC power in/out 2 x 3.3V DC power out Other RTC Battery Socket 2-pin 1.25mm Fan Header 2x buttons: 1x power button 1x BOOTSEL button for RP2040 Software · Intel® 64-bit Instruction Set · Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Instruction Set Extensions · Windows 11 64-bit · Debian / Ubuntu Linux support · Hardware access/control library for Linux Power USB Type-C PD Version 2.0 with 12V/2A ( alternative via PoE HAT) The recommended power source should be able to produce at least 18W without power consuming devices on USB or 25W with full load on USB ports. Size 58mm x 85mm Operation temperature: 0°C to 60°C Certifications: FCC, CE, RoHS Availability: until at least September 2032

Product information Properly manage temperature and protect the SBC with this active Heatsink for RADXA X4 Material Aluminum Alloy Case Input voltage fan 5V Dimensions 97 x 75 x 72 mm Package includes: Radxa Heatsink for X4 Thermally Conductive Silicone Sheet Anti-Slip Round Silicone Pads 4x M2.5x3+3 Copper Piller to prop up Radxa X4 4x CM2.5x3x4 Screws to fix Radxa X4 6x KM2x4x3.5 Screws to fix Heatsink Bracket

RADXA X4 Intel N100 powered, high performance and competitive priced SBC by RADXA Detailed Informations: https://radxa.com/products/x/x4/#techspec Processor Intel® Processor N100 (Alder Lake-N) - Total Cores: 4 - Total Threads: 4 - Max Turbo Frequency: 3.40 GHz - Cache: 6 MB Intel® Smart Cache - Intel® Gaussian & Neural Accelerator 3.0 - Intel® Image Processing Unit 6.0 - Support for Intel® Virtualization Technology - TPM 2.0 unterstützt Intel® UHD Graphics - Graphics Max Dynamic Frequency: 750 MHz - DirectX Support: 12.1 - OpenGL Support: 4.6 - OpenCL Support: 3.0 RAM LPDDR5 RAM 4GB /8GB /16GB option Optional Onboard eMMC SPI Flash for BIOS Interfaces Dual Display output via 2 Micro HDMI ports up to 4Kp60 Audio 3.5mm headphone jack with mic input Wireless (optional) - IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.2 with BLE - IEEE 802.11 a/b/g/n/ac (WiFi 5) and Bluetooth 5.0 with BLE Storage 1x M.2 M Key Connector with PCIe 3.0 4-lane for M2 2230 NVMe SSD USB 3x USB 3.0 5Gbps Type A HOST Ports 1x USB 2.0 Type A HOST port Ethernet 1x 2.5 GbE LAN Port with PoE support (via optional PoE hat) GPIO The 40-pin expansion header, provided via RP2040, is compatible with many accessories which where developed for the SBC market. up to 2 x UART up to 2 x SPI up to 2 x I2C up to 16x PWM up to 8 x PIO (Programmable IO) 1 x 5V DC power in/out 2 x 3.3V DC power out Other RTC Battery Socket 2-pin 1.25mm Fan Header 2x buttons: 1x power button 1x BOOTSEL button for RP2040 Software · Intel® 64-bit Instruction Set · Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2 Instruction Set Extensions · Windows 11 64-bit · Debian / Ubuntu Linux support · Hardware access/control library for Linux Power USB Type-C PD Version 2.0 with 12V/2A ( alternative via PoE HAT) The recommended power source should be able to produce at least 18W without power consuming devices on USB or 25W with full load on USB ports. Size 58mm x 85mm Operation temperature: 0°C to 60°C Certifications: FCC, CE, RoHS Availability: until at least September 2032
