Radxa Zero 3E, Header mounted, 2GB DDR4
Produktinformationen "Radxa Zero 3E, Header mounted, 2GB DDR4"
Product information
Rockchip RK3566 64bit quad core based Mini SBC
Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.
RADXA Zero 3E product details
Rockchip RK3566 64bit quad core processor
Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 1.6GHz
GPU
Arm Mali™-G52-2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0
Memory LPDDR4
LPDDR4 1GB /2GB /4GB /8GB
Micro SD card
TF Card Slot
Display Micro HDMI
1080p@60fps via Micro HDMI
H.264/H.265 decoder up to 4K@60fps
H.264/H265 encoder up to 1080p@60fps
USB 3.0 Type-C HOST x1
USB 3.0 HOST
USB 2.0 Type-C OTG x1
Micro USB 2.0 OTG (for power and data)

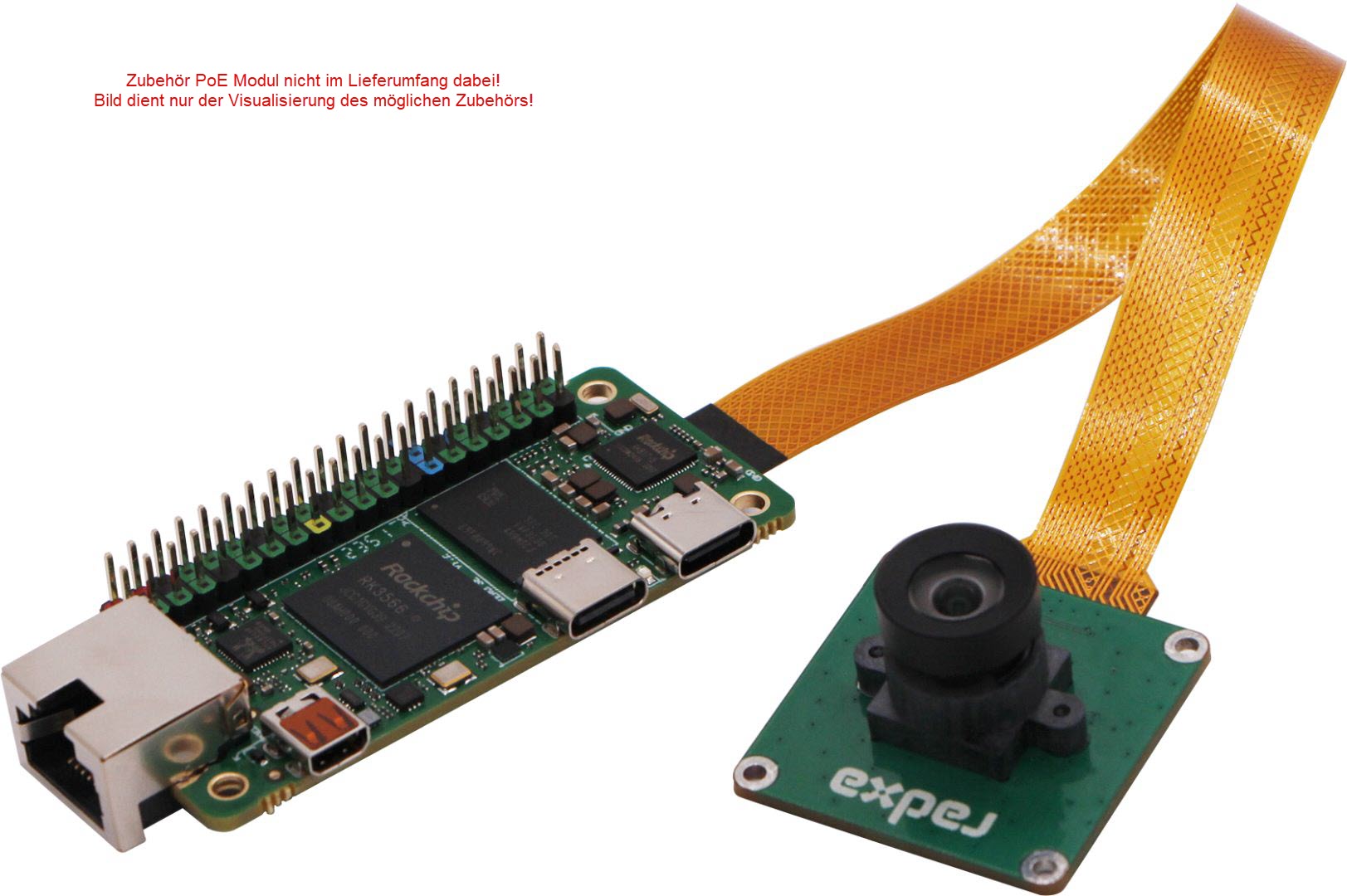

MIPI CSI x1
MIPI CSI Camera Interface (4-lane MIPI CSI)
Network

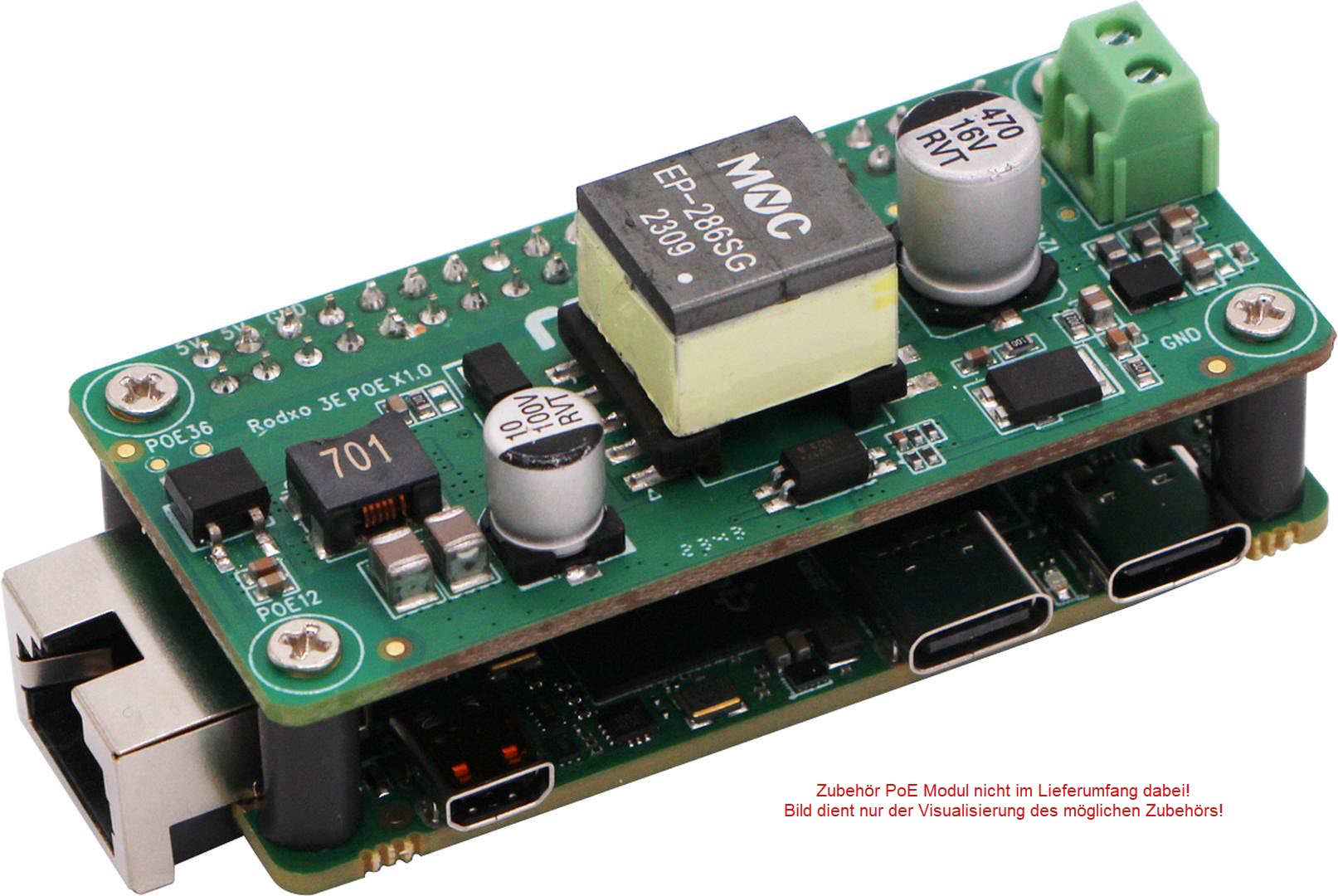

Gigabit Ethernet with PoE support (additional PoE HAT required)
IO 40-pin expansion header:
- up to 5 x UART
- 1 x SPI bus
- up to 2 x I2C bus
- 1 x PCM/I2S
- up to 6 x PWM
- up to 28 x GPIO
- 2 x 5V DC power in
- 2 x 3.3V power pin
Software
- ARMv8 Instruction Set
- Debian/Ubuntu Linux support
- Hardware access/control library for Linux
Others
Size 65mm x 30mm
Operating Temperature 0-50° C
Essentials You Need
- RADXA ZERO 3E
- Power adapter with USB type C port equal or larger than 5W (DC 5V/1A)
- MicroSD Card or onboard eMMC module
- Keyboard & Mouse
- Monitor with HDMI input
- opt. PoE HAT
