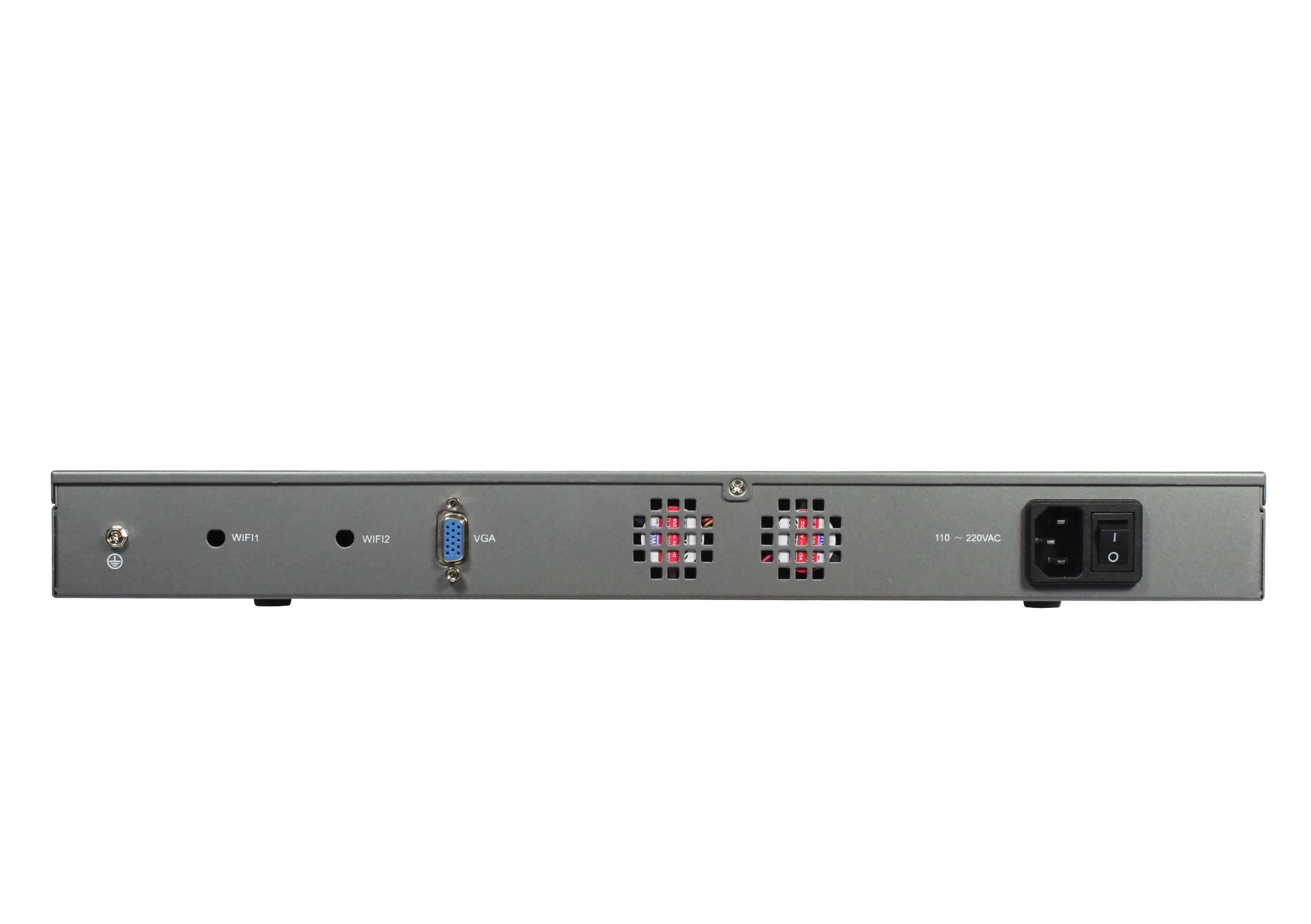

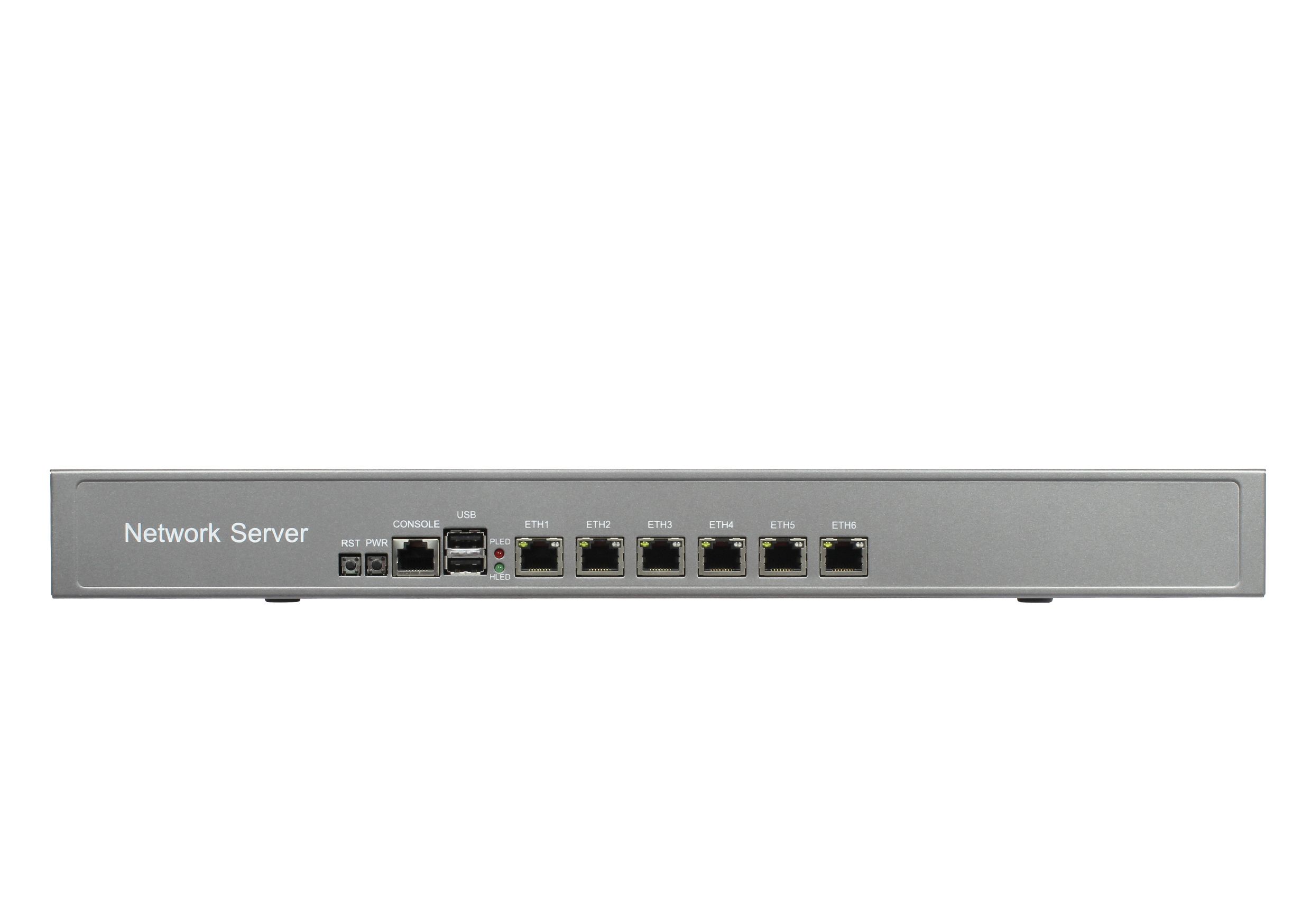

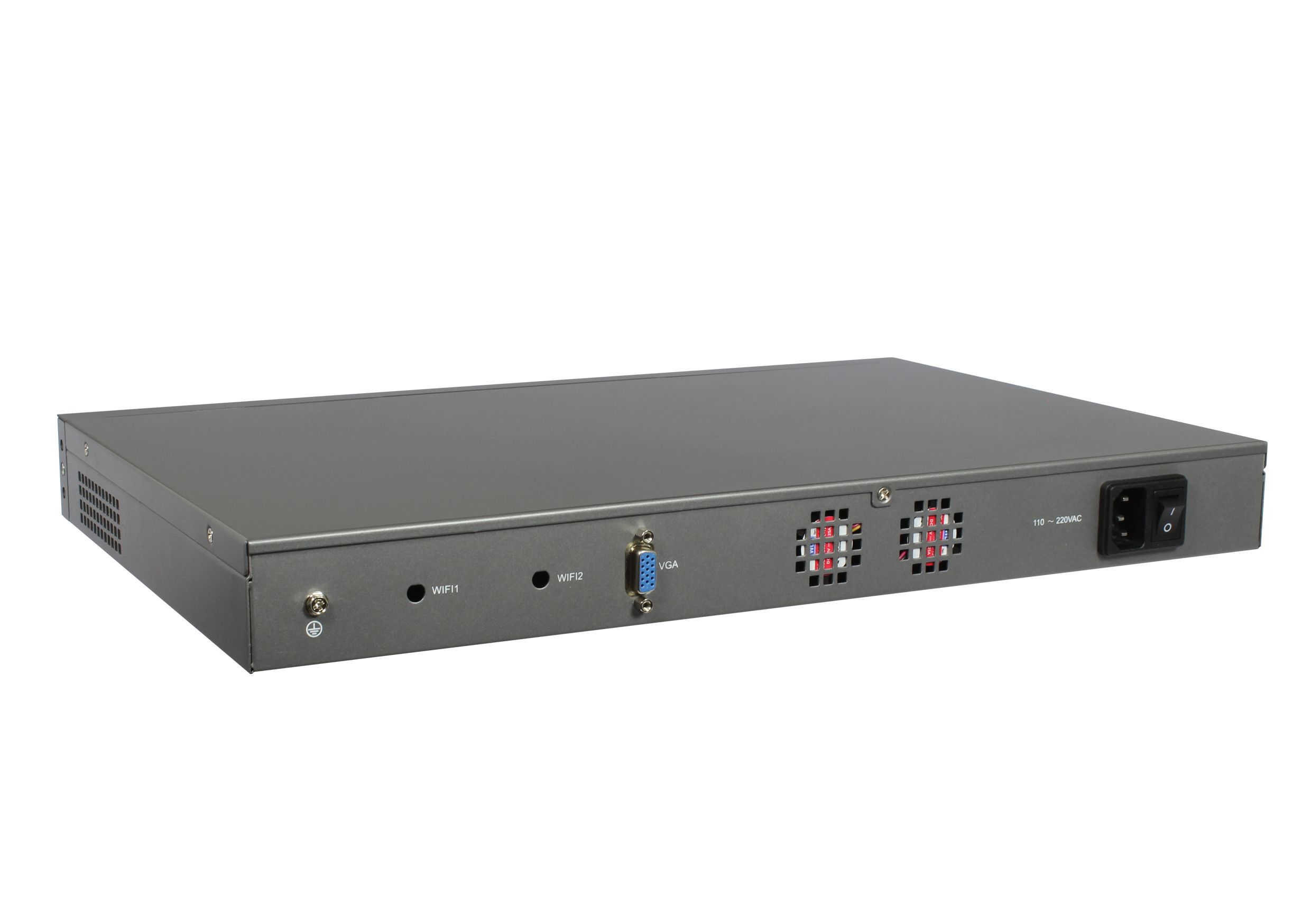

ALLNET Network Appliance NS6001 Celeron 3855U 1HU - Barebone
UVP Netto: 343,23 €
Sofort verfügbar, Lieferzeit: 1-2 Tage
Produktinformationen "ALLNET Network Appliance NS6001 Celeron 3855U 1HU - Barebone"
|
Processor |
CPU |
Integrated Intel® Celeron 3855U dual core 2 thread processor |
|
Frequency |
1.6GHz |
|
|
Power |
TDP 15W |
|
|
Chipset |
Based on Intel® skylake-u SOC platform |
|
|
BIOS |
64Mb Flash ROM |
|
|
RAM |
RAM |
DDR4 2133MHz |
|
Max Capacity |
32GB |
|
|
Slot |
2*SODIMM |
|
|
Display |
Graphics |
Intel® HD Graphics 510 |
|
Graphics Engine |
DirectX12,OpenGL4.4 |
|
|
HDMI |
N/A |
|
|
CRT |
1*VGA ,1920X1200@60Hz |
|
|
Display |
1*VGA |
|
|
Ethernet |
LAN1~LAN4 |
4*Intel WGI211AT Gigabit Ethernet, support Wake On LAN/PXE |
|
LAN5~LAN6 |
2*Intel WGI211AT Gigabit Ethernet,, support network wake up, PXE/ POE function |
|
|
Audio |
Audio |
N/A |
|
I/O Port |
COM Port |
1* CISCO standard RS232 serial |
|
USB |
2* USB2.0 |
|
|
Optical fiber |
N/A |
|
|
Phoenix Connector |
N/A |
|
|
Expansion |
Mini PCIE |
1* Mini PCIE slot,support WIFI module |
|
Storage |
SATA |
1*2.5”HDD Expansion or 1*3.5”HDD Expansion |
|
MSATA |
1* MSATA SSD, transmission rate up to 3Gbps |
|
|
OS Support |
Microsoft Windows |
Windows 7/Windows10,64bit(not include OS code) |
|
Linux |
Ubuntu |
|
|
Power Supply |
Power Type |
External open power supply |
|
Voltage Input |
AC 110~220V |
|
|
Power Output |
AC TO DC,60W |
|
|
Structure |
Structure |
1U standard case, high quality galvanized steel |
|
Installation |

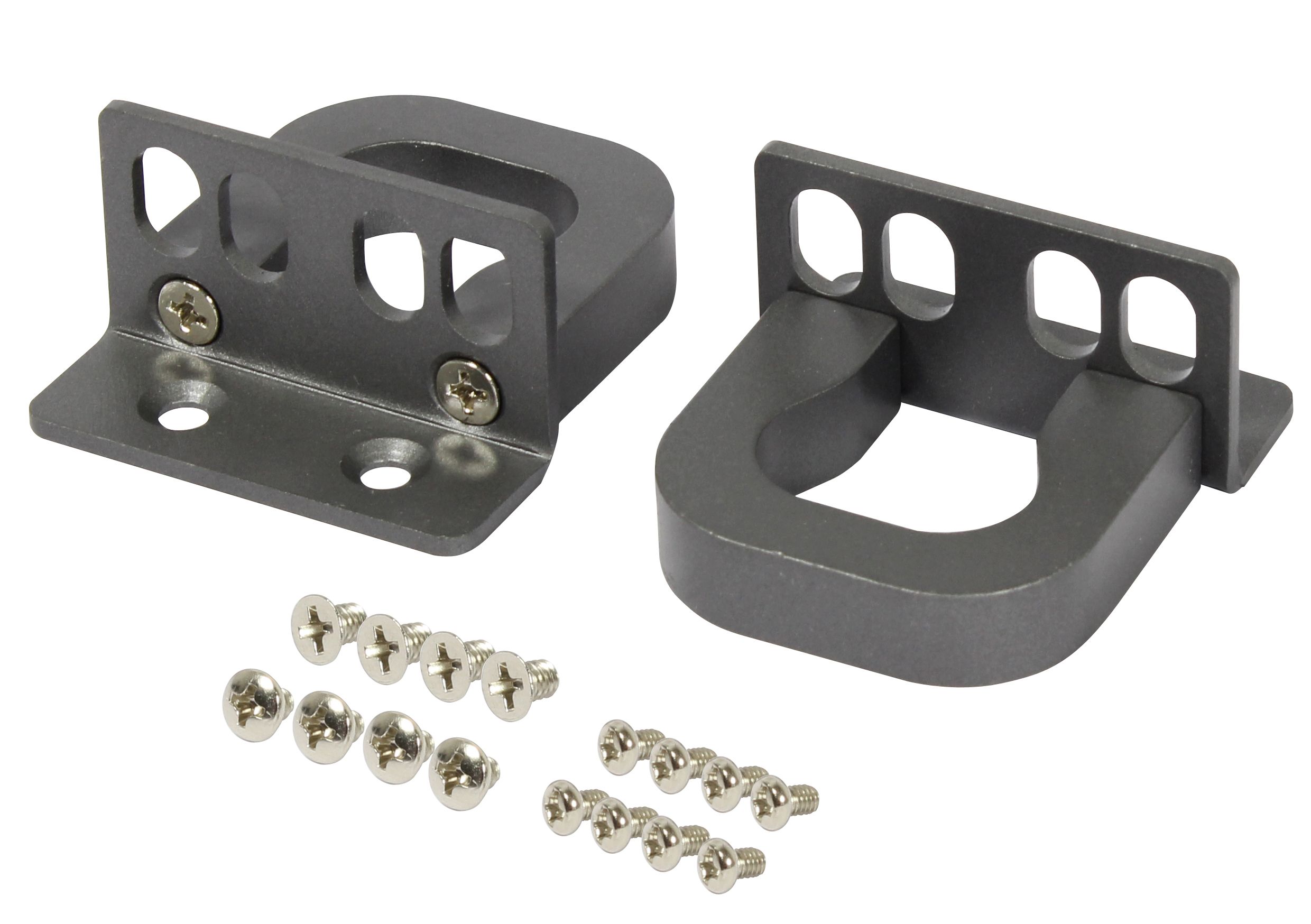

1U standard rack |
|
|
Dimension |
430mm*281mm*45mm |
|
|
Environment |
Working Temp. |
-10°C ~ 60°C |
|
Storage Temp. |
-20°C ~70° C |
|
|
Relative Humidity |
5%-95% relative humidity, non-condensing |
|
|
Working Vibration |
0.5g rms/5-500HZ/random/operating |
Sofort verfügbar, Lieferzeit: 1-2 Tage
