Server Adapter

Highlights: The PCIe x4 AQC107S 10GbE Ethernet card is a high-performance, multi-gigabit Ethernet card that supports the 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-T, the AQtion Ethernet controller easily handles the 10GbE Line-rate performance.  The AQC107 incorporates Aquantia’s AQrate PHY technology which delivers 10GbE network connectivity speed through Cat 6a, and delivers 5 GbE and 2.5 GbE network connectivity speed through 100 meters of Cat 5e or better cabling enabling higher data rates with zero change to legacy cabling. FEATURES - Compliant with PCIE Express Revision 3.0 and downstream with PCI Express Reivison 2.0 - Supports line rate of 8.0GT/s and 5.0GT/s per lane - Supports communication and management function - Integrated Aquantia AQrate PHY featuring NBASE-T technology - Supports PHY specifications with 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T /100BASE-T. - On-chip high resolution cable analyzer for advanced cable diagnostics - Energy Efficient Ethernet (EEE) Support - Supports IEEE1588v2 Precision Time Protocol - Support large send offload, Receive Side Scaling (RSS), Direct Cache Access (DCA) and Header checksum for increased network performance and lower host CPU utilization - Supports IPv4, IPv6 and IPv6/UDP checksum offload - Supports Jumbo frame (up to 16kbytes) - Quality of Service (QoS) - Supports up to eight traffic classes and Data Center Bridging (DCB) Target Applications - Marvell AQtion power leading -edge solutions for motherboards, PCs, Workstations, docking station, NAS, Router, Gateways and other embedded applications System Requirements - Drivers: Windows 10/8.1/8/7, Linux 3.10 and higher - Utilities: ROM programming and Windows Installer - Boot Options: UEFI and PXE Technical Details: Essentials Product Collection Network 10G mGig Controller Processors Marvell AQC107S Bus Type PCI Express Gen 3x2 or Gen 2x2 Data Rate 5-Speeds: 10G/5G/2.5G/1G/100M  Media Copper 100 meters over Cat 6a at 10Gbps 100 meters over Cat 5e (or better) at 5Gbps/2.5Gbps/1Gbps/ 100Mbps (requires no change to existing infrastructure or cabling) Boot Options UEFI and PXE Bracket Full-height bracket installed. Low-profile bracket included in package Dimension 79 mm x 68 mm (PCIe Board) Technical Specifications Network protocol IEEE802.3an, IEEE802.3bz, IEEE802.3ae, IEEE1588v2, IEEE802.3ab, IEEE802.3z, IEEE802.3u Jumbo frames 16Kbytes IPv4/IPv6 Flow Control Support Boot Options UEFI and PXE System Requirements Windows Client Windows 10/ 8.1/ 8/ 7, Windows Sever 2012/ 2012 R2/ 2016/ 2019 Apple device Mac OS  Linux Client Linux kernel: 2.6.32/3.x/4.x or higher, Linux CentOS/RHEL6.5/7.X or higher, Ubuntu: 14.x/15.x/16.x or higher, VMware: ESX/ESXi 4.x/5.x/6.x or higher Environment & Certification Power Consumption Max. 3.8W at 10Gbps, 3.0W at 5Gbps Storage Humidity Maximum 90% non-condensing relative humidity at 35 °C Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature 0 °C to 55 °C (32 °F to 131 °F) LED Indicators LINK (solid) and ACTIVITY (blinking) LINK S PEED ( green=10 G bps; yellow=1 G bps) Marks CE FCC RoHS

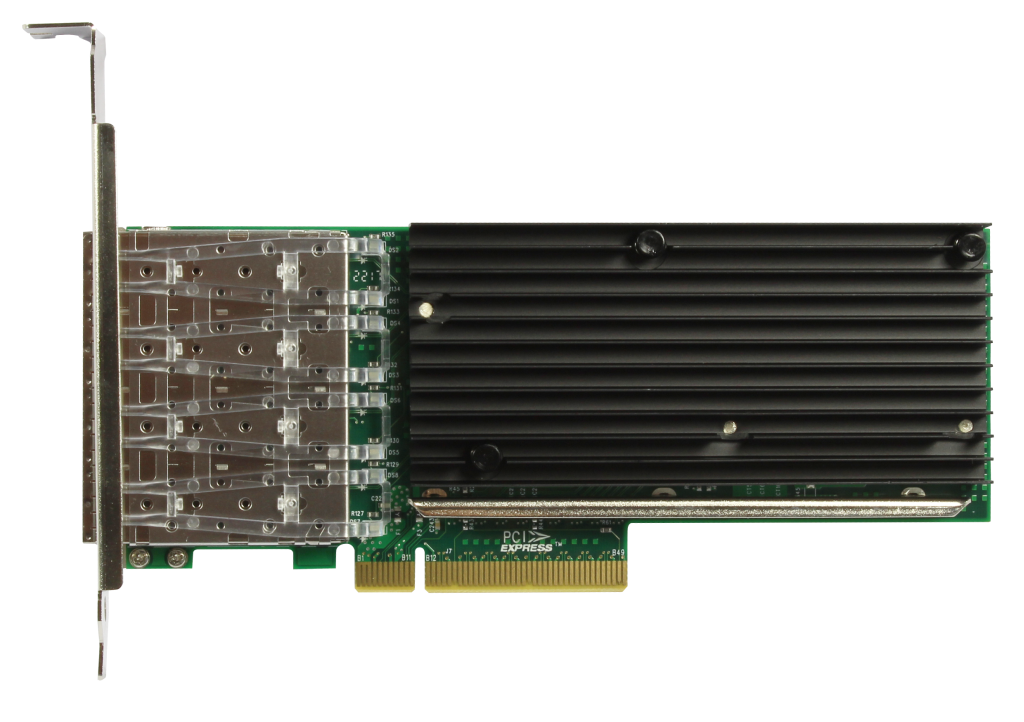

Highlights: Quad-port 10GbE SFP+ server adapters PCI Express (PCIe) v3.0, 8.0 GT/s, x8 lanes SFP+ Connectivity PXE,iSCSI boot Network Virtualization IEEE 802.1q and 10G Ethernet specification compliance Data Plane Development Kit (DPDK) support Excellent small packet performance for network appliances and Network Functions Virtualization (NFV) Low Profile and Full-Height bracket ATTENTION: Only works ONLY with INTEL-compatible SFP+ modules, see accessories. Overview:                                      ALL0141-4SFP+-10G is  ALLNET  a  new generation  of high- performance  server  adapter,  based  on  the  Intel  XL710-BM1  controller.  The  Server  Adapter  addresses  the demanding  needs  of  the  next-generation  agile data center by providing unmatched features for both server and network  virtualization,  flexibility  for  LAN  and  SAN networks and proven, reliable performance. The ALL0141-4SFP+-10G adapter delivers superior performance  in  a  PCI  Express  v3.0  x8  slot.  Optimized performance vectors and key uses include: Small Packet Performance: Achieves wire-rate throughput on smaller payload sizes (>128 Bytes for 40 GbE and >64 Bytes for 10 GbE) Bulk Transfer Performance: Delivers line-rate performance with low CPU usage for large application buffers Network Virtualization: Network virtualization overlay offloads including Geneve, VXLAN, and NVGRE Storage Performance: Enables competitive performance with native OS drivers and intelligent offload for NAS (NFS, SMB), and SAN (iSCSI and FCoE) Key Features                                Quad –Port 10GbE Server Adapter PCI Express* (PCIe) 3.0, x8 Exceptional Low Power Adapters Network  Virtualization  offloads  including  Geneve, VXLAN and NVGRE Intel® Ethernet Flow Director for hardware based application traffic steering Intel® Data Plane Developer Kit (DPDK) optimized for efficient packet processing Excellent small packet performance for network appliances and Network Function Virtualization (NFV) Intelligent offloads to enable high performance with Intel® Xeon® processor-based servers I/O virtualization innovations for maximum performance in a virtualized server Unified networking providing a single wire support for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE) A Complete, Unified Networking Solution Converging data and storage onto one fabric eliminates the need for multiple adapters, cables and switches. Furthermore both 10 and 40 gigabit Ethernet provides the bandwidth to converge these multiple fabrics onto a single wire. A key capability that makes all this possible is traffic class separation provided by Data Center Bridging (DCB) providing a one-wire solution with virtual pipes for the different classes of traffic: Data: Best effort delivery of standard LAN traffic Storage: Lossless network for FCoE and iSCSI Management: Guaranteed connectivity of data center IP management Power Savings  Power efficiency is critical to IT specialists as energy consumption is a real OpEx concern. Lowest Power Consumption The new generation of ALL0141-4SFP+-10G adapters are power  misers.  They  deliver  double  the  throughput  with only half the power of the previous Energy Efficient Ethernet (EEE) Reduces power consumption during periods of low data activity.  Energy  is  used  to  maintain  the  physical  layer transmitters in a "ready state” to transmit data on the wire. During periods of low data traffic, EEE sends a low-power- idle signal to put the transmitters into a "low power state” saving power and cost. When data needs to be sent, EEE sends a normal idle signal to wake up the transmit system before data is due to be sent so there is no degradation of performance. Server Virtualization                   With the INTEL Virtualization Technology (VT), the ALL0141-4SFP+-10Gadapter deliver outstanding I/O performance  in  virtualized  server  environments.  They reduce I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), enabling near- native  performance  and  VM  scalability.  The  host-based virtualization technologies supported by Intel VT include: VMDq for Emulated Path: Adapter-based VM Queue sorting enabling efficient hypervisor-based switching SR-IOV for Direct Assignment: Adapter-based isolation and switching for various virtual station instances enabling optimal CPU usage ind virtualized environments.  Additionally,  ALL0141-4SFP+-10G provide Virtual Bridging support that delivers both host-side and switch-side control and management of virtualized I/O as well as the following modes of virtualized operation: VEPA : IEEE 802.1Qbg support for Virtual Ethernet Port Aggregator VEB: Virtual Ethernet Bridge support via Intel® VT Network Virtualization                 Network virtualization is the next big trend in creating an agile data center.   The   ALL0141-4SFP+-10Gadapter is ready to help you take that next step. VXLAN, NVGRE, GENEVE Offloads: With Intel Virtualization Technologyperformance for overlay networks. With these offloads it is possible to distribute network traffic across CPU cores. At the same time XL710 offloads LSO, GSO, and check-sum from the host software reducing CPU overhead. Intel® Ethernet Flow Director       Flow Director is an advanced traffic steering capability built  into  the  XL710  controller.  It  consists  of  a  large number of flow affinity filters that direct receive packets by their flows to queues for classification, load balancing, and matching between flows and CPU cores. It eliminates context  switching  required  within  the  CPU.  As  a  result, Flow Director significantly increasing the number of transactions per second and reduces latency for cloud applications like Memcached. Intelligent Offloads                                   The Intel Xeon processor family has demonstrated increased computing performance and increased integration of key server subsystems generation after generation. To offload is to leverage the ever-escalating computing power of the Xeon processor where appropriate and implementing complementary accelerations in the network controller—this is what Intel refers to as ”intelligent offloads.” By employing a balanced hybrid of compute  and  offload,  intelligent  offloads  are  able  to achieve the optimized point of performance and efficiency. This is most notably observed in the following usage models: TCP Stateless Offloads: Demonstrates  leading  performance  vs.  TOE  solutions without restricting feature usage (TOE usage usually requires  that  key  features  be  disabled).  Supported stateless offloads include Checksum, TSO, VMDq, and RSS. Host iSCSI /FCoE Initiators: Providing exceptional performance without the need for full-offload HBA2 methods. Flow Classification: Trafficking data flows across multiple consumers and connections. Manageability                                           ALL0141-4SFP+-10Galso incorporate the manageability required by IT personnel for remote control and alerting. Communication to the Board Management Controller (BMC) is available either through an on-board SMBus port or the DMTF-defined NC-SI, providing a variety of management protocols,  including  IPMI,  BMC  Pass-thru,  OS2BMC,  and MCTP/SMBus and MCTP/PCIe. Features General Intel® XL710-BM1 40 Gigabit Ethernet Controller SFP+ Connectivity Low-profile Full-height Load balancing on multiple CPUs iSCSI remote boot support Fibre Channel over Ethernet (FCoE) support Support for most network operating systems RoHS-compliant Intel® PROSet Utility for Windows*Device Manager Time Sync (IEEE 1588*, 802.1as) I/O Features for Multi-core Processor Servers Intel® Flow Director MSI-X support Multiple Queues: 1,536 Tx and Rx queues per port Tx/Rx  IP,  SCTP,  TCP,  &  UDP  checksum  offloading  (IPv4, IPv6) capabilities Virtualization Features                              Next-Generation VMDq Up to 256 maximum VMDq VMs supported PCI-SIG SR-IOV Implementation (128 per device) Virtual Machine Load Balancing(VLMB) Advanced Packet Filtering VLAN  support  with  VLAN  tag  insertion,  stripping  and packet filtering for up to 4096 VLAN tags VXLAN and NVGRE Support Manageability Features                             Preboote Xecution Environment (PXE) Support Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters iSCSI Boot Watchdog Timer Adapter Product Features                          Intel® PROSet Utility Plug and play specification support Receive Side Scaling Advanced Software Feature                      Adapter fault tolerance (AFT) Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support IEEE 802.3ad (link aggregation control protocol) PCIe Hot Plug*/Active Periphera component interconnect (PCI) IEEE 802.1Q* VLANs IEEE 802.3 2005* flow control support Tx/Rx  IP,  TCP,  &  UDP  checksum  offloading  (IPv4,  IPv6) capabilities  (Transmission  control  protocol(TCP),  user datagram protocol (UDP), Internet protocol (IP) IEEE 802.1p* TCP segmentation large send offload MSI-X supports Multiple Independent Queues Interrupt moderation Ipv6 offloading — Checksum and segmentation capability extended to new standard packet type Network Operating Systems (NOS) Software Support Windows Server* 2012 R2; Windows Server 2012 R2 Core; Windows Server 2012; Windows Server 2012 Core; Windows Server 2008 R2; Windows Server 2008 R2 Core; Linux* Stable Kernel version 2.6.32/3x; Linux* RHEL 6.5 and RHEL 7.0; Linux* SLES 11 SP3 and SLES 12; FreeBSD* 9 and FreeBSD* 10; UEFI* 2.1; UEFI* 2.3; VMware ESXi 5.1 (Limited Functionality); Vmware ESXi 5.5 Technical Details: Controller Intel XL710 Transmission Rate Per Port 10000Mbps Network Standard Physical Layer Interfaces 10GBASE-SR, 10GBASE-LR Jumbo Frame Support Up to 9.5 KB Operating Temperature 0? to 55?(32°F to 131°F) Network Virtualization VLAN, VLAN tag, VXLAN, NVGRE, GENEVE,VLMB LED Indicators Link Yellow,10Gb/s:Green blinking SYSTEM SUPPORT Windows Server 2008 R2 / 2012 / 2012 R2 / 2016 R2 Windows 7 / 8 / 8.1 / 10 FreeBSD 11.0or later Linux SLES 11 / 12or later Linux Stable Kernel version 2.6.x/3.x/4.x or later VMware ESX/ESXi 5.x/6.x or later

Dual- and Quad-port Gigabit Ethernet server adapters designed with performance enhancing features and new power management technologies Overview The ALL0136v2-4-GB-TX Intel Ethernet Server Adapter I350 family, these adapters represent the next step in the Gigabit Ethernet (GbE) networking evolution for the enterprise and data center by introducing new levels of performance through industry-leading enhancements for both virtualized and iSCSI Unified Networking environments. This new family of adapters also includes new power management technologies such as Energy Efficient Ethernet (EEE) and DMA Coalescing (DMAC). Key Features -- Dual - or Quad -port Gigabit Ethernet adapters with copper or fiber interface options -- Innovative power management features including Energy Efficient Ethernet (EEE) and DMA Coalescing for increased efficiency and reduced power consumption -- Flexible I/O virtualization for port partitioning and quality of service (QoS) of up to 32 virtual ports -- Scalable iSCSI performance delivering cost-effective SAN connectivity -- High-performing bridgeless design supporting PCI Express* Gen 2.1 5GT/s -- Reliable and proven Gigabit Ethernet technology from Intel Corporation   Essentials Product Collection Intel I350 Ethernet Server Adapter  Controller Processors Intel NHI350AM4 Bus Type/Bus Width PCI Express* 2.1 (5 GT/s) x4-lane, operable in x4, x8 and x16 slot Connections 4 x RJ-45 (Copper) Data Rate Supported 10/100/1000 Mbps (Copper), 1000 Mbps (Fiber) Cable Distances Copper: up to 100 m Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation Fiber: MMF 62.5/50 um Bracket Full-height bracket installed. Low-profile bracket included in package Dimension 130 mm x 69 mm (PCIe Board) Technical Specifications IEEE standard Network topology IEEE 802.3/10BASE-T, 100BASE-TX, 1000BASE-T IEEE* 802.3 Auto-negotiation 1Gb/s Ethernet IEEE 802.3, 802.3u, 802.3ab PHY specifications Compliant Integrated PHY for 10/100/1000 Mb/s for multispeed, fulland half-duplex IEEE 802.3x and 802.3z compliant flow control support with software-controllable Rx thresholds and Tx pause frames Automatic cross-over detection function (MDI/MDI-X) IEEE 1588 protocol and 802.1AS implementation ? Interrupt Levels INTA, INTB, INTC, INTD, MSI, MSI-X System Requirements Windows Client Windows 11/ 10/ 8.1/ 8/ 7 Windows Sever 2008 R2/ 2012/ 2012 R2/ 2016/ 2019/ 2022 Linux RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13 Environment & Certification Power consumption (typical) Copper: I350T2V2 4.4 W I350T4V2 5.0 W Fiber: I350F2 5.5 W I350F4 6.0 W Storage Humidity Maximum 90% non-condensing relative humidity at 35 °C Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature 0 °C to 55 °C (32 °F to 131 °F) Connect Speed LED Indicators Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper) ? Green=1 Gb/s. Not illuminated=no link (Fiber) Certifications CE FCC RoHS

ALLNET ALL0140-2SFP+-10GPCI Express v3.0 x8 Dual Port SFP+ 10 Gigabit Server Adapter (Intel X710- BM2 Based)Overview: ALL0140-2SFP+-10Gis ALLNET a new generation of high-performance server adapter, based on the Intel X710-BM2 controller. The Server Adapter addresses the demanding needs of the next-generation agile data center by providing unmatched features for both server and network virtualization, flexibility for LAN and SAN networks and proven, reliable performance. The ALL0140-2SFP+-10Gadapter delivers superior performance in a PCI Express v3.0 x8 slot. Optimized performance  vectors and key uses include:•Small Packet Performance:  Achieves wire-rate throughput on smaller payload sizes (>64 Bytes for 10 GbE)•Bulk Transfer Performance:  Delivers line-rate performance with low CPU usage for large application buffers •Network Virtualization:  Network virtualization overlay offloads including Geneve, VXLAN, and NVGRE•Storage Performance:  Enables competitive performance with native OS drivers and intelligent offload for NAS (NFS, SMB), and SAN (iSCSI and FCoE) Key Features • Dual –Port 10GbE Server Adapter • PCI Express* (PCIe) 3.0, x8 • Exceptional Low Power Adapters • Network Virtualization offloads including Geneve, VXLAN  and NVGRE • Intel® Ethernet Flow Director for hardware based application traffic steering • Intel® Data Plane Developer Kit (DPDK) optimized for efficient packet processing • Excellent small packet performance for network appliances and Network Function Virtualization (NFV) • Intelligent offloads to enable high performance with Intel® Xeon® processor-based servers • I/O virtualization innovations for maximum performance in a virtualized server • Unified networking providing a single wire support for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI, FCoE) A Complete, Unified Networking Solution Converging data and storage onto one fabric eliminates the need for multiple adapters, cables and switches. Furthermore 10 gigabit Ethernet provides the bandwidth to converge these multiple fabrics onto a single wire. A  key capability that  makes all this possible is traffic class separation provided by Data Center Bridging (DCB) —providing  a one-wire solution with virtual pipes for the different classes of traffic: • Data: Best effort delivery of standard LAN traffic • Storage: Lossless network for FCoE and iSCSI • Management: Guaranteed connectivity of data center IP management Power Savings Power efficiency is critical to IT specialists as energy consumption is a real OpEx concern.• Lowest Power Consumption The new generation of ALL0140-2SFP+-10Gadapters are power misers. They deliver double the throughput with only half the power of the previous ALL0140-2SFP+-10G• Energy Efficient Ethernet (EEE) Reduces power consumption during periods of low data activity. Energy is used to maintain the physical layer transmitters in a "ready state” to transmit data on the wire. During periods of low data traffic, EEE sends a low-power-idle signal to put the transmitters into a "low power state” saving power and cost. When data needs to be sent, EEE sends a normal idle signal to wake up the transmit system before data is due to be sent so there is no degradation of performance. Server Virtualization With Intel Virtualization Technology (VT), the ALL0140-2SFP+-10Gdeliver outstanding I/O performance in virtualized server environments. They reduce I/O bottlenecks by providing intelligent offloads for networking traffic per virtual machine (VM), enabling near-native performance and VM scalability. The host-based virtualization technologies  supported by Intel VT include:• VMDq for Emulated Path: Adapter-based VM Queue sorting enabling efficient hypervisor-based switching• SR-IOV for Direct Assignment:   Adapter-based isolation and switching for various virtual station instances enabling optimal CPU usage in virtualized environments. Additionally, ALL0140-2SFP+-10G provide Virtual Bridging support that delivers both host-side and switch-side control and management of virtualized I/O as well as the following modes of virtualized operation:VEPA : IEEE 802.1Qbg support for Virtual Ethernet Port AggregatorVEB: Virtual Ethernet Bridge support via Intel® VT Network Virtualization Network virtualization is the next big trend in creating an agile data center.  The ALL0140-2SFP+-10Gadapter is ready to help you take that next step.• VXLAN, NVGRE, GENEVE Offloads:  These stateless offloads preserve application performance for overlay networks. With these offloads it is possible to distribute network traffic across CPU cores. At the same time X710 offloads LSO, GSO, and check-sum from the  host software reducing CPU overhead. Intel® Ethernet Flow Director Flow Director is an advanced traffic steering capability built into the X710 controller. It consists of a large number of flow affinity filters that direct receive packets by their flows to queues for classification, load balancing, and matching between flows and CPU cores. It eliminates context switching required within the CPU. As a result, Flow Director significantly increasing the number of transactions per second and reduces latency for cloud applications like Memcached.Intelligent Offloads The Intel Xeon processor family has demonstrated increased computing performance and increased integration of key server subsystems generation after generation. To offload is to leverage the ever-escalating computing power of the Xeon processor where appropriate and implementing complementary accelerations in the network controller—this is what Intel refers to as ”intelligent offloads.” By employing a balanced hybrid of compute and offload, intelligent offloads are able to achieve the optimized point of performance and efficiency. This is most notably observed in the following usage models:• TCP Stateless Offloads:  Demonstrates leading performance vs. TOE solutions without restricting feature usage (TOE usage usually requires that key features be disabled). Supported stateless offloads include Checksum, TSO, VMDq, and RSS.• Host iSCSI /FCoE Initiators:  Providing exceptional performance without the need for full-offload HBA2 methods.• Flow Classification:  Trafficking data flows across multiple consumers and connections. Manageability ALL0140-2SFP+-10Galso incorporate the manageability required by IT personnel for remote control and alerting.  Communication to the Board Management Controller (BMC) is available either through an on-board SMBus port or the DMTF-defined NC-SI, providing a variety of management protocols, including IPMI, BMC Pass-thru, OS2BMC, and MCTP/SMBus and MCTP/PCIe. FEATURES General Intel® X710-BM2 10 Gigabit Ethernet Controller SFP+ Connectivity Low-profile Full-height Load balancing on multiple CPUs iSCSI remote boot support Fibre Channel over Ethernet (FCoE) support Support for most network operating systems RoHS-compliant Intel® PROSet Utility for Windows*Device Manager Time Sync (IEEE 1588*, 802.1as) I/O Features for Multi-core Processor Servers Intel® Flow Director MSI-X support Multiple Queues: 1,536 Tx and Rx queues per port Tx/Rx IP, SCTP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities Virtualization Features Next-Generation VMDq Up to 256 maximum VMDq VMs supported PCI-SIG SR-IOV Implementation (128 per device) Virtual Machine Load Balancing(VLMB) Advanced Packet Filtering VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags VXLAN and NVGRE Support Manageability  Features Preboote Xecution Environment (PXE) Support Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters iSCSI Boot Watchdog Timer Adapter Product Features Intel® PROSet Utility Plug and play specification support Receive Side Scaling Advanced Software Feature Adapter fault tolerance (AFT)           Switch fault tolerance (SFT) Adaptive load balancing (ALB) Teaming support IEEE 802.3ad (link aggregation control protocol) PCIe Hot Plug*/Active Periphera component interconnect (PCI) IEEE 802.1Q* VLANs IEEE 802.3 2005* flow control support Tx/Rx IP, TCP, & UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol(TCP), user datagram protocol (UDP), Internet protocol (IP) IEEE 802.1p* TCP segmentation large send offload MSI-X supports Multiple Independent Queues Interrupt moderation IPv6 offloading — Checksum and segmentation capability extended to new standard packet type Network Operating Systems (NOS) Software Support Windows Server* 2012 R2;  Windows Server 2012 R2 Core; Windows Server 2012;  Windows Server 2012 Core;  Windows Server 2008 R2;  Windows Server 2008 R2 Core;  Linux* Stable Kernel version 2.6.32/3x;  Linux* RHEL 6.5 and RHEL 7.0;  Linux* SLES 11 SP3 and SLES 12;  FreeBSD* 9 and FreeBSD* 10;  UEFI* 2.1; UEFI* 2.3;  VMware ESXi 5.1(Limited Functionality); VMware ESXi 5.5 Specifications General Connections Dual SFP+ cages for: • SFP+ SR fiber-optic transceivers • SFP+ LR fiber-optic transceivers • SFP+ Direct Attach cables Network Standard IEEE 802.3 Physical Layer Interface 10GBASE-SR (LRXP8510-X3ATL) 10GBASE-LR (LRXP1310-10ATL) SFF-8431: 10GSFP+ DAC (Direct Attach Copper) Technical Features Data rate supported per port • Optical: 1 GbE/10 GbE • Direct Attach: 10 GbE Bus type PCI Express 3.0 (8 GT/s) Bus Width x8 PCI Express Interrupt levels INTA, MSI, MSI-X Hardware certifications FCC, CE Controller-processor Intel® Ethernet Controller X710-BM2 Power Consumption Dual-port 10GBASE-SR Typical  Power 4.3W;  Maximum Power 4.8W Dual-port 1000BASE-SX Typical  Power 4.0W;  Maximum Power 4.3W Dual-port 10GBASE-LR Typical  Power 4.5W;  Maximum Power5.1W Dual-port Direct Attach (Twinax) Typical  Power 3.3W;  Maximum Power3.7W Air Flow Minimum of 1 50 LFM required Operating temperature 0 °C to 55 °C (32 °F to 131 °F) Storage temperature -40 °C to 70 °C (-40 °F to 158 °F) Storage humidity Maximum: 90% non-condensing relative humidity at 35 °C LED Indicators LINK (solid) and ACTIVITY (blinking) LINK SPEED (green=10 Gbps; yellow=1 Gbps) Ordering Information: M/N Description ALL0140-2SFP+-10G PCI Express v3.0 x8 Dual Port SFP+ 10 Gigabit Server Adapter (Intel X710-BM2 Based) PS: Above details are only for reference, if there are any changes, no inform will have.   ATTENTION: works only with INTEL or compatible MSA code GBICS Treiberdownload

Hightlights: Chipset: Intel JL82576EB PCIExpress host interface specification v2.0 with 2.5GT/s BUS width PCIExpress lanes: x4  MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASET, 100BASETX, and 10BASET applications (802.3, 802.3u, and 802.3ab) SerializerDeserializer (SERDES) to support 1000BaseSX/X/LX (optical fiber) for Gigabit backplane applications. Layer 2 functions: IEEE 802.3x Flow Control IEEE 802.1q VLAN Supports Receiveside scaling (RSS) Supports IPv 4, IPv 6 protocols Supports Jumbo Frames up to 9.5K Supports UDP.TCP and IP Checksum offloading  Statistics for management and RMON Support for virtual machines device queues Queues per port: 16 TX queues and 16 RX queues FullSpectrum Security Next Generation VMDq Support (8VMs) Interrupt throttling control to limit maximum interrupt rate and improve CPU usage The PCIe* v2.0 (2.5GT/s) Intel 82576 GbE Network adapter is a single, compact, low power component that offers two fully integrated Gigabit Ethernet Media Access Control (MAC) and physical layer (PHY) ports.  The 82576 enables two port implementation in a relatively small area and can be used for server system configurations such as rack mounted or pedestal servers, where the 82576 can be used as addon NIC or LAN on Motherboard (LOM) design.  Another system configuration is blade servers, where it can be used as LOM. The 82576 can also be used in embedded applications such as switch addon cards and network appliances. Technical Details: Essentials Product Collection Intel GbE Ethernet Server Adapter  Controller Processors Intel JL82576EB Bus Type/Bus Width PCI Express* 2.0 (2.5 GT/s) x4-lane, operable in x4, x8 and x16 slot Connections 2 x RJ45 Copper Data Rate Supported 10/100/1000 Mbps (Copper) Cable Distances Copper: up to 100 m Category-3 or higher for 10BASE-T operation Category-5 or higher for 100BASE-TX operation Category-5e or higher for 1000BASE-T operation Bracket Full-height bracket installed. Low-profile bracket included in package Dimension 113 mm x 69 mm (PCIe Board) Technical Specifications   IEEE standard/Network topology MDI (Copper) standard IEEE 802.3 Ethernet interface for 1000BASE-T, 100BASE-TX, and 10BASE-T applications (802.3, 802.3u, and 802.3ab) Interrupt Levels INTA, INTB, INTC, INTD, MSI, MSI-X System Requirements   Windows Client Windows 10/ 8.1/ 8/ 7 Windows Server 2008 R2/ 2012/ 2012 R2/ 2016/ 2019 Linux RHEL7.9/ 8.4/ 8.5, SLES12SP5, SLES15SP3, Ubuntu18.04LTS/ 20.04LTS, FreeBSD 12.2/ 13 Environment & Certification Storage Humidity Maximum 90% non-condensing relative humidity at 35 °C Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F) Operating Temperature 0 °C to 55 °C (32 °F to 131 °F) Connect Speed LED Indicators Not illuminated=10 Mb/s; green=100 Mb/s; amber=1 Gb/s (Copper) Marks CE   FCC   RoHS

Description: ALLNET ALL0137-1-40G-QSFP+ 40 Gigabit Ethernet PCI Express server adapter is designed for Servers and high-end appliances. ALL0137-1-40G-QSFP+ offer simple integration into any PCI Express X8 to 40Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications.   ALLNET ALL0137-1-40G-QSFP+ is based on Intel XL710AM1 Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation. ALLNET ALL0137-1-40G-QSFP+ is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.   Key Features: Performance Features: Support for jumbo frame up to 9.5KB Flow control support Priority Flow Control (draft IEEE 802.1Qbb) Enhanced Transmission Selection (draft IEEE802.1az) Statistics management and RMON 802.1q VLAN support DCB/DCB-X support Message Signal interrupts (MSI-X) Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FcoE   Host Interface: PCI Express X8 lanes Support PCI Express Base Specification 3.0 (8GT/sec)   LAN and Virtualization Features: Network Virtualization offloads for VXLAN and NVGRE Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE) Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh Physical Functions – Up to 8 per port, up to 16 per device Support for 128 Virtual Device Queues (VMDq) per port Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA) Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)   TCP/IP/L2 features: Receive Side Scaling (RSS) Large Send Offload (LSO) TCP/UDP/IP/SCTP Checksum Offload IPV4, IPV6   Technical Details: QSFP+ 40Gigabit Ethernet Technical Specifications Adapter: QSFP+ (Quad Small Formfactor Pluggable) supports: XLPPI interfaces supports 40GBase-R PCS and 40 Gigabit PMA in order to connect with QSFP+ to 40GBase-SR4 / 40GBase-LR4 / 40G Direct Attach Cable IEEE Standard /Network topology: with 40GBase-SR4 QSFP+ Fiber 40Gigabit Ethernet, 40GBASE-SR4 (850nm LAN PHY). IEEE Standard /Network topology: with 40GBase-LR4 QSFP+ Fiber 40Gigabit Ethernet, 40GBASE-LR4 (1310nm LAN PHY) Operating Systems Support Operating system support: Windows Linux General Technical Specifications Interface Standard: PCI-Express Base Specification Revision 3.0 (8 GT/sec) Board Size: 165mm X 69mm(6.496 X 2.717) PCB thickness is 0.062 inch PCI Express Card Type: X8 Lane PCI Express Voltage +12V +- 8% PCI Connector: X8 Lane Controller: Intel XL710AM1 Holder: Metal Bracket Weight: 130gr (4.568 oz) Power Consumption 3.600W Operating Humidity: 0%–90%, non-condensing Operating Temperature: 0°C – 45°C (32°F – 113°F) Storage: -40°C–65°C (-40°F–149°F) EMC Certifications: FCC PART 15B EN 55022: 2010 EN 55024: 2010 EN 61000-3-2:2014 EN 61000-3-3:2013 LEDs LEDs: Link 10G :Green Link 40G: Yellow Act: Blue;Blink on Activity   Connectors: (1) QSFP+ cage: MOLEX, P/N 75586-0010, or compatible.

• LAN-Adapter • Anschluss: 2x RJ-45 • PCIe-Karte

• LAN-Adapter • Anschluss: 2x SFP+ • PCIe-Karte

10GBASE-T converged network adapter simplifies migration to 10 GbE, provides iSCSI, FCoE, Virtualization, and Flexible Port Partitioning. 10 Gigabit for the Broad Market The ALL0139-2-10G-TX is the latest innovation in Intel's leadership to drive 10 Gigabit Ethernet into the broader server market. This adapter hosts Intel's latest Ethernet silicon, the Intel Ethernet Controller X540, which is used by many OEMs as a single chip solution for LAN on Motherboard (LOM) to deliver 10 Gigabit Ethernet(10 GbE) on the latest server platforms. 10GBASE-T Simplifies the Transition to 10 GbE The ALL0139-2-10G-TX 10GBase-T works with existing networks today. It works with legacy Gigabit Ethernet (GbE) switches and Cat 6A cabling. Install the ALL0139-2-10G-TX 10GBase-T adapter into a server and the auto-negotiation between 1 GbE and 10GbE provides the necessary backwards compatibility that most customers require for a smooth transition and easy migration to 10 GbE. When time and budget allows, 10GBASE-T switches can be added any time to experience the full benefits of 10GbE. 10GBASE-T uses the copper twisted pair cables that are very familiar to IT professionals today. It is everything you know and love about 1000BASE-T. The knowledge, training and investment in BASE-T are preserved. 10GBASE-T is the easiest and most versatile 10 GbE and you can deploy it anywhere in your data center. Its flexible reach from 1 meter to 100 meters supports the latest network architectures including Top of Rack (ToR), Middle of Row (MoR), and End of Row (EoR). 10G Performance at Low Cost and Low Power The ALL0139-2-10G-TX 10GBase-T adapter is the lowest cost way to deploy 10 GbE in your data center today. The ALL0139-2-10G-TX uses low cost, Cat 6 and Cat 6A cabling. Chances are this cabling already exists in the data center. A way for Intel to reduce cost and power is to integrate components into a single- chip solution. Of course, integration is what Intel does best. With the new Intel X540 Controller, the MAC and the PHY are integrated into a single-chip solution. So, why is integration important? First, integration translates to lower power. A single-chip solution simply uses less power than two separate components. This means no more active heat sink and reduces the per-port power consumption. Second, integration also means lower cost per port. Manufacturing a single part costs less than two. When cabling is accounted for, cost efficiencies realized from a single part mean 10GBASE-T is the lowest cost media to deploy. With lower cost and power, 10GBASE-T is ready for broad deployment. 10GBASE-T is an option for every rack and tower server in the data center. The wait for a low cost 10 GbE copper solution to broadly deploy 10 GbE to all corners of the data center is over. The ALL0139-2-10G-TX 10GBase-T adapter  provides bandwidth-intensive applications with highly affordable 10 GbE network performance and cost-effective RJ-45 connectivity for distances up to 100 meters. Exciting New data Center usage Models More than simply a 10x increase in performance, with 10GbE there are exciting new usage models that are now possible, including Unified Networking (iSCSI, FCoE and LAN), Virtualization (VMDq and SR- IOV), and now, Flexible Port Partitioning (FPP). Flexible I/O Virtualization Virtualization changes the way server resources are deployed and managed by running multiple applications and operating systems independently on a single server. The ALL0139-2-10G-TX 10GBase-T adapter includes Intel Virtualization Technology for connectivity (Intel VT-c) to deliver I/O virtualization and Quality of Service (QoS) features designed directly into the Intel X540 controller on the adapter. Intel I/O virtualization advances network connectivity models used in today's servers to more efficient models by providing FPP, multiple Rx/Tx queues, and on-controller QoS functionality that can be used in both virtual and non-virtual server deployments. Flexible Port Partitioning (FPP) By taking advantage of the PCI-SIG SR-IOV specification, Intel Ethernet products enable FPP. With FPP, virtual controllers can be used by the Linux* host directly and/or assigned to virtual machines. FPP allows you to use the functionality of SR-IOV to assign up to 63 processes per port to virtual functions in Linux. This enables an administrator to partition their 10 GbE bandwidth across multiple processes, ensuring a QoS by giving each assigned process equal bandwidth. Network administrators may also rate-limit each of these services to control how much of the 10GbE pipe is available to each process. Unified Networking Unified Networking solutions on the ALL0139-2-10G-TX 10GBase-T adapter let you combine the traffic of multiple data center networks like LAN and SAN onto a single efficient network fabric. You now have the choice of NFS, iSCSI, or Fibre Channel over Ethernet (FCoE) to carry both network and storage traffic at speeds of up to 10 Gbps. The ALL0139-2-10G-TX 10GBase-T adapter combines support for all of these traffic types in one adapter at no additional cost and with no additional licensing fees for the adapter. Intel's Unified Networking solutions are enabled through a combination of standard Intel Ethernet products along with trusted network protocols integrated in the operating systems. Thus, Unified Networking is available on every Server either through LAN-on-Motherboard (LOM) implementation or via an add-in Network Interface Card (NIC). Intel has delivered high quality Ethernet products for over 30 years and our Unified Networking solutions are built on the original principles that made us successful in Ethernet: Open Architecture integrates networking with the server, enabling IT managers to reduce complexity and overhead while enabling a flexible and scalable data centre network. Intelligent offloads lower cost and power while delivering the application performance that customers expect. Proven Ethernet unified Networking is built on trusted Intel Ethernet technology, enabling customers to deploy FCoE or iSCSI while maintaining the quality of their traditional Ethernet networks. iSCSi Simplifies SAN Connectivity iSCSI uses Ethernet to carry storage traffic, extending the familiarity and simplicity of Ethernet to storage networking, without the need for SAN-specific adapters or switches. ALL0139-2-10G-TX is the easiest, most reliable, and most cost-effective way of connecting servers to iSCSI SANs. Open FCoE Consolidates LANs and Legacy SANs Intel's Open FCoE solution enables ALL0139-2-10G-TX (adapters and controllers) to support Fibre Channel payload encapsulated in Ethernet frames. There is no upgrade charge for Open FCoE on the adapter. Just as with iSCSI, now customers can easily connect to an FCoE network with Intel 10 GbE solutions. For the first time, Open-FCoE is now supported on 10GBASE-T. As 10GBASE-T switches come to market enabled with FCoE support, the ALL0139-2-10G-TX is ready when you're ready. This enables you to use cost-effective 10GBASE-T for all your converged networking needs. The Open- FCoE architecture uses a combination of FCoE initiators in Microsoft Windows*and Linux* operating systems and in the VMware* ESXi hypervisor to deliver high-performance FCoE solutions using standard 10 GbE Ethernet adapters. This approach enables IT managers to simplify the data center and standardize on a single adapter for LAN and SAN connectivity. The ALL0139-2-10G-TX is designed to fully offload the FCoE data path to deliver full-featured converged network adapter (CNA) functionality without compromising on power efficiency and interoperability Data Center Bridging (DCB) delivers Lossless Ethernet Conventional Ethernet does not guarantee successful data delivery, which is not acceptable for SAN traffic. Ethernet enhancements such as Data Center Bridging (DCB) overcome that limitation with technologies that guarantee lossless delivery, congestion notification, priority-based flow control, and priority groups. The combination of 10 GbE and unified networking helps organizations overcome connectivity challenges and simplify the data center infrastructure. 10 GbE provides a simple, well-understood fabric for virtualized data centers, one that helps reduce cost and complexity as the number of virtual machines continues to grow. Order Information: M/N Model DesDescription LREALL0139-2-10G-TX PCI PCI Express x8 Dual Copper Port 10GBase-T Server Adapter (Intel X540AT2 Based) PS: Above details are only for reference, if there is any change, no prior notice.

Description: ALLNET ALL0137-2-40G-QSFP+, Dual QSFP+ Fiber 40 Gigabit Ethernet PCI Express server adapter is designed for Servers and high-end appliances. ALL0137-2-40G-QSFP+ offer simple integration into any PCI Express X8 to 40Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. ALLNET ALL0137-2-40G-QSFP+ is based on Intel XL710AM2 Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation. ALLNET ALL0137-2-40G-QSFP+ is the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.   Key Features Performance Features: Support for jumbo frame up to 9.5KB Flow control support Priority Flow Control (draft IEEE 802.1Qbb) Enhanced Transmission Selection (draft IEEE802.1az) Statistics management and RMON 802.1q VLAN support DCB/DCB-X support Message Signal interrupts (MSI-X) Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS, iSCSI and FcoE   Host Interface: PCI Express X8 lanes Support PCI Express Base Specification 3.0 (8GT/sec)   LAN and Virtualization Features: Network Virtualization offloads for VXLAN and NVGRE Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,FCoE) Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh Physical Functions – Up to 8 per port, up to 16 per device Support for 128 Virtual Device Queues (VMDq) per port Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA) Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines (VMs)   TCP/IP/L2 features: Receive Side Scaling (RSS) Large Send Offload (LSO) TCP/UDP/IP/SCTP Checksum Offload IPV4, IPV6 Technical Details: QSFP+ 40Gigabit Ethernet Technical Specifications Adapters: QSFP+ (Quad Small Formfactor Pluggable) supports: XLPPI interfaces supports 40GBase-R PCS and 40 Gigabit PMA in order to connect with QSFP+ to 40GBase-SR4 / 40GBase-LR4 / 40G Direct Attach Cable IEEE Standard /Network topology: with 40GBase-SR4 QSFP+ Fiber 40Gigabit Ethernet, 40GBASE-SR4 (850nm LAN PHY). IEEE Standard /Network topology: with 40GBase-LR4 QSFP+ Fiber 40Gigabit Ethernet, 40GBASE-LR4 (1310nm LAN PHY) Operating Systems Support Operating system support: Windows Linux General Technical Specifications Interface Standard: PCI-Express Base Specification Revision 3.0 (8 GT/sec) Board Size: 165mm X 69mm(6.496 X 2.717) PCB thickness is 0.062 inch PCI Express Card Type: X8 Lane PCI Express Voltage +12V +- 8% PCI Connector: X8 Lane Controller: Intel XL710AM2 Holder: Metal Bracket Weight: 170 gr (5.997 oz) Power Consumption: 2.880 W Operating Humidity: 0%–90%, non-condensing Operating Temperature: 0°C – 45°C (32°F – 113°F) Storage: -40°C–65°C (-40°F–149°F) EMC Certifications: FCC PART 15B EN 55022: 2010 EN 55024: 2010 EN 61000-3-2:2014 EN 61000-3-3:2013 LEDs LEDs: Link 10G: Green Link : 40GYellow Act: Blue;Blink on Activity Connectors: (2) QSFP+ cage: MOLEX, P/N 75586-0010, or compatible.
