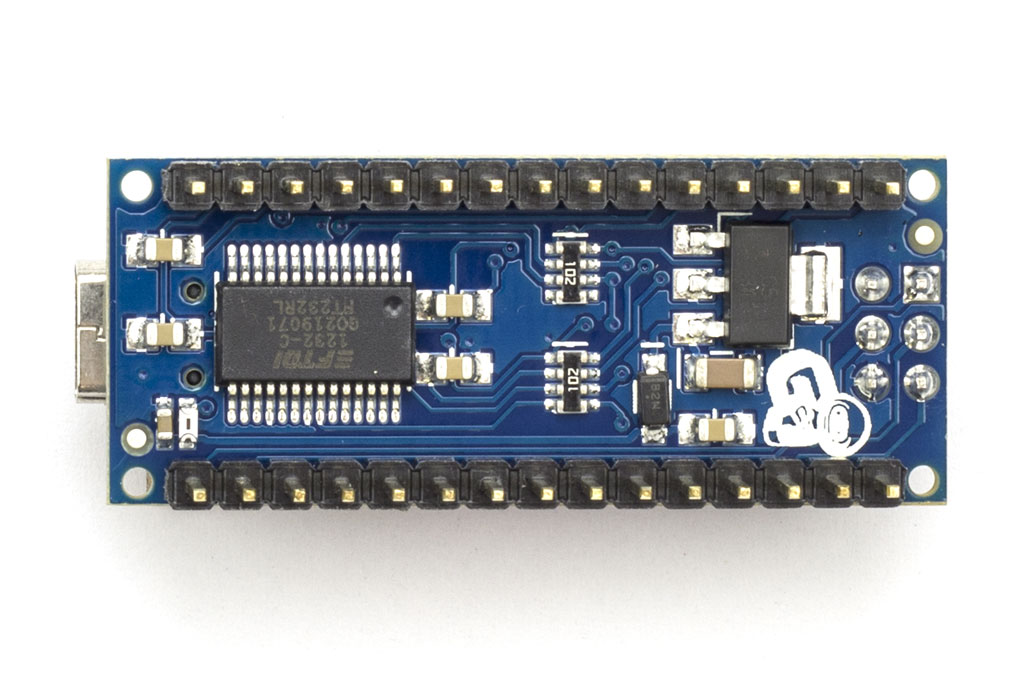

Arduino® Board Nano
UVP Netto: 21,60 €
Bestand:
68x
Sofort verfügbar, Lieferzeit: 1-2 Tage
Artikel-Nr.:
118807
EAN:
8058333490342
Herstellernummer:
A000005
Intrastat ID:
85176200
Ursprungsland:
Italy
Garantie:
12 Monate
Gewicht:
0,016 KG
Produktinformationen "Arduino® Board Nano"
Nano
The Arduino Nano is a compact board similar to the UNO.
Produktübersicht
The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328 (Arduino Nano 3.x). It has more or less the same functionality of the Arduino Duemilanove, but in a different package. It lacks only a DC power jack, and works with a Mini-B USB cable instead of a standard one.
Technische Spezifikationen
| Microcontroller | ATmega328 |
| Architecture | AVR |
| Operating Voltage | 5 V |
| Flash Memory | 32 KB of which 2 KB used by bootloader |
| SRAM | 2 KB |
| Clock Speed | 16 MHz |
| Analog IN Pins | 8 |
| EEPROM | 1 KB |
| DC Current per I/O Pins | 40 mA (I/O Pins) |
| Input Voltage | 7-12 V |
| Digital I/O Pins | 22 (6 of which are PWM) |
| PWM Output | 6 |
| Power Consumption | 19 mA |
| PCB Size | 18 x 45 mm |
| Weight | 7 g |
| Product Code | A000005 |
