ALLNET Kameras

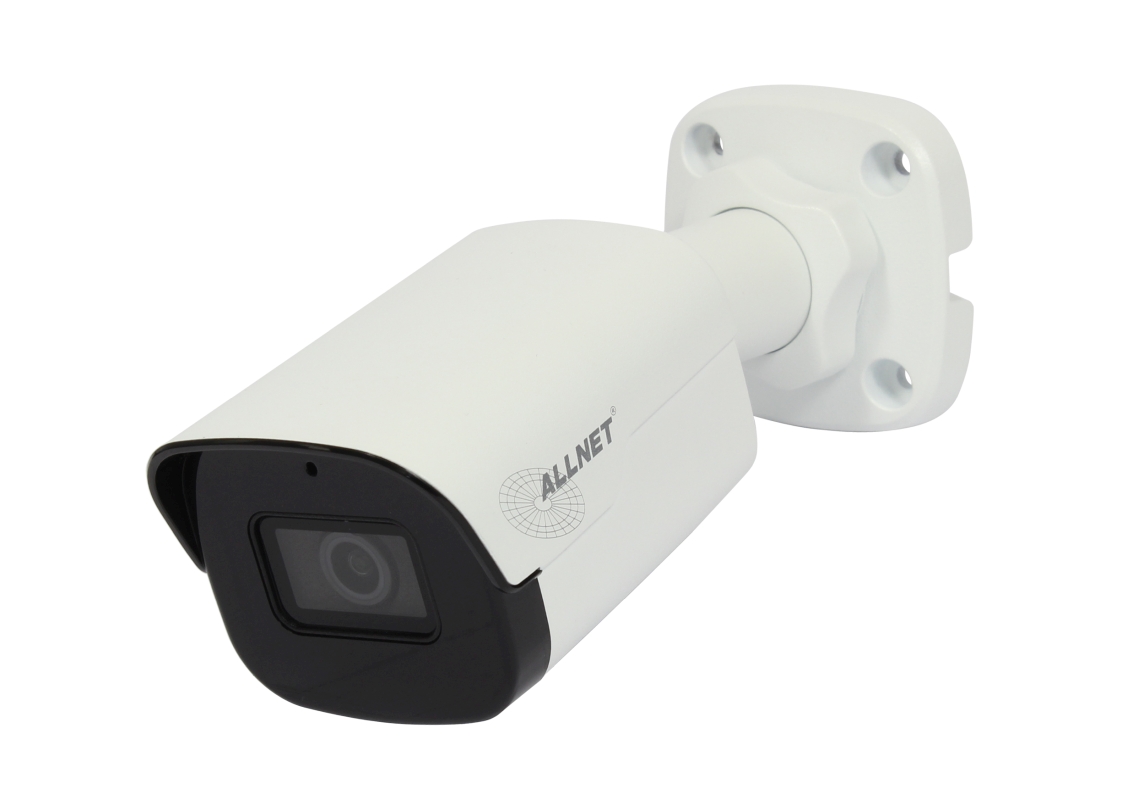

Highlights: Hohe Bildqualität mit 5MP, 1/2.7 "CMOS Sensor 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps Ultra 265, H.265, H.264, MJPEG LightHunter-Technologie sorgt für ultrahohe Bildqualität bei geringer Beleuchtung 120dB true WDR Technologie ermöglicht ein klares Bild bei starken Lichtverhältnissen Unterstützt 9:16 Korridormodus Eingebautes Mikrofon Smart IR, bis zu 40m (131ft) IR-Abstand Unterstützt 256 G Micro SD Karte IP67-Schutz Unterstützt PoE-Stromversorgung Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx    Technical Details:   ALL-CAM2497v3-LEN Camera Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS Lens 2.8mm@F1.6 4.0mm@F1.6 DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4.0 90.0 36.0 18.0 9.0 Angle of View (H) 78.7° Angle of View (V) 44.9° Angle of View (O) 89.2° Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on Digital noise reduction 2D/3D DNR Day/Night IR-cut filter with auto switch (ICR) S/N >56dB IR Range Up to 40m (131 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; 9:16 Corridor Mode Supported Video Bit Rate 128 Kbps~16 Mbps OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Supported Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Audio Audio Compression G.711 Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR, NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation EZView EZLive Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Interface Network 1 RJ45 10M/100M Base-TX Ethernet Built-in Mic Supported Certifications Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 5.0W Dimensions (L × W × H) 155.9 × 63.1 × 62.7mm (6.1” × 2.5” × 2.5”) Net Weight 0.425kg (0.93lb) Material Metal Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 2KV Ingress Protection IP67 Reset Button Supported

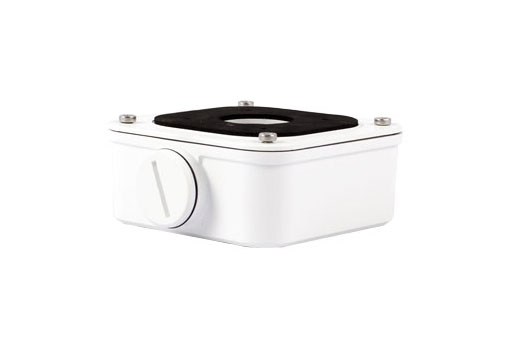

Junction box for mini bullet dome camera(Extra back outlet), 93mmx93mmx43mm(3.7” x3.7”x 1.7”) Bracket ALL-CAM2497-LEN Junction Box Application Junction box for mini bullet dome camera(Extra back outlet) Dimensions 93mmx93mmx43mm(3.7” x3.7”x 1.7”) Weight 0.2kg(0.44lb) Material Aluminum alloy

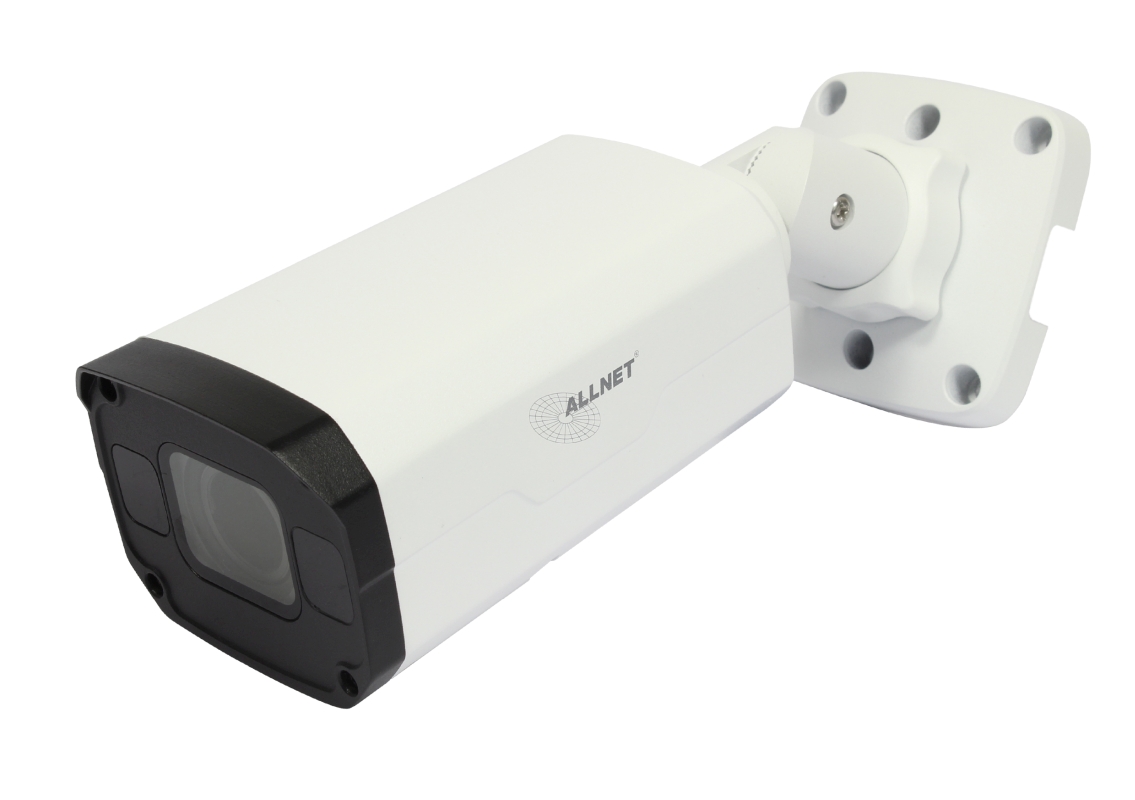

Highlights: Optik 1/2,7'', mit Lichtquelle SmartIR, bis zu 50m (164 ft) IR Entfernung Bis zu 120 dB optischer WDR (Wide Dynamic Range) Komprimierung Ultra 265, H.265, H.264, MJPEG  Dreifach-Streams  2592*1944@20fps im Hauptstrom ROI (Region von Interesse) Netzwerk ONVIF-Konformität Aufbau DC12V oder PoE-Stromversorgung Großer Spannungsbereich von ±25% in DC Micro SD, bis zu 256 GB Alarm 1 Eingang und 1 Ausgang, Audio 1 Eingang und 1 Ausgang IP67 Schutz gegen Eindringen IK10 vandalismusgeschützt     Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx  Technical Details:   ALL-CAM2496v2-LEFN Camera Sensor 1/2.7",5.0 megapixel, progressive scan, CMOS Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.7 60.8 24.3 12.2 6.1 13.5 303.8 121.5 60.8 30.4 Angle of View (H) 106.25°~ 30.42° Angle of View (V) 56.36°~ 17.22° Angle of View (O) 110.34°~34.18° Adjustment angle Pan: 0° ~ 360° Tilt: 0° ~ 90° Rotate: 0° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour: 0.002Lux (F1.2, AGC ON) 0Lux with IR on Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >56 dB IR Range Up to 50m (164ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Supported Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Audio Audio Compression G.711 Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation EZView EZLive Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Interface Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] Alarm I/O 1/1 Network 1 RJ45 10M/100M Base-TX Ethernet Certifications Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 8.0 W Dimensions (L × W × H) 245 × 86 × 72mm (9.6” × 3.4” × 2.8”) Net Weight 0.92kg (2.0lb) Material Metal Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 6KV Ingress Protection IP67 Vandal Resistant IK10 Reset Button N/A

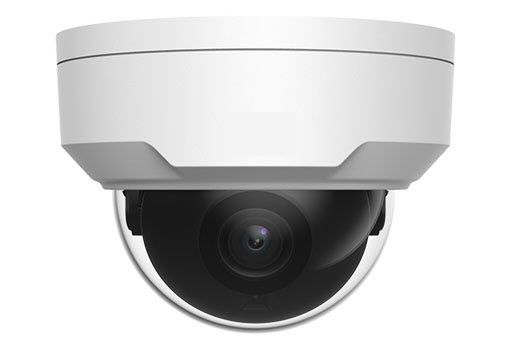

Highlights: Hohe Bildqualität mit 5MP, 1/2.7 "CMOS Sensor 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps Ultra 265, H.265, H.264, MJPEG LightHunter-Technologie sorgt für ultrahohe Bildqualität bei geringer Beleuchtung 120dB true WDR Technologie ermöglicht ein klares Bild bei starken Lichtverhältnissen Unterstützt 9:16 Korridormodus Alarm: 1 Eingang/1 Ausgang, Audio: 1 Eingang/1 Ausgang Smart IR, bis zu 30m (98ft) IR Entfernung Unterstützt 256 G Micro SD Karte IK10 vandalismusgeschützt IP67-Schutz Unterstützt PoE-Stromversorgung  Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx  Technical Details:   ALL-CAM2488v3-LVEN Camera Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS Lens 4.0mm@F1.6 DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4.0 90.0 36.0 18.0 9.0 Angle of View (H) 78.7° Angle of View (V) 44.9° Angle of View (O) 89.2° Adjustment angle Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360° Shutter Auto/Manual, 1 ~ 1/100000s Minimum Illumination Colour:0.003 Lux (F1.6, AGC ON) 0Lux with IR Day/Night IR-cut filter with auto switch (ICR) Digital Noise Reduction 2D/3D DNR S/N >56dB IR Range Up to 30m (98ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog WDR 120dB Video Video Compression Ultra 265, H.265, H.264, MJPEG H.264 code profile Baseline profile, Main profile, High profile Frame Rate Main Stream:5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps OSD Up to 8 OSDs Privacy Mask Up to 4 areas ROI Up to 8 areas Motion Detection Up to 4 areas Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise Dewarping N/A HLC Supported BLC Supported Audio Audio Compression G.711 Two-way audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation EZView EZLive Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ Interface Audio I/O Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] Alarm I/O 1/1 Network 1 RJ45 10M/100M Base-TX Ethernet Certifications Certifications CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 General Power DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 4.5W Dimensions (Ø x H) Φ108.7 x 81.1mm (Ø4.3” x 3.2”) Net Weight 0.425kg (0.93lb) Material Metal + Plastic Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Surge Protection 2KV Ingress Protection IP67 Vandal Resistant IK10 Reset Button N/A

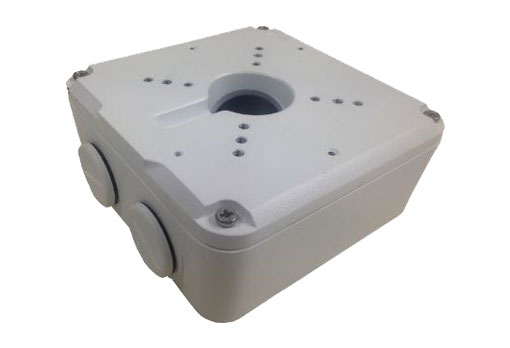

Outdoor or indoor cable junction box for ALL-CAM2496 (Extra back outlet) 125mmx125mmx55mm (4.9” x4.9” x2.2”)   Model ALL-CAM2496-LEFN_Junction_Box Application Outdoor or indoor cable junction box for IPC2XX and IPC74X series(Extra back outlet) Dimensions 125mmx125mmx55mm (4.9” x4.9” x2.2”) Weight 0.74kg(1.63lb) Material Aluminum alloy

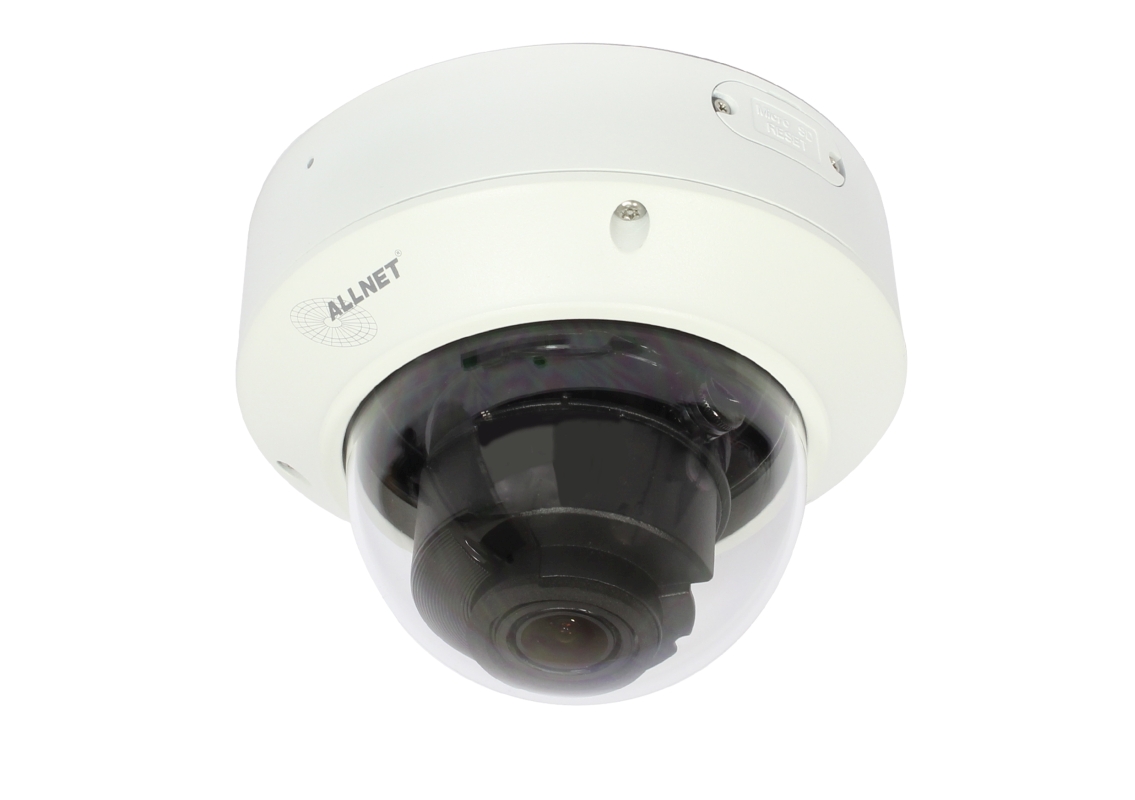

Highlights: Optik 1/2,7'', Lichtquelle: Lighthunter Smart IR, bis zu 50m (164 ft) IR Entfernung Bis zu 120 dB optischer WDR (Wide Dynamic Range) Komprimierung Ultra 265, H.265, H.264, MJPEG Dreifach-Streams 2592*1944@20fps im Hauptstrom ROI (Region von Interesse) Netzwerk ONVIF-Konformität Aufbau DC12V oder PoE-Stromversorgung Großer Spannungsbereich von ±25% in DC Micro SD, bis zu 256 GB Alarm 1 Eingang und 1 Ausgang, Audio 1 Eingang und 1 Ausgang IP67 Schutz gegen Eindringen IK10 vandalismusgeschützt Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx  Technical Details:   ALL-CAM2495v3-LVEFN Camera   Sensor 1/2.7", 5.0 megapixel, progressive scan, CMOS Lens 2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens Iris Auto aperture DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 2.7 70.9(232.5ft) 28.4(93.0ft) 14.2(46.5ft) 7.1(23.3ft) 13.5 247.5(812.0ft) 99.0(324.8ft) 49.5(162.4ft) 24.8(81.2ft) Angle of View (H) 26.8°~93.1° Angle of View (V) 20.7°~66.0° Angle of View (O) 31.6°~121.0° Shutter Auto/Manual, 1 ~ 1/100000s Adjustment angle Pan: 0°~355° Tilt: 0°~80° Rotate: 0°~355° Min. Illumination Colour:0.002ux (F1.2, AGC ON) 0 lux with IR WDR 120dB Day/Night IR-cut filter with auto switch (ICR) IR Range Up to 50m (164 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Defog Digital Defog Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps Video Bit Rate 128 Kbps~16 Mbps ROI Supported Video stream Triple streams OSD Up to 8 OSDs Privacy Mask Up to 8 areas(8 blacks/8 mosaics) Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital noise reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise HLC Support BLC Support Events General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U, G.711A Two-way Audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Client EZStation EZLive Ezview Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Interface Audio I/O Audio cable 1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 output: impedance 600Ω; amplitude 2V [p-p] Alarm I/O 1/1 Network 1 * RJ45 10M/100M Base-TX Ethernet Certification Certifications CE: EN 60950-1 UL: UL 60950-1 FCC: FCC Part 15 General   Power   DC12V(±25%), PoE(IEEE 802.3af) Power consumption: Max 8W Support overcurrent protection, Input short circuit protection Dimensions (Ø x H) Φ148.0 x 111.4mm (Φ5.8’’ x4.4’’) Weight 0.93kg(2.05lb) Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) Storage Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) Surge protection 6KV Vandal Resistant IK10 Ingress Protection IP67

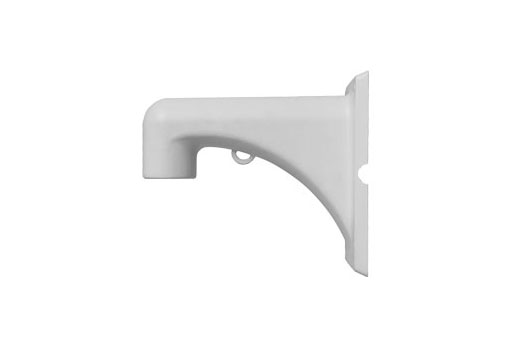

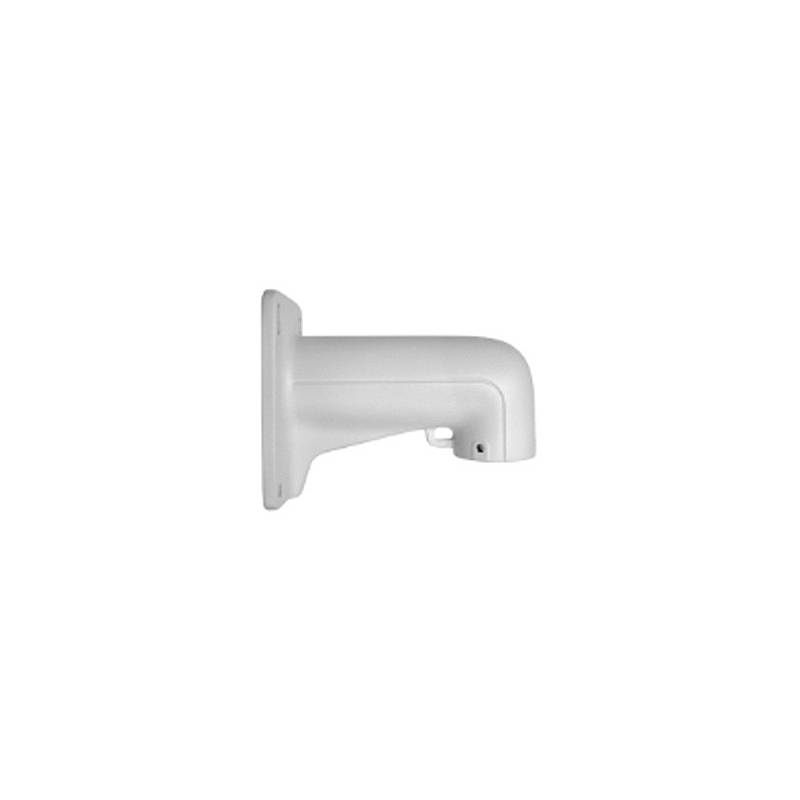

Indoor or outdoor, wall installation short for PTZ dome camera ALL-CAM2498-LEP 230.3mmx141mmx201.5mm (9.1”x5.6”x7.9”) Material: Aluminum alloy Bracket ALL-CAM2498-LEP_Wall_Mount Application Indoor or outdoor, wall installation for PTZ dome camera Dimensions(L × W × H) 230.3mmx141mmx201.5mm (9.1”x5.6”x7.9”) Weight 0.79kg(1.74lb) Material Aluminum alloy

Wallmount Installation with Junction Box (Extra back outlet for Cable) 253mmx125mmx125mm (10” x4.9” x4.9”) Bracket ALL-CAM2495-LVEF_Wallm_Junction Application Outdoor, wall installation for 4-inch fixed dome(Extra back outlet) Dimensions 253mmx125mmx125mm (10” x4.9” x4.9”) Weight 0.92kg(2.02lb) Material Aluminum alloy

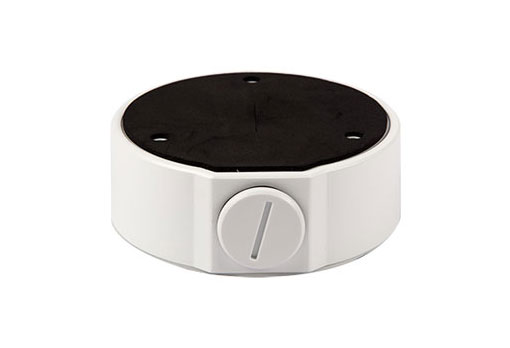

Junction box for ALL-CAM2488-LVEN fixed dome camera dimension: 109mmx39mm (4.3” x1.5”)   Bracket ALL-CAM2488-LVEN_Junction_Box Application Junction box for IPC32X Series fixed dome and mini dome camera Dimensions Φ109mmx39mm (4.3” x1.5”) Weight 0.2kg(0.44lb) Material Aluminum alloy

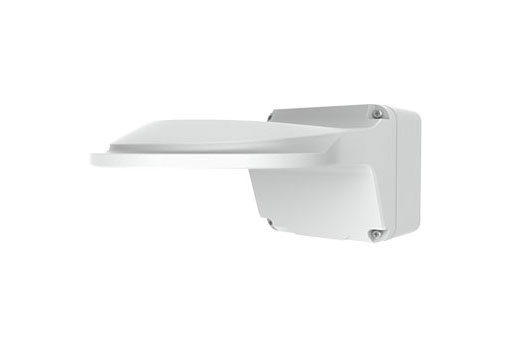

Wallmount Installation with Junction Box (Extra back outlet for Cable) 126.2mmx126.2mmx233mm (5” x5” x9.2”)

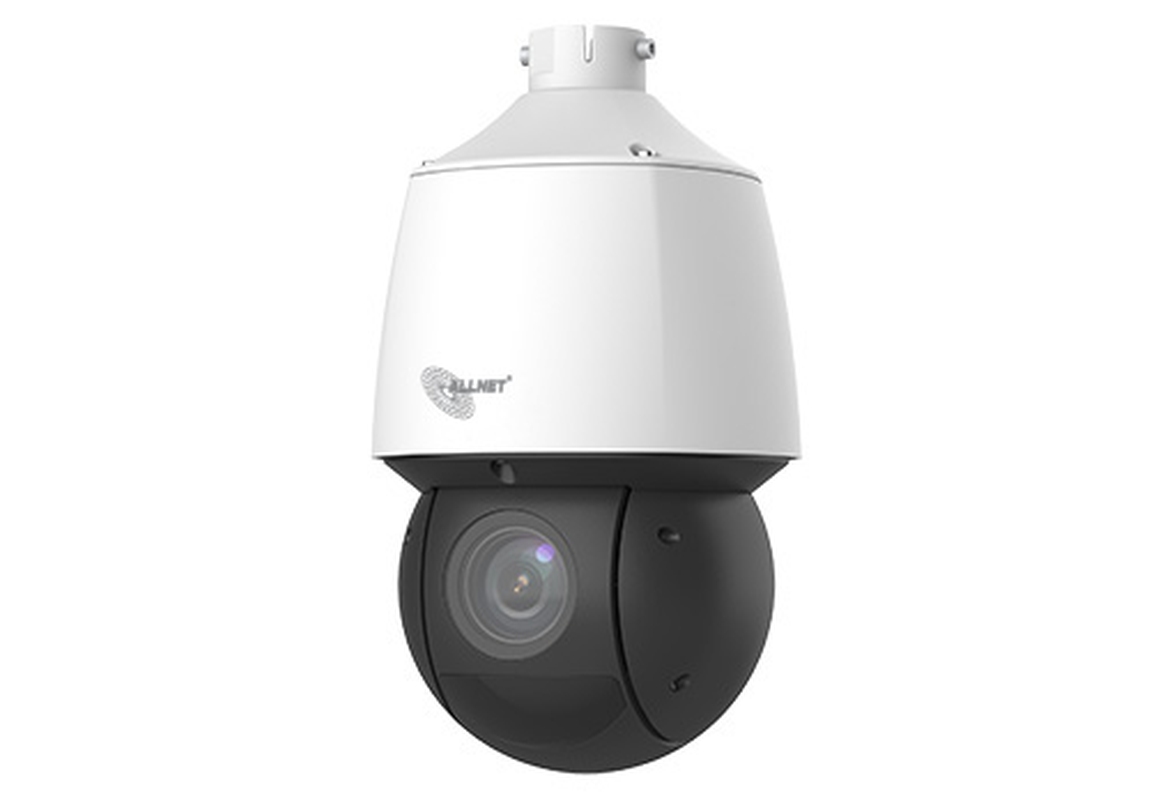

ALLNET IP Kamera PTZ / Outdoor / 4MP / IR / IP67 / IK10 / 25x opt. Zoom / Motion-Tracking / "ALL-CAM2498v2-LEP" 4MP 25x Lighthunter Network PTZ Dome Camera Highlights: Hohe Bildqualität mit 4MP, 1/2.8'' CMOS Sensor 2688*1520@30fps im Hauptstream Ultra 265, H.265, H.264, MJPEG Dreifach-Streams 25facher optischer Zoom Lighthunter-Technologie sorgt für ultrahohe Bildqualität bei geringer Beleuchtung Smart IR, bis zu 100m (328ft) IR-Abstand DC 12V±25% oder PoE+ (IEEE 802.3at) Alarm 2 Eingänge und 1 Ausgang, Audio 1 Eingang und 1 Ausgang IP67 Schutz gegen Eindringen IK10 vandalismus geschützt Links zu direkten Streams siehe = https://service.allnet.de/index.php?/Knowledgebase/Article/View/347/0/ipcamera---link-fr-den-direkten-stream---all-cam24xx  Technical Details:   ALL-CAM2498v2-LEP Camera Sensor 1/2.8", 4.0 megapixel, progressive scan, CMOS Min. Illumination Colour: 0.003 Lux (F1.5, AGC ON) 0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Shutter Auto/Manual, 1 ~ 1/100000s WDR 120dB S/N >56dB Lens Lens type 4.8 ~ 120mm, AF automatic focusing and motorized zoom lens Digital Zoom 16 Optical Zoom 25 Iris Auto; F1.5 ~ F3.8 Angle of View (H) 52.20°~2.74° Angle of View (V) 30.81°~1.54° Angle of View (O) 64.20°~3.23° DORI DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 4.8 119.3(391.2ft) 47.7(156.5ft) 23.9(78.2ft) 11.9(39.1ft) 120 2475.0(8120.1ft) 990.0(3248.0ft) 495.0(1624.0ft) 247.5(812.0ft) Illuminator IR Range Up to 100m (328 ft) IR range Wavelength 850nm IR On/Off Control Auto/Manual Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 4MP(2688*1520),Max 30fps; Sub Stream: 2MP (1920*1080), Max 30fps; Third Stream: D1 (720*576), Max 30fps; Video Bit Rate 128 Kbps~16 Mbps U-code Support ROI Support Video Stream Triple streams OSD Up to 8 OSDs Privacy Mask 24 areas, up to 4 areas per scene Image White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Digital Noise Reduction 2D/3D DNR Smart IR Support Flip Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise HLC Support BLC Support Defog Digital Defog Events Basic Detection Motion detection, Audio detection, Tampering Alarm Auto Tracking Support General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711U,G.711A Audio Bitrate 64 Kbps Two-way Audio Support Suppression Support Sampling Rate 8 kHz Storage Edge Storage Micro SD, up to 256 GB Network Storage ANR,NAS(NFS) Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API,SDK User/Host Up to 32 users. 2 user levels: administrator and common user Security Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF Client EZStation EZLive EZView Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Pan & Tilt Pan Range 360° (endless) Pan Speed 0.1°/s ~ 200°/s Preset speed: 240°/s Tilt Range –15° ~ 90° (auto reverse) Tilt Speed 0.1°/s ~ 120°/s Preset speed: 200°/s Number of Presets 1024 Preset Patrol 16 patrols, up to 64 presets for each patrol Route Patrol 16 patrols, up to 32 actions for each patrol Recorded Patrol 16 patrols, up to 128 actions for each patrol Patrol Stay Time   15s~1800s Preset Image Freeze Support Home Position Support Interface Audio I/O 1/1 Alarm I/O 2/1 Serial Port 1 RS485 Built-in Mic N/A Built-in Speaker N/A WIFI N/A Network 1 * RJ45 10M/100M Base-TX Ethernet Video Output 1 BNC Certification EMC FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 Safety IEC 62368-1 EN 62368-1 UL 60950-1 Environment CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) General   Power   DC12V(±25%,3A), PoE+(IEEE 802.3at) Power consumption: MAX 21W Power Interface Ø 5.5mm coaxial power plug Dimensions (Ø x H) Ø166 x 295mm (Ø6.5” x 11.6”) Weight 3.05kg(6.72lb) Working Environment -40°C~70°C(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) Storage Environment -40°C~70°C(-40°F ~ 158°F),Humidity: ≤95% RH (non-condensing) Surge Protection 6KV Reset Button Support Protection Ingression protection: IP67 Vandal resistant: IK10

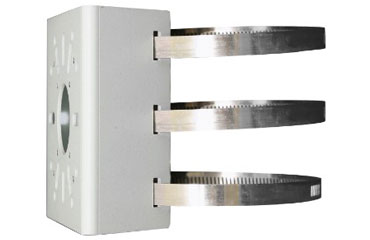

Outdoor, pole or rail installation for following ALLNET ALL-CAM2496/ALL-CAM2495/ALL-CAM2497 Please note: Junction-Box is extra needed for your specific IP-Camera Bracket ALL-CAM24xx zbh. Pole-Mount/Masthalter Application Outdoor, pole or rail installation Dimensions(L × W × H) 120mmx120mmx53.4mm(4.7”x4.7”x2.1”) Weight 0.45kg(0.99lb) Material Galvanized sheet

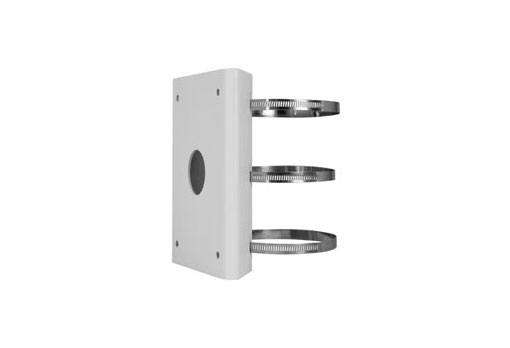

Indoor or outdoor, pole installation for PTZ dome camera ALL-CAM2498-LEP Dimensions: 215mmx170mmx52mm (4.7”x4.7”x2.1”) Material: Steel Please note: the wall bracket/Wallmount short is still absolutely necessary Bracket ALL-CAM2498-LEP_Pole_Mount Application Indoor or outdoor, pole installation for PTZ dome camera Dimensions(L × W × H) 215mmx170mmx52mm (4.7”x4.7”x2.1”) Weight 1.47kg(3.2lb) Material Steel

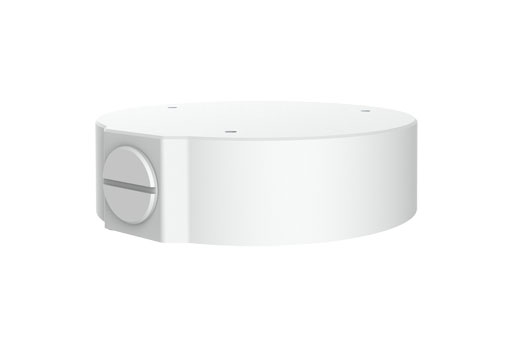

Wallmount Installation with Junction Box (Extra back outlet for Cable) 253mmx125mmx125mm (10” x4.9” x4.9”) Bracket ALL-CAM2495-LVEFN_Junction_Box Application Wall installation for IPC323 Series fixed dome Dimensions Φ145mmx40mm (5.7” x1.6”) Weight 0.24kg(0.5lb) Material Aluminum alloy

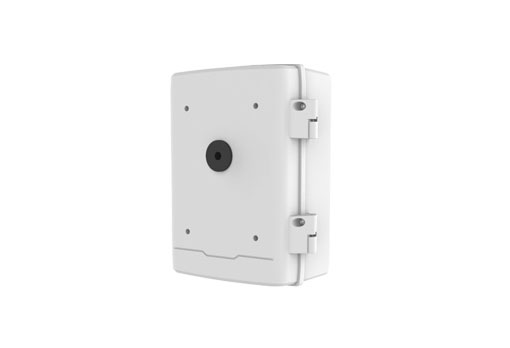

Outdoor or indoor cable junction box for PTZ Dome series ALL-CAM2498-LEP Dimensions: 296mmx244mmx127mm (11.7” x9.6” x5”) Material: Aluminum alloy Please note: the wall bracket/Wallmount short is still absolutely necessary Model ALL-CAM2498-LEP_Junction_Box Application Outdoor or indoor cable junction box for PTZ Dome series Dimensions 296mmx244mmx127mm (11.7” x9.6” x5”) Weight 2.5kg(5.5lb) Material Aluminium alloy

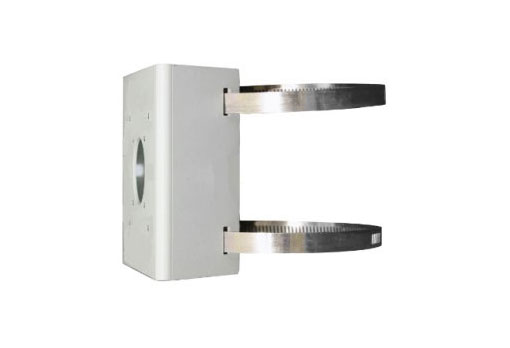

utdoor, pole or rail installation for bullet camera ALL-CAM2497-LEN. Junction-Box is needed. 99mmx90mmx38mm (3.9”x3.5”x1.5”)   Bracket  ALL-CAM2497-LEN Pole Mount/Masthalter Application Outdoor, pole or rail installation for bullet camera of IPC22X, IPC24X and IPCB1XX series Dimensions (L × W × H) 99 × 90 × 38mm (3.9” × 3.5” × 1.5”) Embrace hoop diameter 67 ~ 127mm (2.6” ~ 5”) Weight 0.2kg (0.44lb) Material Aluminum, Stainless steel

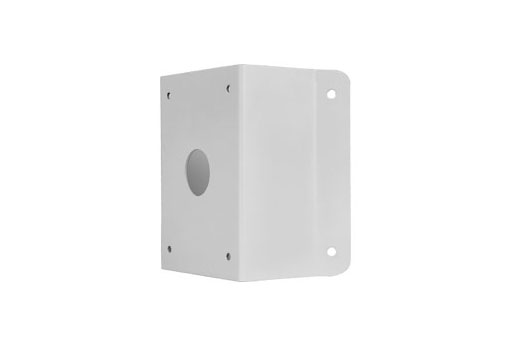

Indoor or outdoor, PTZ Dome Corner installation for ALL-CAM2498-LEP Dimensions(L × W × H): 215mmx210mmx122mm(8.5” x 8.3”x 4.8”) Material: Steel Please note: the wall bracket/Wallmount short is still absolutely necessary   Bracket ALL-CAM2498-LEP_Corner_Mount Application Indoor or outdoor, pole installation for PTZ dome camera Dimensions(L × W × H) 215mmx170mmx52mm (4.7”x4.7”x2.1”) Weight 1.47kg(3.2lb) Material Steel

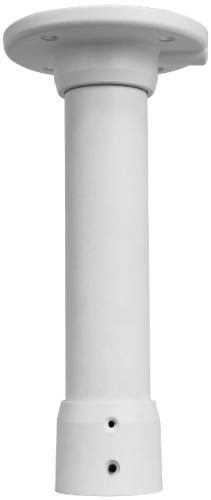

Highlight: Indoor or outdoor Installation PTZ Dome Pendant installation Dimensions: Φ116.5mmx239mm(Φ4.6” x9.4”) Material: Aluminum alloy Technical Details: Bracket ALL-CAM2498-LEP_Pendant_Mount Application Indoor or outdoor, PTZ Dome Pendant installation Dimensions Φ116.5mmx239mm(Φ4.6” x9.4”) Weight 0.67kg(1.5lb) Material Aluminum alloy

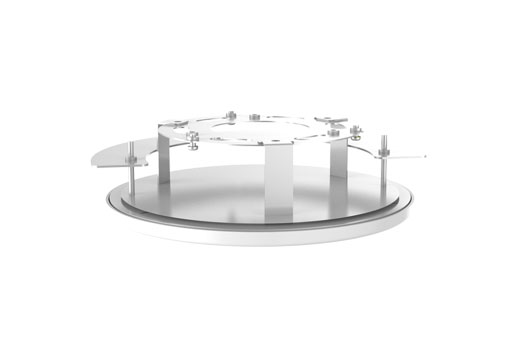

Indoor, indoor fixed dome in-ceiling installation for ALL-CAM2395-LVEFN Dimensions: 235mmx63mm (F9.3” x2.5”) In-ceiling hole: F195mm(F7.67”) Material: Sheet metal and ABS Bracket ALL-CAM2495-LVEFN_Ceiling_Mount Application Indoor, indoor fixed dome in-ceiling installation Dimensions Φ235mmx63mm(Φ9.3” x2.5”) In-ceiling hole: Φ195mm(Φ7.67”) Weight 0.49kg(1.1lb) Material Sheet metal and ABS

Highlight: Indoor or outdoor Installation PTZ Dome Pendant installation Dimensions: F116.5mmx500mm Material: Aluminum alloy Technical Details: Bracket ALL-CAM2498-LEP_PenMoun_500 Verlängerung Application Indoor or outdoor, PTZ Dome Pendant installation Dimensions F116.5mmx500mm Weight 0.67kg(1.5lb) Material Aluminum alloy
