Voice over IP - GSM Gateways

1 Port VoIP GSM Gateway / VoIP UMTS Gateway /4G LTE Gateway MV-370 is a 1 Port VoIP GSM/UMTS/LTE Gateway for call termination (VoIP to GSM/UMTS/LTE ) and origination (GSM/UMTS/LTE to VoIP). Support Asterisk,Trixbox,SIP Proxy Server... Connect with PORTech GSM Gateway via internet  SIM cards no longer need to be installed in GSM Gateway anymore;  You can deploy your GSM Gateway in different locations.   Centralize and supervise all SIMs in one place.  Major Function VoIP(SIP),UMTS/LTE conversion.(MV-370) for all world  50 sets of LAN --> MOBILE routes setting,50 sets of MOBILE --> LAN routes setting. -Support one stage diaing -Support assigned mode and free mode-two stage dialing Voice response for setting and status(dial in from mobile). For call termination (VoIP to GSM/UMTS/LTE) and origination (GSM/UMTS/LTE to VoIP). Standard SIP(RFC2543,RFC3261) protocol,Communicates with other gateway or PC Receive SMS and Send SMS Allows your program Send/receive SMS with AT Command Call Back feature All functions can be set on web.   Provide CDR Specification Protocols:SIP (RFC2543,RFC3261) TCP/IP:IP/TCP/UDP/RTP/RTCP/CMP/ARP/RARP/SNTP/DHCP/DNS Client,IEEE802.1P/Q,ToS/DiffServ,NAT Traversal,STUN,uPnP,IP Assignment,Static IP,DHCP,PPPoE Codec:G.711 u-Law,G.711 a-Law,G.729A,G.729A/B Voice Quality,VAD,CNG,AEC,LEC,Packet loss 4G LTE version (Global) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 Application

Highlights Die Yeastar TG-Serie verbindet GSM/3G/4G-Netzwerke direkt mit VoIP-Netzwerken und ermöglicht eine bidirektionale Kommunikation: GSM/3G/4G mit VoIP und VoIP mit GSM/3G/4G. Die TG-Serie ist die beste erhältliche Lösung, um IP-basierte Telefonanlagen miteinander zu verbinden und bietet eine Softswitch-Anbindung an ein GSM/3G4G-Netzwerk. Darüber ist sie die beste Fallback-Lösung, wenn der Festnetzanschluss ausfällt. Telefonanlage-Systeme mit GSM- oder 3G-WCDMA- oder 4G-LTE Netzwerken verbinden SMS-Nachrichten über Webschnittstelle senden und empfangen, unterstützt Massen-SMS Mit Mobil-zu-Mobil-Anrufen und SIP-Trunks erhebliche Telefonkosten einsparen In der webbasierten Verwaltung kann alles mühelos eingerichtet werden Kostengünstige Reserve, wenn das Festnetz ausfällt Einfach zu integrieren: hohe Kompatibilität mit etablierter IPPBX und Softswitch   Technische Spezifikationen Models* TG100 TG200 TG400 TG800 TG1600 Number of Ports 1 2 4 8 16 GSM Frequency** 850/900/1800/1900 MHz WCDMA Frequency** 850/1900 MHz, 850/2100 MHz, 900/2100 MHz 4G Data – 4G LTE Band** Don’t support 4G LTE Depending on the module type. Check the supported band and operators. Don’t support 4G LTE Protocol SIP, IAX2 Antenna Splitter (4 in 1) – Support Transport UDP, TCP, TLS, SRTP Voice Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex DTMF Mode RFC2833, SIP Info, In-band Echo Cancellation ITU-T G.168 LEC Calling Type Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) Network Protocol FTP, TFTP, HTTP, SSH LAN 1 10/100 Mbps Ethernet Interface 2 10/100 Mbps Ethernet Interfaces NAT Traversal Static NAT, STUN Network DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN Operation Range 0°C to 40°C, 32°F to 104°F Power Supply DC 12V, 1A AC 100-240V Storage Range -20°C to 65°C, -4°F to 149°F Dimensions (L × W × H) (mm) 110 x 70 x 24 213 x 160 x 44 340 x 210 x 44 440 x 250 x 44 Humidity 10-90% non-condensing *Sie können entweder GSM oder 3G oder 4G Kanal bestellen. TG100 und TG1600 unterstützen kein 4G LTE. **Klicken Sie hier, um die von TG GSM VoIP Gateway unterstützten Frequenzen/Bänder und Mobilfunkbetreiber zu prüfen.

Highlights Die Yeastar TG-Serie verbindet GSM/3G/4G-Netzwerke direkt mit VoIP-Netzwerken und ermöglicht eine bidirektionale Kommunikation: GSM/3G/4G mit VoIP und VoIP mit GSM/3G/4G. Die TG-Serie ist die beste erhältliche Lösung, um IP-basierte Telefonanlagen miteinander zu verbinden und bietet eine Softswitch-Anbindung an ein GSM/3G4G-Netzwerk. Darüber ist sie die beste Fallback-Lösung, wenn der Festnetzanschluss ausfällt. Telefonanlage-Systeme mit GSM- oder 3G-WCDMA- oder 4G-LTE Netzwerken verbinden SMS-Nachrichten über Webschnittstelle senden und empfangen, unterstützt Massen-SMS Mit Mobil-zu-Mobil-Anrufen und SIP-Trunks erhebliche Telefonkosten einsparen In der webbasierten Verwaltung kann alles mühelos eingerichtet werden Kostengünstige Reserve, wenn das Festnetz ausfällt Einfach zu integrieren: hohe Kompatibilität mit etablierter IPPBX und Softswitch   Technische Spezifikationen Models* TG100 TG200 TG400 TG800 TG1600 Number of Ports 1 2 4 8 16 GSM Frequency** 850/900/1800/1900 MHz WCDMA Frequency** 850/1900 MHz, 850/2100 MHz, 900/2100 MHz 4G Data – 4G LTE Band** Don’t support 4G LTE Depending on the module type. Check the supported band and operators. Don’t support 4G LTE Protocol SIP, IAX2 Antenna Splitter (4 in 1) – Support Transport UDP, TCP, TLS, SRTP Voice Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex DTMF Mode RFC2833, SIP Info, In-band Echo Cancellation ITU-T G.168 LEC Calling Type Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) Network Protocol FTP, TFTP, HTTP, SSH LAN 1 10/100 Mbps Ethernet Interface 2 10/100 Mbps Ethernet Interfaces NAT Traversal Static NAT, STUN Network DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN Operation Range 0°C to 40°C, 32°F to 104°F Power Supply DC 12V, 1A AC 100-240V Storage Range -20°C to 65°C, -4°F to 149°F Dimensions (L × W × H) (mm) 110 x 70 x 24 213 x 160 x 44 340 x 210 x 44 440 x 250 x 44 Humidity 10-90% non-condensing *Sie können entweder GSM oder 3G oder 4G Kanal bestellen. TG100 und TG1600 unterstützen kein 4G LTE. **Klicken Sie hier, um die von TG GSM VoIP Gateway unterstützten Frequenzen/Bänder und Mobilfunkbetreiber zu prüfen.

4 in 1 Antennen Splitter für TG200/TG400

Highlights Die Yeastar TG-Serie verbindet GSM/3G/4G-Netzwerke direkt mit VoIP-Netzwerken und ermöglicht eine bidirektionale Kommunikation: GSM/3G/4G mit VoIP und VoIP mit GSM/3G/4G. Die TG-Serie ist die beste erhältliche Lösung, um IP-basierte Telefonanlagen miteinander zu verbinden und bietet eine Softswitch-Anbindung an ein GSM/3G4G-Netzwerk. Darüber ist sie die beste Fallback-Lösung, wenn der Festnetzanschluss ausfällt. Telefonanlage-Systeme mit GSM- oder 3G-WCDMA- oder 4G-LTE Netzwerken verbinden SMS-Nachrichten über Webschnittstelle senden und empfangen, unterstützt Massen-SMS Mit Mobil-zu-Mobil-Anrufen und SIP-Trunks erhebliche Telefonkosten einsparen In der webbasierten Verwaltung kann alles mühelos eingerichtet werden Kostengünstige Reserve, wenn das Festnetz ausfällt Einfach zu integrieren: hohe Kompatibilität mit etablierter IPPBX und Softswitch   Technische Spezifikationen Models* TG100 TG200 TG400 TG800 TG1600 Number of Ports 1 2 4 8 16 GSM Frequency** 850/900/1800/1900 MHz WCDMA Frequency** 850/1900 MHz, 850/2100 MHz, 900/2100 MHz 4G Data – 4G LTE Band** Don’t support 4G LTE Depending on the module type. Check the supported band and operators. Don’t support 4G LTE Protocol SIP, IAX2 Antenna Splitter (4 in 1) – Support Transport UDP, TCP, TLS, SRTP Voice Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex DTMF Mode RFC2833, SIP Info, In-band Echo Cancellation ITU-T G.168 LEC Calling Type Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) Network Protocol FTP, TFTP, HTTP, SSH LAN 1 10/100 Mbps Ethernet Interface 2 10/100 Mbps Ethernet Interfaces NAT Traversal Static NAT, STUN Network DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN Operation Range 0°C to 40°C, 32°F to 104°F Power Supply DC 12V, 1A AC 100-240V Storage Range -20°C to 65°C, -4°F to 149°F Dimensions (L × W × H) (mm) 110 x 70 x 24 213 x 160 x 44 340 x 210 x 44 440 x 250 x 44 Humidity 10-90% non-condensing *Sie können entweder GSM oder 3G oder 4G Kanal bestellen. TG100 und TG1600 unterstützen kein 4G LTE. **Klicken Sie hier, um die von TG GSM VoIP Gateway unterstützten Frequenzen/Bänder und Mobilfunkbetreiber zu prüfen.

Antenne für GSM Modul TG400/TG800/TG1600S50/S100/S300

19" Rack Option für MV-378

Antenne für GSM Modul TG100 / S20

Highlights Die Yeastar TG-Serie verbindet GSM/3G/4G-Netzwerke direkt mit VoIP-Netzwerken und ermöglicht eine bidirektionale Kommunikation: GSM/3G/4G mit VoIP und VoIP mit GSM/3G/4G. Die TG-Serie ist die beste erhältliche Lösung, um IP-basierte Telefonanlagen miteinander zu verbinden und bietet eine Softswitch-Anbindung an ein GSM/3G4G-Netzwerk. Darüber ist sie die beste Fallback-Lösung, wenn der Festnetzanschluss ausfällt. Telefonanlage-Systeme mit GSM- oder 3G-WCDMA- oder 4G-LTE Netzwerken verbinden SMS-Nachrichten über Webschnittstelle senden und empfangen, unterstützt Massen-SMS Mit Mobil-zu-Mobil-Anrufen und SIP-Trunks erhebliche Telefonkosten einsparen In der webbasierten Verwaltung kann alles mühelos eingerichtet werden Kostengünstige Reserve, wenn das Festnetz ausfällt Einfach zu integrieren: hohe Kompatibilität mit etablierter IPPBX und Softswitch   Technische Spezifikationen Models* TG100 TG200 TG400 TG800 TG1600 Number of Ports 1 2 4 8 16 GSM Frequency** 850/900/1800/1900 MHz WCDMA Frequency** 850/1900 MHz, 850/2100 MHz, 900/2100 MHz 4G Data – 4G LTE Band** Don’t support 4G LTE Depending on the module type. Check the supported band and operators. Don’t support 4G LTE Protocol SIP, IAX2 Antenna Splitter (4 in 1) – Support Transport UDP, TCP, TLS, SRTP Voice Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex DTMF Mode RFC2833, SIP Info, In-band Echo Cancellation ITU-T G.168 LEC Calling Type Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) Network Protocol FTP, TFTP, HTTP, SSH LAN 1 10/100 Mbps Ethernet Interface 2 10/100 Mbps Ethernet Interfaces NAT Traversal Static NAT, STUN Network DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN Operation Range 0°C to 40°C, 32°F to 104°F Power Supply DC 12V, 1A AC 100-240V Storage Range -20°C to 65°C, -4°F to 149°F Dimensions (L × W × H) (mm) 110 x 70 x 24 213 x 160 x 44 340 x 210 x 44 440 x 250 x 44 Humidity 10-90% non-condensing *Sie können entweder GSM oder 3G oder 4G Kanal bestellen. TG100 und TG1600 unterstützen kein 4G LTE. **Klicken Sie hier, um die von TG GSM VoIP Gateway unterstützten Frequenzen/Bänder und Mobilfunkbetreiber zu prüfen.

MV-374 is a 4 channels VoIP GSM/UMTS/LTE Gateway for call termination (VoIP to GSM/UMTS/LTE ) and origination ( GSM/UMTS/LTE to VoIP). It is SIP based and compatible with Asterisk,Trixbox,3CX,SIP Proxy Server,VoipBuster. It can enable to make 4 calls simultaneously from IP phones to GSM/UMTS/LTE networks and GSM/UMTS/LTE networks to IP phone.  Connect with PORTech GSM Gateway via internet  SIM cards no longer need to be installed in GSM Gateway anymore;  You can deploy your GSM Gateway in different locations.   Centralize and supervise all SIMs in one place.  Major Function VoIP(SIP),UMTS/LTE conversion.(MV-370) for all world  50 sets of LAN --> MOBILE routes setting,50 sets of MOBILE --> LAN routes setting. -Support one stage diaing -Support assigned mode and free mode-two stage dialing Voice response for setting and status(dial in from mobile). For call termination (VoIP to GSM/UMTS/LTE) and origination (GSM/UMTS/LTE to VoIP). Standard SIP(RFC2543,RFC3261) protocol,Communicates with other gateway or PC Receive SMS and Send SMS Allows your program Send/receive SMS with AT Command Call Back feature All functions can be set on web.   Provide CDR Specification Protocols:SIP (RFC2543,RFC3261) TCP/IP:IP/TCP/UDP/RTP/RTCP/CMP/ARP/RARP/SNTP/DHCP/DNS Client,IEEE802.1P/Q,ToS/DiffServ,NAT Traversal,STUN,uPnP,IP Assignment,Static IP,DHCP,PPPoE Codec:G.711 u-Law,G.711 a-Law,G.729A,G.729A/B Voice Quality,VAD,CNG,AEC,LEC,Packet loss 4G LTE version (Global) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 Application

SIM Server : A non blocking switching system between MV-37X and SBK-32/SBK-128     SS-128: 128 sims SIM Server (manage 128 sims SIM BANK)  SS-256: 256 sims SIM Server (manage 256 sims SIM BANK) SS-512: 512 sims SIM Server (manage 512 sims SIM BANK)  SS-1280: 1280 sims SIM Server (manage 1280 sims SIM BANK) SS-2560: 2560 sims SIM Server (manage 2560 sims SIM BANK)  Features: Set Talk Time per SIM  Set GSM Group (Assign several SIMs Per GSM Port)  Set Day of week  Set Time Range Specifications   ·         Keypro*1,install program in any PC (Support XP,WIN 7,Vista) ·         Central management and secure storage of all SIM cards ·         Control and Supervision of your SIMs from your office ·         Allow you to choose the best GSM operators price plan ·         Immediate control of all your SIM cards from your office ·         Easy and powerful web based management, Easy to configure convenience any time! ·         Switch SIM cards between connected gateways, configuration via remote client ·         Save huge costs on technicians and traveling to the installation sites           Save on travel expense and precious time           Save the cost on site' technicians           Save the down time between maintenance  ·         1 year  warranty     Solution suggest 1. If you need the solution for 32 GSM ports,1 SIM per GSM port, you can buy    MV-3732*1 (option:SBK-128,SS-128) 2. If you need the solution for 32 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*1,SBK-128*1,SS-128*1 3. If you need the solution for 64 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*2,SBK-128*2,SS-256 Any GSM solution you neeed, please contact us soon  Work with Dial peer Server (free) 1.Dial Peer Server can manage 128 GSM ports at same time    User just need to set one SIP trunk    Send call to dial peer IP:5060 port from Asterisk/IP PBX    The call automatically switches from a busy line to available line. 2.Provide CDR 3.Monitor the signal of all GSM ports

SIM Server : A non blocking switching system between MV-37X and SBK-32/SBK-128   SS-128: 128 sims SIM Server (manage 128 sims SIM BANK)  SS-256: 256 sims SIM Server (manage 256 sims SIM BANK) SS-512: 512 sims SIM Server (manage 512 sims SIM BANK)  SS-1280: 1280 sims SIM Server (manage 1280 sims SIM BANK) SS-2560: 2560 sims SIM Server (manage 2560 sims SIM BANK)   Features: Set Talk Time per SIM Set GSM Group (Assign several SIMs Per GSM Port) Set Day of week Set Time Range Specifications   ·         Keypro*1,install program in any PC (Support XP,WIN 7,Vista) ·         Central management and secure storage of all SIM cards ·         Control and Supervision of your SIMs from your office ·         Allow you to choose the best GSM operators price plan ·         Immediate control of all your SIM cards from your office ·         Easy and powerful web based management, Easy to configure convenience any time! ·         Switch SIM cards between connected gateways, configuration via remote client ·         Save huge costs on technicians and traveling to the installation sites           Save on travel expense and precious time           Save the cost on site' technicians           Save the down time between maintenance   ·       1 year warranty       Solution suggest 1. If you need the solution for 32 GSM ports,1 SIM per GSM port, you can buy    MV-3732*1 (option:SBK-128,SS-128) 2. If you need the solution for 32 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*1,SBK-128*1,SS-128*1 3. If you need the solution for 64 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*2,SBK-128*2,SS-256 Any GSM solution you neeed, please contact us soon  Work with Dial peer Server (free) 1.Dial Peer Server can manage 128 GSM ports at same time    User just need to set one SIP trunk    Send call to dial peer IP:5060 port from Asterisk/IP PBX    The call automatically switches from a busy line to available line. 2.Provide CDR 3.Monitor the signal of all GSM ports

SBK-32 is a Remote SIM Bank with 32 sims that can connect with serial MV-37X via internet. Connect with PORTech GSM Gateway via internet SIM cards no longer need to be installed in GSM Gateway anymore; You can deploy your VoIP GSM Gateway in different locations. Centralize and supervise all SIMs in one place MV-37X shipped out after Jun. 26, 2009 both can expand SBK-32. P.S The label in the back of MV-37X mark ?rs? With SBK-32,SIM cards no longer need to be installed in MV-37X anymore; you can deploy your GSM gateways in different locations and countries. New concept of using SBK-32 solution, you can centralize and supervise all sims in one place. In that case, SIM management will be easy, quick and safe as well. All SIM cards can be stored and controlled in one secure place. Once in a while, MV-37X must change SIM cards to get the best rate on different GSM operators. With SBK-32, you can place physical sims in office or change SIM corresponding port directly on web any second.MV-37X connects with SBK-32 to read the SIM information and register it on the GSM network. Key Specifications/Special Features · Wan port*1, Lan port*1,All settings set on web · Handle 32 SIM cards per SBK-32 · Central management and secure storage of all SIM cards · Control and Supervision of your SIMs from your office · Allow you to choose the best GSM operators price plan · Immediate control of all your SIM cards from your office · Easy and powerful web based management, Easy to configure convenience any time! · Switch SIM cards between connected gateways, configuration via remote client · Save huge costs on technicians and traveling to the installation sites Save on travel expense and precious time Save the cost on site’ technicians Save the down time between maintenance · DIM:20cm x 14cm x 16.5cm

19" Rack Option für MV-374 Schwarze-Version

4 in 1 Antennen Splitter für TG800/TG1600

SIM Server :  A non blocking switching system between MV-37X and SBK-32/SBK-128  SS-128: 128 sims SIM Server (manage 128 sims SIM BANK)   SS-256: 256 sims SIM Server (manage 256 sims SIM BANK) SS-512: 512 sims SIM Server (manage 512 sims SIM BANK)  SS-1280: 1280 sims SIM Server (manage 1280 sims SIM BANK) SS-2560: 2560 sims SIM Server (manage 2560 sims SIM BANK)    Features: Set Talk Time per SIM Set GSM Group (Assign several SIMs Per GSM Port) Set Day of week Set Time Range Specifications   ·         Keypro*1,install program in any PC (Support XP,WIN 7,Vista) ·         Central management and secure storage of all SIM cards ·         Control and Supervision of your SIMs from your office ·         Allow you to choose the best GSM operators price plan ·         Immediate control of all your SIM cards from your office ·         Easy and powerful web based management, Easy to configure convenience any time! ·         Switch SIM cards between connected gateways, configuration via remote client ·         Save huge costs on technicians and traveling to the installation sites           Save on travel expense and precious time           Save the cost on site' technicians           Save the down time between maintenance   ·       1 year warranty     Solution suggest 1. If you need the solution for 32 GSM ports,1 SIM per GSM port, you can buy    MV-3732*1 (option:SBK-128,SS-128) 2. If you need the solution for 32 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*1,SBK-128*1,SS-128*1 3. If you need the solution for 64 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*2,SBK-128*2,SS-256 Any GSM solution you neeed, please contact us soon Work with Dial peer Server (free) 1.Dial Peer Server can manage 128 GSM ports at same time    User just need to set one SIP trunk    Send call to dial peer IP:5060 port from Asterisk/IP PBX    The call automatically switches from a busy line to available line. 2.Provide CDR 3.Monitor the signal of all GSM ports

SBK-128 is a Remote SIM Bank with 128 sims Can connect with serial MV-37X (Support GSM(2G) / UMTS(3G) VoIP Gateway both) via internet. Connect with PORTech GSM Gateway via internet SIM cards no longer need to be installed in GSM Gateway anymore; You can deploy your VoIP GSM Gateway in different locations. Centralize and supervise all SIMs in one place (MV-37X-CDMA version doesn’t support remote SIM feature)

IS-640 IP Speaker provide a user-friendly control and simple voice broadcasting. The product  is designed to provide easy use for any office,department store,factory,school to be able to quickly broadcast announcements to their any assigned office or branch or classes IS-640 can work P to P ,IP to IP and Compatible with IP-PBX,Traditional PBX,Asterisk,Trixbox,SIP server Option: IP Broadcasting System User can broadcast announcements to a group of office or branch or classes Features: SIP (RFC 3261) compatible Web-based configuration Web-based firmware upgradable High efficiency speaker driver Powerful built-in amplifier:40W Remote control Work with extra IP Speaker Server to make group broadcast Specifications:   Protocols:SIP (RFC2543,RFC3261) Codec:G.711 u-Law,G.711 a-Law,G.729A,G.729A/B LAN connection :RJ-45 connector Ethernet I/F 10/100 Mbps power supply :110V-240V 1A (0.5A) Dimensions 17.5 X 28 X 24.5cm Weight: 3kg Warranty 1 year   Application:   System Integrator Large Multinational Corporation Design firm Framework ? IP Speaker Specification   Wood speaker Horn speaker Ceiling speaker Wall speaker IP Audio Gateway Model No IS-640 IS-640P IS-650 IS-660 IS-670 IS-381 IS-382 IS-3840 Speaker 8 “ 8 “ 11*8 “ 5” 6.5”+2” --- --- --- AMP circuit V V V V V --- --- V DIM (cm) 17.5x28x24.5x9 17.5x28x24.5x9 28x20x28  19.8x16.6x11 27x15x19.5 17X14.5X4 17X14.5X4 17X14.5X4 Weight (g) 3000 2640 2020 900 2050 265 270 275 Impedance 8Ω --- Rated Power 40W 40W 30W 6W 30W     40W Power supply 110V-240V 1A PoE(30W) 110V-240V  12V/1A 110V-240V 24V/4A Water Protection --- --- IP66 --- IP55,IP-X3 --- Protocol SIP(RFC2543,RFC3261) Codec G.711 u-Law,G.711 a-Law LAN connection RJ45 10/100 Mbps Warranty 1 Year

Ersatznetzteil für MV-374 / Replacement of PowerSupply for MV-374

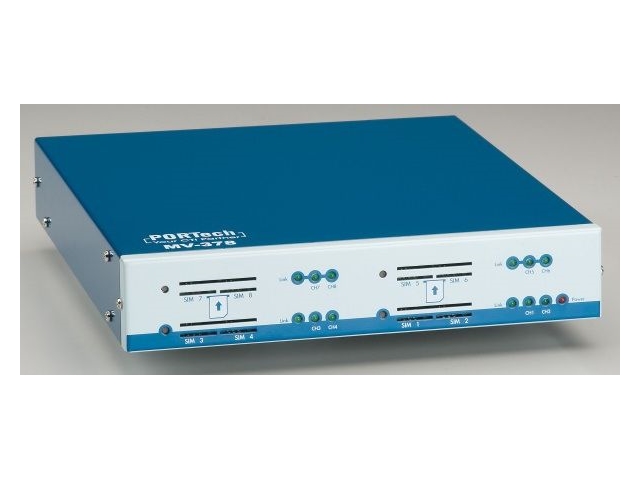

8 Channels VoIP GSM/UMTS Gateway    MV-378 is a 8 channels VoIP GSM/UMTS/LTE Gateway for call termination (VoIP to GSM/UMTS/LTE ) and origination ( GSM/UMTS/LTE to VoIP). It is SIP based and compatible with Asterisk,Trixbox,SIP Proxy Server. It can enable to make 8 calls simultaneously from IP phones to GSM/UMTS/LTE networks and GSM/UMTS/LTE networks to IP phone Connect with PORTech GSM Gateway via internet  SIM cards no longer need to be installed in GSM Gateway anymore;  You can deploy your GSM Gateway in different locations.   Centralize and supervise all SIMs in one place.  Major Function VoIP(SIP),UMTS/LTE conversion.(MV-370) for all world  50 sets of LAN --> MOBILE routes setting,50 sets of MOBILE --> LAN routes setting. -Support one stage diaing -Support assigned mode and free mode-two stage dialing Voice response for setting and status(dial in from mobile). For call termination (VoIP to GSM/UMTS/LTE) and origination (GSM/UMTS/LTE to VoIP). Standard SIP(RFC2543,RFC3261) protocol,Communicates with other gateway or PC Receive SMS and Send SMS Allows your program Send/receive SMS with AT Command Call Back feature All functions can be set on web.   Provide CDR Specification Protocols:SIP (RFC2543,RFC3261) TCP/IP:IP/TCP/UDP/RTP/RTCP/CMP/ARP/RARP/SNTP/DHCP/DNS Client,IEEE802.1P/Q,ToS/DiffServ,NAT Traversal,STUN,uPnP,IP Assignment,Static IP,DHCP,PPPoE Codec:G.711 u-Law,G.711 a-Law,G.729A,G.729A/B Voice Quality,VAD,CNG,AEC,LEC,Packet loss 4G LTE version (Global) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 Application   Solution suggest 1. If you need the solution for 32 GSM ports,1 SIM per GSM port, you can buy    MV-3732*1,(option:SBK-32*1,SS-128) 2. If you need the solution for 32 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*1,SBK-128*1,SS-128 3. If you need the solution for 64 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*2,SBK-128*2,SS-256

Major Function   1.   VoIP(SIP),GSM conversion.   2.   VoIP(SIP),UMTS conversion for all world    3.   50 sets of LAN --> MOBILE routes setting,50 sets of MOBILE --> LAN routes setting.  -Support one stage diaing  -Support free mode-two stage dialing and assigned mode-one stage dialing   4.   Voice response for setting and status(dial in from mobile).   5.   For call termination (VoIP to GSM/UMTS ) and origination ( GSM/UMTS to VoIP).   6.   Standard SIP(RFC2543,RFC3261) protocol,Communicates with other gateway or PC   7.   Receive SMS and Send SMS    8.   Allows your program Send/receive SMS with AT Command   9.   Call Back feature   10. 11. 12.   All functions can be set on web.  Provide CDR 1 year warranty   Specification     Protocols:SIP (RFC2543,RFC3261)     TCP/IP:IP/TCP/UDP/RTP/RTCP/,CMP/ARP/RARP/SNTP,DHCP/DNS Client,IEEE802.1P/Q,ToS/DiffServ,NAT Traversal,STUN,uPnP,IP Assignment,Static IP,DHCP,PPPoE     Codec:G.711 u-Law,G.711 a-Law,G.729A,G.729A/B Voice Quality,VAD,CNG,AEC,LEC,Packet loss     3G Frequecny: U Version:2G 850,900,1800,1900MHz,3G 850,2100 MHz A Version:2G 850,900,1800,1900MHz,3G 850,1900 MHz G Version:2G 850,900,1800,1900MHz,3G 800/850/900/1900/2100HMZ   Solution suggest 1. If you need the solution for 32 GSM ports,1 SIM per GSM port, you can buy    MV-3732*1,(option:SBK-32*1,SS-128) 2. If you need the solution for 32 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*1,SBK-128*1,SS-128 3. If you need the solution for 64 GSM ports,4 SIMs per GSM port, you can buy    MV-3732*2,SBK-128*2,SS-256
