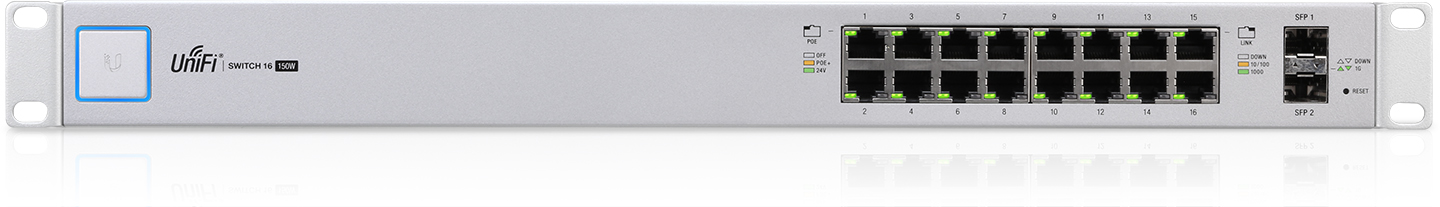

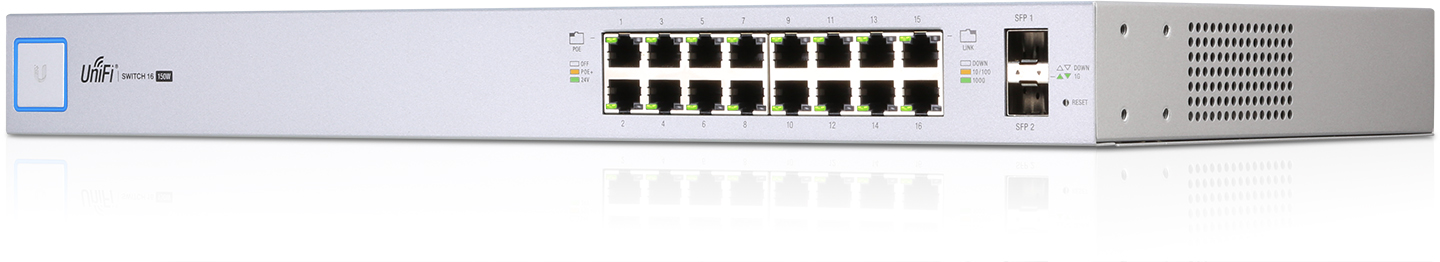

Ubiquiti UniFi Switch / 16 Ports / 150W / POE+ / 2 SFP / US-16-150W

Produktinformationen "Ubiquiti UniFi Switch / 16 Ports / 150W / POE+ / 2 SFP / US-16-150W "

Layer 2, PoE-Switch mit (16) GbE-, PoE+- und 24-V-passiven PoE-RJ45-Ports und (2) 1G-SFP-Ports.

(16) GbE PoE+-Ports

(2) 1G SFP-Ports

Insgesamt 122 W PoE-Verfügbarkeit





Technische Spezifikationen

Mechanisch
Maße 442,4 x 221 x 43,7 mm (17,4 x 8,7 x 1,7")
Gewicht Ohne Montagehalterungen: 2,8 kg (6,2 lb)
Mit Montagehalterungen: 2,9 kg (6,4 lb)
Gehäusematerial SGCC-Stahl
Hardware
Verwaltungsschnittstelle Ethernet In-Band
Netzwerkschnittstelle (16) GbE RJ45-Ports
(2) 1G SFP-Ports
PoE-Schnittstelle (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
24 V DC passives PoE (Pins 4, 5+; 7, 8-)
Gesamter nicht blockierender Durchsatz 18 Gbit/s
Schaltleistung 36 Gbit/s
Weiterleitungsrate 26,78 Mpps
Power-Methode Universaleingang, 100–240 V AC, 50/60 Hz
Stromversorgung AC/DC, intern, 150 W
Unterstützter Spannungsbereich 100–240 V Wechselstrom
Max. Energieverbrauch Ohne PoE-Ausgang: 28 W.
Einschließlich PoE-Ausgang: 150 W
Insgesamt verfügbares PoE 122W
Max. PoE-Wattleistung pro Port nach PSE 24V Passives PoE: 17W
PoE+: 32W
Spannungsbereich PoE-Modus 24 V Passives PoE: 20–27 V
PoE+: 50–57 V
ESD/EMP-Schutz Luft: ± 24 kV, Kontakt: ± 24 kV
Schallpegel*
Lüfterstufe: 0
Lüfterstufe: 1, 2, 3

1,7 dBr
10,8 dBr
* Hintergrundgeräuschpegel: 27,5 dBa.
Schock und Vibration ETSI300-019-1.4-Standard
Betriebstemperatur -5 bis 40 °C (23 bis 104 °F)
Betriebsfeuchtigkeit 5 bis 95 % nicht kondensierend
Zertifizierungen CE, FCC, IC
LEDs
System Status
Ethernet PoE-
Geschwindigkeit/Link/Aktivität
SFP Geschwindigkeit/Link/Aktivität
