Mimosa N5-X25 - 400mm Dish Antenna for C5x, 25 dBi, 2er Pack
Abverkaufsartikel
Artikel-Nr.:
158288
Herstellernummer:
100-00089
Intrastat ID:
85291030
Ursprungsland:
Vereinigte Staaten
Garantie:
12 Monate
Gewicht:
3,500 KG
Produktinformationen "Mimosa N5-X25 - 400mm Dish Antenna for C5x, 25 dBi, 2er Pack"

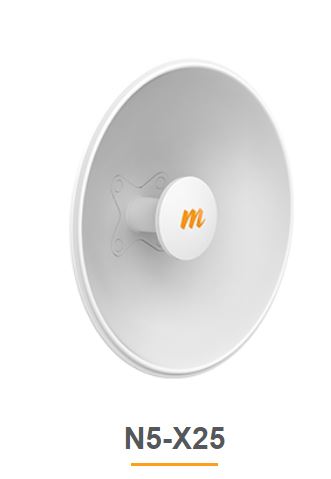

Mimosa N5-X25 - 400mm Dish Antenna for C5x, 25 dBi, 2er Pack
The Mimosa C5x is the industry’s most versatile, integrated, radio solution with five gain options (8, 12, 16, 20 and 25 dBi). The ultra-rugged solution provides extended frequency operation from 4.9–6.4 GHz, with est-in-class
noise immunity. Delivering the ultimate in flexibility and value, the C5x is the go-to solution for 5 GHz deployments. Out of the box, the C5x can be used in PTMP mode, with Ethernet speeds of up to 100 Mbps. With the purchase of a PTMP Go Fast feature key, speeds of up to 500 Mbps will be unlocked in PTMP mode. In order to unlock and utilize PTP mode, with speeds of up to 700 Mbps, a PTP feature key must be purchased.
With client speeds capable of 500 Mbps+, and access point capacity up to 1.5 Gbps delivers the speeds consumers and business users demand at a fraction of the cost of delivering Fiber to the Premises.
Gain: 12 dBi
Polarization: Dual-slant 45º
Antenna + C5x Weight: TBD
Dimensions: 70x67mm
Mount: Mimosa N5-X twist-on
Wind Survivability: 200 km/h
Mimosa C5c 5GHz Punkt zu Multi Punkt Acces Point 2x2:2 MIMO
Mimosa C5c 5GHz Punkt zu Multi Punkt Acces Point 2x2:2 MIMO
C5c has been designed specifically to handle long-range backhaul (PTP), point-to-multipoint (PTMP) GigaPoP links, and PTMP MicroPoP links impaired by vegetation. Connectorized by design, the C5c mates with many popular antennas, delivering 500+ Mbps of TCP throughput.
Max Throughput 500+ Mbps IP (866 Mbps PHY)
Long-range point-to-point (PTP) backhaul
Rural point-to-multipoint (PTMP) GigaPoP
Suburban MicroPoP when foliage exists
Connect to virtually any dual polarization antenna to custom-engineer longer distance client links. The C5c supports 2x2:2 MIMO dual connector RP-SMA for easy cabled antenna connectivity and can be mounted to any pole via hose clamps, or easily clipped onto antenna supporting compatible clip-on mounting bracket systems.
Artikel-Nr.:
153423
Herstellernummer:
100-00070
Bestand:
0x
Nicht Lagernd
