Patchkabel RJ45, CAT6A 500Mhz, 5m, blau; S-STP(S/FTP); IP67 Cable gland, M25,
Artikel-Nr.:
251271
Herstellernummer:
IP67KVRJ45TM31-5,0
Intrastat ID:
85444210
Ursprungsland:
Slowakei
Garantie:
12 Monate
Gewicht:
0,200 KG
Produktinformationen "Patchkabel RJ45, CAT6A 500Mhz, 5m, blau; S-STP(S/FTP); IP67 Cable gland, M25,"
*Auftragsbezogen, nicht Stornierbar*

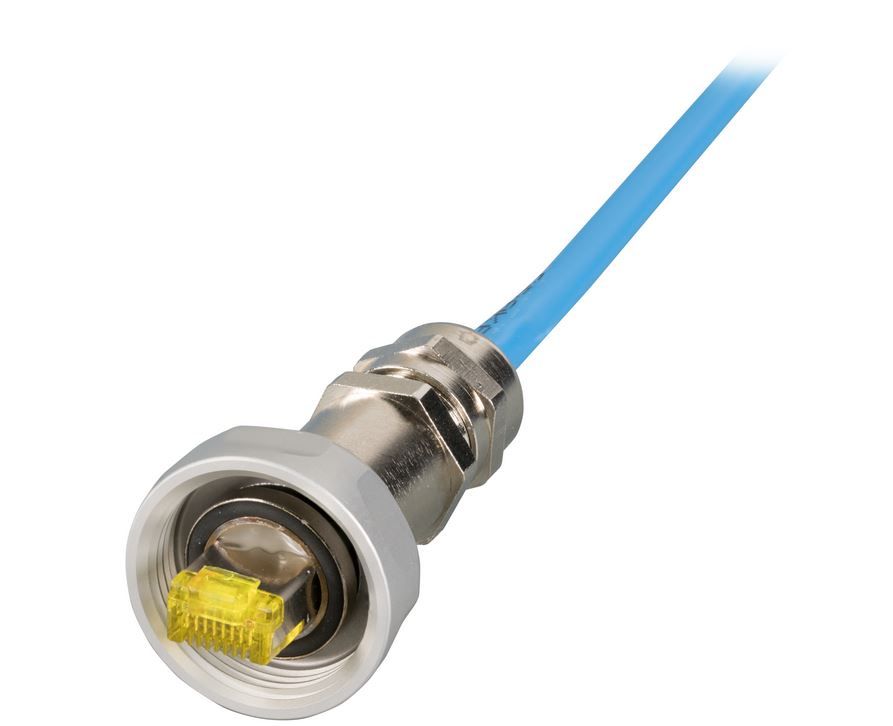

IP67 cable gland with pre-installed Cat.6A TM31 RJ45 S/FTP cable plug / plug
For installation in housings with M25 cut-out
Gland material: brass
Technical properties
AWG-size: 26/7
Allocation: acc. TIA/EIA 568B
Anti-kink sleeve: put-on
Cable construction: 4x2
Cable type: S/FTP
Cable type acc. to Manufacturer: Draka UC900 SS26
Category: 6A (TIA)
Colour anti-kink sleeve: blue
Colour outer sheath: blue
Conductive shield: 360° shield contact
Connector type: TM31
Contacts: Gold plated
Jacket material: LSZH
Locking lever: True
Model: shielded
Oil resistant: no
Ozone resistance: No
Pin assignment: 1:1
Raw cable: Cat.7
Resistant to chemicals: False
Suitable for degree of protection (IP): IP67
Type of connector connection 1: RJ45 8(8)
Type of connector connection 2: RJ45 8(8)
Type of housing: Brass nickel-plated
Type of locking: M25
UL approbated: False
UV resistant: no
Artikelmerkmale
| CAT: | CAT6A |
|---|---|
| Farbe: | blau |
| Länge: | 5m |
| MHz: | 900Mhz |
| Mantel: | LSZH(Halogenfrei) |
| Schirmung: | S-STP(S/FTP) Adernpaarefolien-geschirmt |
