Hutschienen PCs

Länge: 1m Material: Stahl gelocht 35mm x 7,5mm

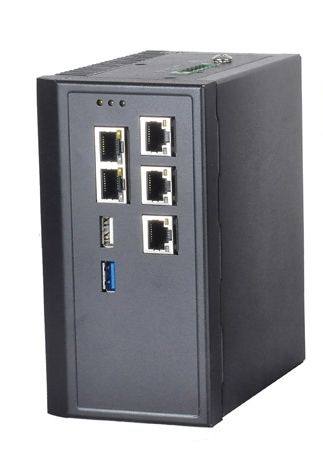

SCADA / ICS Security PC with Intel Atom E3845 CPU and Advanced LAN Bypass Key features Fanless and compact design Intel® Atom™ E3845 1.91GHz SoC CPU Wide Temperature Support: -40~70ºC 6032C with 2 x GbE SFP Fiber, 6032F with 4 x GbE SFP Fiber ESD/surge protection on serial COM ports for harsh environments 3 or 5 x GbE LAN with 1 or 2 pair Gen.3 LAN bypass DIN rail or wall mounting options 1 x USB 3.0 and 1x USB 2.0 port Overview LEC-6032 is a compact fanless industrial cyber security platform with Intel® "Bay Trail" Atom™ E3845 CPU. Deployed in remote, unmanned and harsh environments, LEC-6032 supports isolated COM ports, rich LAN ports with advanced Gen.3 LAN bypass and extended operating temperature from -40 ºC to 70 ºC. It also boosts for its flexible design with versatile mounting options (wall mount or DIN-Rail) and Ethernet LAN configuration, making it perfect for performing network security measures at critical infrastructure such as oil refinery, substation, power plants and manufacturing factories. Specifications Platform CPU Intel® Atom™ E3845 1.91GHz SoC CPU Chipset SoC Memory Technology DDR3L SO-DIMM x1 Memory Capacity Up to 8 GB Storage SATA storage 1x SATA connector, optional 2.5" drive bay I/O Ethernet controller Intel i210-IT Default LAN 6032B: 5 x RJ45 Bypass 6032B: 2 pairs Magnetic Isolation Protection 1.5 KV built-in Serial ports LEC-6032B: 1 x Internal pin header (RS-232 only) USB 2.0 2 x Type A USB 3.0 1 x Type A Power and Mechanical Power input 12 ~ 36 Vdc OS and Certifications Operating System Windows 7, Windows 7 Embedded, Linux Kernel 3.X Certifications CE, FCC Class A, RoHS Physical and Environmental Storage temperature -40°C to 85°C Operating temperature -40°C to 75°C Dimensions (W x H x D) 78 mm x 146 mm x 127 mm (3.07" x 5.75" x 5.00") Watchdog Watchdog timer 256 level time interval system reset, software programmable Casing material Aluminum

Key features Compact-sized industrial grade box PC Single-core Atom E3815 ESD/surge protection on serial COM ports for harsh environments Wide operating temperature (LEC-3030T:-40~70°C) Fanless design with corrugated aluminum Support VGA display output DIN-Rail or wall mounting options Support 4x DI/O Dual GbE LAN ports, 1 x USB 2.0, 1 x USB 3.0 port 1 x SATA port Overview Lanner LEC-3030 Series is a compact industrial-grade fanless box PC featuring dual-core Atom E3815(codenamed BayTrail), DDR3L 1333MHz SO-DIMM memory up to 4GB, VGA display, wide operating temperature(LEC-3030T), DIN Rail/Wallmount options and a variety of Serial COM and LAN configurations for various industrial application needs. It is ideal for solar PV monitoring, wind turbine, smart meter, renewable energy or other modern IoT (Internet of Things) applications. Specifications Platform CPU Atom E3815 1.46GHz CPU Chipset SoC Memory Technology DDR3L SO-DIMM x1 Memory Capacity Up to 4 GB Storage SATA storage 1 x SATA port and HDD kit I/O Ethernet controller Intel i210-IT Default LAN 2 x RJ45 Magnetic Isolation Protection 1.5KV magnetic isolation protection Serial ports 2 x Isolated RS-232/422/485 + 1 x RS-232 pin header Digital I/O 1 x 2x5 pin terminal block for 4 x DI/DO USB 2.0 1 x Type A USB 3.0 1 x Type A Power and Mechanical Power input Phoenix contact 2-pin connector with lock, 12 ~ 36 Vdc power voltage OS and Certifications Operating System Microsoft Windows 7, Windows 7 Embedded Linux: Linux (Ubuntu), Linux: kernel 2.6 Certifications CE/FCC Class A, RoHS Physical and Environmental Storage temperature -40°C to 85°C Operating temperature -20°C to 55°C Operating humidity 5% to 95% (non-condensing) Dimensions (W x H x D) 52 mm x 130 mm x 127 mm (2.05" x 5.12" x 5.00") Weight 1 kg (2.2 lbs) Watchdog Watchdog timer 256 level time interval system reset, software programmable

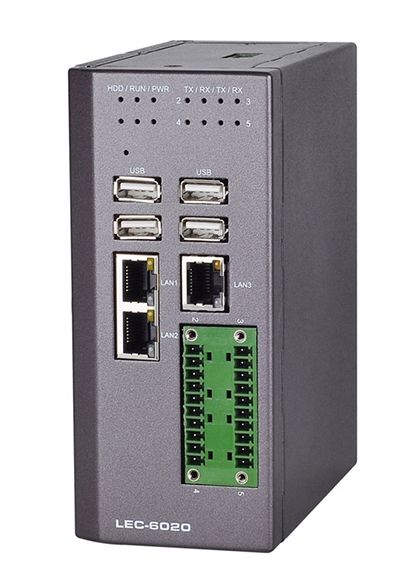

Fanless Industrial DIN Rail Security Platform with Intel® Atom™ N2600 CPU Key features Intel Atom-based Industrial Firewall Onboard Intel® Atom N2600 CPU with NM10 Chipset Fanless design with corrugated aluminum Wide temperature range (-40~70°C) Supports DDR3 Memory, maximum capacity is 2 GB OS support for both Linux and Windows 3 or 5 Intel GbE LAN ports (using Intel 82574L LAN controller) 1 or 2 pairs of LAN Bypass ESD and Surge Protection on Serial COM ports for harsh environments Support DIN-rail mount and wall mount Overview LEC-6020 is a Fanless DIN Rail Industrial Security Platform with an Intel® Atom™ N2600 CPU. It includes 3 or 5 GbE ports, 1 or 2 pairs of LAN Bypass function, 4 COM ports (LEC-6020A only) and 2 or 4 USB ports. This platform is ideal to provide network security protection for industrial automation or power communication applications. Specifications Platform CPU Intel® Atom N2600 Chipset Intel NM10 BIOS AMI 8 Mbit SPI Flash ROM Memory Technology DDR3 1066/1333MHz, unbuffered, Non-ECC Memory Capacity 2 GB Memory Socket 1 x 204-pin DDR3 SODIMM socket Storage IDE storage CompactFlash socket Type I/II x 1, SATA x 1 SATA storage SATA connector for SSD/HDD expansion I/O Ethernet controller LEC-6020A: Intel 82574L x 3 Graphic controller Intel® GMA 3600 Default LAN LEC-6020A: 3 x GbE RJ45 Bypass LEC-6020A: 1 pair; LEC-6020B: 2 pairs Magnetic Isolation Protection 1.5 KV built-in Display output Internal pinheader RS-232 signals RTS, Rx, Tx, CTS, GND RS-422 signals TxD+, TxD-, RxD-, RxD+, GND RS-485 signals Data+, Data-, GND Baudrate Supports 50 bps to 115.2 Kbps Serial ESD protection 15 KV for all signals USB 2.0 4 (LEC-6020A) Expansion Mini-PCIe (LEC-6020A only) OS and Certifications Operating System Linux 2.6, Windows XP Embedded, Window XP, Window 7 Embedded Certifications CE Emission, FCC Class A, RoHS Physical and Environmental Commerical temperature -40°C to 70°C Operating temperature -40°C to 85°C Operating humidity 5% to 95% (non-condensing) Storage humidity 5% to 95% (non-condensing) Dimensions (W x H x D) 65 mm x 146 mm x 127 mm (2.56" x 5.75" x 5.00") Weight 1 kg (2.2 lbs) Watchdog 1~255 level time interval system reset, software programmable Internal RTC Yes, with battery lithium backup Warranty 2 years Casing material Aluminum and SECC
