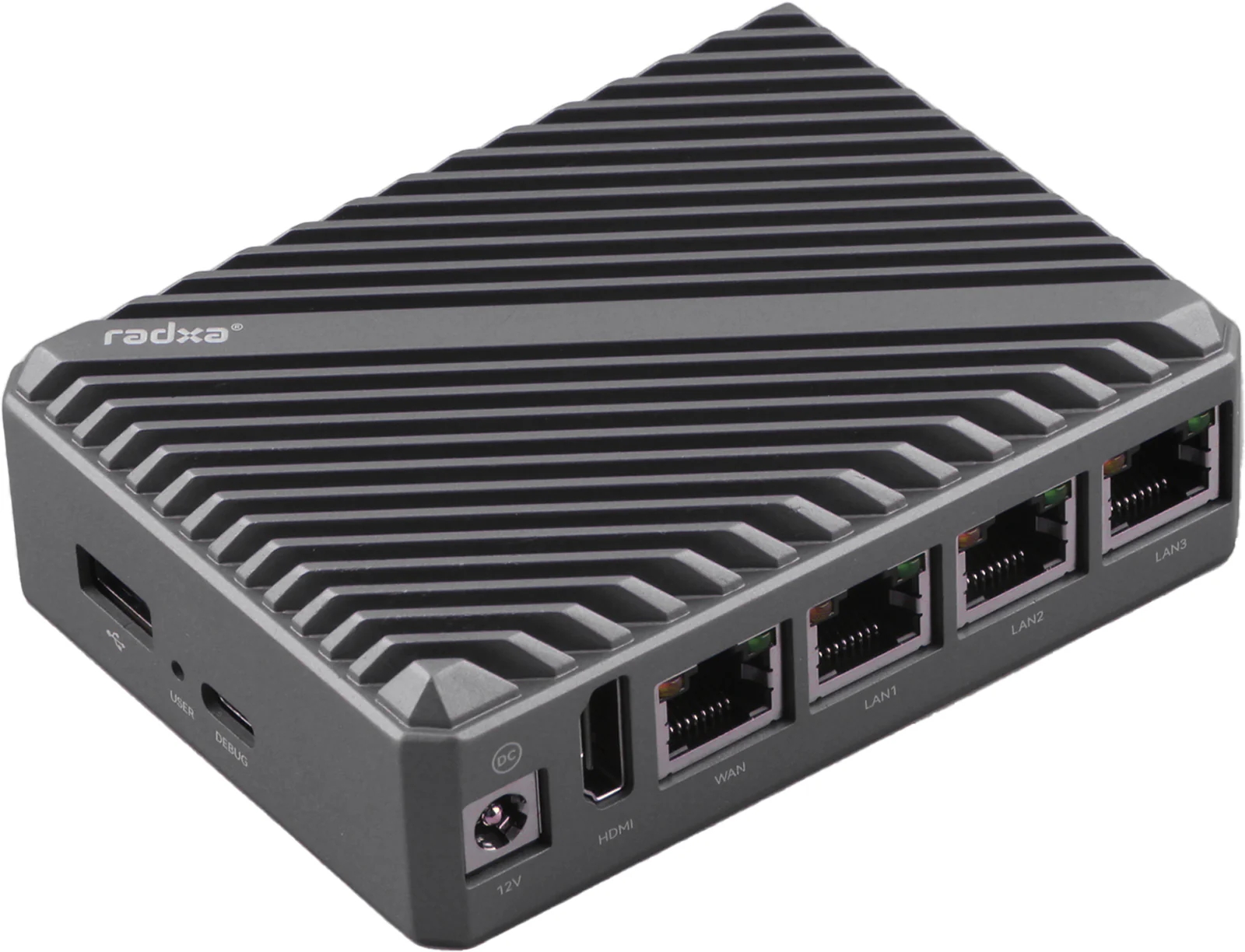

RADXA E24C - a network computer with 4K and 4 Gigabit Ports The Radxa E24C is a compact, high performance network computer powered by the Rockchip RK3528A SoC. It was specifically designed for routing, edge networking and industrial applications. Hardware overview: Rockchip RK3528A SOC with Quad core ARM Cortex-A53 NPU supporting INT4 / INT8 / INT16 / FP16 / BF16 and TF32 acceleration computing power is up to 5TOP@INT8 1GB/ 2GB/ 4GB LPDDR4 RAM onboard eMMC with 8GB/ 16GB or 32GB onboard SPI Flash (optional) Aluminum Alloy Case for Efficient Heat Dissipation Interfaces: 4x Gigabit Ethernet Ports 1x HDMI 2.1 supporting up to 4K 1x M.2 M Key Connector with PCIe 2.1 1-lane for M.2 NVMe SSD 1x microSD Card slot 1x USB3.0 OTG Type-C Port for Data and Debug 3x USB 2.0 HOST Type A ports 1x 2-Pin 1.25mm Fan Header 1x 2-Pin 1.25mm RTC Battery Connector 1x 12V DC Jack 5525 1x maskrom button 1x Power button 1x User Button 5x LED Status Indicator Lights (4x Network/ 1x Power) 14-Pin 0.1” (2.54mm) header supporting a wide range of interface options: 1x SPI 1x UART 1x I2C 1x 5V Power Out 1x 3.3V Power Out Software: ARMv8 Instruction Set Debian Linux support OpenWrt support Hardware access/control library for Linux Power options and demands: via DC Jack 5525 with 12V (12V/2A under full load / all peripherals connected) Peripherals: M.2 M Key connector with PCIe Gen2 1-lane interface for M.2 2280 NVMe SSD´s USB - 3x USB 2.0 HOST Type-A Port and 1x USB 2.0 OTG Type-C for UART Debug and Data 4 x Gigabit Ethernet ports which can be configured as WAN/LAN, redundant or alternatively configured for load balancing, network segmentation or redundancy e.g. via OpenWrt This versatile networking architecture makes the E24C ideal for demanding use cases suchas IoT gateways, media streaming, and file transfers. It offers network redundancy and load balancing for enhanced reliability. Availability until at least 9/2034
