Rock 5B/5A

Radxa zbh. Alu Kühlkörper für Rock 5B Gewicht: 41g inkl. Kühlpads SPEZIFIKATIONEN Lochdurchmesser: 3mm Abmessungen: 4 x 4 x 1,2 cm Geschwindigkeit: 4300rpm ± 10% Abstand der Löcher: 5,5 cm Geräusch: 18dB Material: Aluminium Lager: Legierungslager Spannung: 5V

 Rock5 Model B product details* RK3588 64bit octa core processor Quad Core A76 2.4GHz + Quad Core A55 1.8GHz GPU Mali G610MP4 GPU (up to 5 channel 4k UI) 8K 10bit decoder, 8K encoder NPU 6T NPU Memory LPDDR4  LPDDR4x with 4, 8 or 16GB SPI Flash 32MB SPI flash soldered  Wifi/BT WiFi 6E and BT5.2 support eMMC module (removable) Industrial level high performance eMMC storage, 16G/32G/64G/128G available Micro SD card uSD slot supports up to 128G uSD card M.2 Interfaces M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported Display HDMI Triple display support (with HDR) 2x HDMI 2.1 up to 8k@60FPS 1x USB-C with DP up to 8K@30FPS HDMI in with up to 4K@60FPS 1x MIPI DSI  Peripherals MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 HOST x3 1x USB-C 2x USB-A Network Wireless / Bluetooth WiFi 6E and BT5.2 LAN 2.5GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pin expansion header : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD (new generation QC/PD protocol IC) Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 100mm x 72mm (Pico ITX form factor) Essentials You Need ROCK5 Model B PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard & Mouse Monitor with HDMI input

Radxa ROCK 5A zbh. Heatsink mit Lüfter

Radxa Metal Case for Rock 5B+ Packliste · Obere Abdeckung · Untere Abdeckung · 4x M2.5x6 Kupferpfeiler · 4 x CM2.5x4mm-Schrauben · 9 x KM2,5x4mm Schrauben mit CD-Muster Anleitung Aufbau: https://radxa.com/products/accessories/metal-case-for-rock5bp#overview

Rockchip RK3588 64bit octa core ARM based SBC RADXAs neueste SBC-Generation auf der Basis des Rockchip RK3588 in einem kompakten Formfaktor, der mit einer breiten Palette an klassenführenden Funktionen, Merkmalen und Erweiterungsoptionen ausgestattet ist. Sie sind in verschiedenen LPDDR4x RAM-Speicheroptionen (4, 8 und 16 GB) erhältlich. Rock5 Model A product details RK3588S 64bit octa core processor Quad Cortex®-A76 @ 2.2~2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm® DynamIQ™ confguration GPU Arm Mali™ G610MC4 GPU supporting: – OpenGL® ES1.1, ES2.0, and ES3.2 – OpenCL® 1.1, 1.2 and 2.2 – Vulkan® 1.1 and 1.2 – Embedded high performance 2D image acceleration module NPU Supporting INT4/INT8/INT16/FP16/BF16 and TF32 acceleration and computing power is up to 6TOPs Memory LPDDR4  64bits LPDDR4x RAM with 4, 8 or 16GB SPI Flash 32MB SPI flash soldered  Display HDMI and MIPI DSI Triple display support via two HDMI, and one MIPI DSI H.265/H.264/AV1/AVS2 multivideo decoder up to 8K@60fps H.264/H.265 multivideo decoder up to 8K@30fps Interfaces · 1x USB Type-C™ port for power supporting USB PD 2.0 and QC 2.0 · 1x Micro SD Card · 2x micro HDMI output ports (1x up to 8Kp60, 1x up to 4Kp60 display resolution) · 2x USB2 Type A HOST ports · 1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port · 1x Gigabit Ethernet port (supports PoE with add-on PoE HAT) · 1x M.2 E Key with PCIe 2.1 one-lane, SATA, USB 2.0 support · 1x eMMC module connector for eMMC 5.1 support · 1x Camera port (1x four-lane MIPI CSI or 2x two-lane MIPI CSI) · 1x LCD Display port (four-lane MIPI DSI) · Miscellaneous – 1x RTC battery connector – 1x PWM fan connector – 1x Power button – 1x Recovery pin, 1x Maskrom pin – 1x Power LED, 1x User LED ·40 pin 0.1” (2.54mm) header supporting a wide range of interface options: – Up to 5 x UART(2x with ?ow control) – Up to 3 x SPI bus – Up to 6 x I2C bus – Up to 1 x PCM/I2S – Up to 2 x SPDIF – Up to 7 x PWM – Up to 1 x CAN – Up to 1 x ADC – Up to 27 x GPIO – 2 x 5V DC power in/out – 2 x 3.3V power out ? Software · ArmV8 Instruction Set · Debian/Ubuntu Linux support · Android 12 support · OpenFyde OS(Chromium OS fork) support · RKNPU2 NPU software stack · Hardware access/control library for Linux/Android USB 3.0 HOST x3 1x USB-C 2x USB-A Network LAN 1GbE LAN with PoE support *additional HAT is required for powering via PoE WIFI via optional WIFI module Others RTC battery connector for time backup USB Type-C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A Qualcomm® Quick Charge™ 2.0 QC 3.0/2.0 adapter, 9V/2A, 12V/2A Power adapter with fixed voltage in 5.2V to 20V range on the USB Type-C port ROCK 5A has been designed to operate between 0°C to 50°C Size 85mm x 56mm

8K Pico-ITX Single Board Computer with LPDDR5 RADXA's recent upgrade of the successful Rock5 B+ is packed with cutting edge features, DDR5 and expansion possibilities based on the powerful Rockchip RK3588 CPU in the Pico-ITX form factor.  Radxa Rock5B+ product details RK358864bit octa core processor Quad Cortex®-A76 @ 2.2/2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm®DynamIQ™ configuration GPU Arm® Mali™ G610MC4 GPU supporting: – OpenGL® ES1.1, ES2.0, and ES3.2 – OpenCL® 1.1, 1.2 and 2.2 – Vulkan® 1.1 and 1.2 – Embedded high performance 2D image acceleration module NPU 6T NPU Memory 64bit LPDDR5 5500MT/s LPDDR5 with 8, 16, 24 or 32GB SPI Flash 32MB SPI flash soldered  Wifi/BT WiFi 6E and BT5.2 support via opt. WiFi module eMMC no EMMC possible on this Device Micro SD card uSD slot supports up to 128G uSD card M.2 Interfaces M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported Display HDMI Triple display support (with HDR) 2x HDMI 2.1 up to 8k@60FPS 1x USB-C with DP up to 8K@30FPS HDMI in with up to 4K@60FPS 1x MIPI DSI  Peripherals MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 HOST x3 1x USB-C 2x USB-A Network Wireless / Bluetooth WiFi 6E and BT5.2 LAN 2.5GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pinexpansionheader : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD (new generation QC/PD protocol IC) Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 100mm x 72mm (Pico ITX form factor) Essentials You Need ROCK5 Model B+ PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard & Mouse Monitor with HDMI input

8K Pico-ITX Single Board Computer with LPDDR5 RADXA's recent upgrade of the successful Rock5 B+ is packed with cutting edge features, DDR5 and expansion possibilities based on the powerful Rockchip RK3588 CPU in the Pico-ITX form factor.  Radxa Rock5B+ product details RK358864bit octa core processor Quad Cortex®-A76 @ 2.2/2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm®DynamIQ™ configuration GPU Arm® Mali™ G610MC4 GPU supporting: – OpenGL® ES1.1, ES2.0, and ES3.2 – OpenCL® 1.1, 1.2 and 2.2 – Vulkan® 1.1 and 1.2 – Embedded high performance 2D image acceleration module NPU 6T NPU Memory 64bit LPDDR5 5500MT/s LPDDR5 with 8, 16, 24 or 32GB SPI Flash 32MB SPI flash soldered  Wifi/BT WiFi 6E and BT5.2 support via opt. WiFi module eMMC no EMMC possible on this Device Micro SD card uSD slot supports up to 128G uSD card M.2 Interfaces M.2 connector M key (bottom) for NVMe with PCIe 3.0 x4 lanes M.2 connector E key (top) for connectivity with PCIe 2.0 x1/SDIO/UART, WiFi6 cards supported Display HDMI Triple display support (with HDR) 2x HDMI 2.1 up to 8k@60FPS 1x USB-C with DP up to 8K@30FPS HDMI in with up to 4K@60FPS 1x MIPI DSI  Peripherals MIPI DSI 2 lanes via FPC connector HDMI and MIPI DSI can work at the same time, support mirror mode or extend mode. Audio 3.5mm jack with mic HD codec that supports up to 24-bit/96kHz audio. Camera MIPI CSI MIPI CSI 2 lanes via FPC connector, support up to 8MP camera USB 3.0 HOST x3 1x USB-C 2x USB-A Network Wireless / Bluetooth WiFi 6E and BT5.2 LAN 2.5GbE LAN with PoE support additional HAT is required for powering via PoE IO 40-pinexpansionheader : - 1 x UART - 2 x SPI bus - 2 x I2C bus - 1 x PCM/I2S - 1 x SPDIF - 1 x PWM - 1 x ADC - 6 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Others RTC battery connector for time backup Power USB PD (new generation QC/PD protocol IC) Support USB Type C PD 2.0, 9V/2A, 12V/2A Power Supply Qualcomm® Quick Charge™ Support QC3.0/2.0 adapter, 9V/2A, 12V/1.5A Size 100mm x 72mm (Pico ITX form factor) Essentials You Need ROCK5 Model B+ PD/QC compliant power adapter with USB- C port equal or larger than 15W Keyboard & Mouse Monitor with HDMI input

Luxury version for the engaged ROCK 5 Model A fan with additional height! Perfect as media player or server with e.g. the M.2 Extension board option sufficient height for assembly of the M.2 Extension board including SSD heatsink up to 5mm thickness inside of the housing Easy access to the board remove only 4 screws to get complete access to your ROCK5 Model A attractive clean design access to SD card slot without opening the case opening for Cam and MIPI DSI ribbon cables enough height for mounted PoE hat external antenna hole on/off button access easy and flexible installation with the optional wall mount bracket Dimension 94x71x47mm Package content Aluminum housing acrylic cover screws silicon feet

Gehäuse für den Rock 4C+ mit aktiver Lüftung um auch bei Temperaturen von mehr als 50 Grad zu kühlen. 50-70 Grad möglich. Perfekt als Mediaplayer oder Server mit z.B. der M.2 Extension Board Option        ausreichende Höhe für die Montage der M.2 Erweiterungsplatine inklusive SSD-Kühlkörper bis zu 5mm Dicke im Inneren des Gehäuses     Einfacher Zugriff auf das Board     Entfernen Sie nur 4 Schrauben, um vollständigen Zugang zu Ihrem ROCK4 Model C+ zu erhalten     attraktives, sauberes Design     Zugang zum SD-Kartenslot ohne Öffnen des Gehäuses     Öffnung für Cam und MIPI DSI Flachbandkabel     Genügend Höhe für die Montage eines PoE-Hat     Öffnung für externe Antenne     Zugang zur Ein/Aus-Taste     einfache und flexible Installation mit der optionalen Wandhalterung     Abmessungen 94x71x47mm Inhalt der Verpackung     Aluminium-Gehäuse     Acrylabdeckung     Schrauben     Silikonfüße

Rockchip RK3588 64bit octa core ARM based SBC RADXAs neueste SBC-Generation auf der Basis des Rockchip RK3588 in einem kompakten Formfaktor, der mit einer breiten Palette an klassenführenden Funktionen, Merkmalen und Erweiterungsoptionen ausgestattet ist. Sie sind in verschiedenen LPDDR4x RAM-Speicheroptionen (4, 8 und 16 GB) erhältlich. Rock5 Model A product details RK3588S 64bit octa core processor Quad Cortex®-A76 @ 2.2~2.4GHz and a quad Cortex®-A55 @ 1.8GHz based on Arm® DynamIQ™ confguration GPU Arm Mali™ G610MC4 GPU supporting: – OpenGL® ES1.1, ES2.0, and ES3.2 – OpenCL® 1.1, 1.2 and 2.2 – Vulkan® 1.1 and 1.2 – Embedded high performance 2D image acceleration module NPU Supporting INT4/INT8/INT16/FP16/BF16 and TF32 acceleration and computing power is up to 6TOPs Memory LPDDR4  64bits LPDDR4x RAM with 4, 8 or 16GB SPI Flash 32MB SPI flash soldered  Display HDMI and MIPI DSI Triple display support via two HDMI, and one MIPI DSI H.265/H.264/AV1/AVS2 multivideo decoder up to 8K@60fps H.264/H.265 multivideo decoder up to 8K@30fps Interfaces · 1x USB Type-C™ port for power supporting USB PD 2.0 and QC 2.0 · 1x Micro SD Card · 2x micro HDMI output ports (1x up to 8Kp60, 1x up to 4Kp60 display resolution) · 2x USB2 Type A HOST ports · 1x USB3 Type A HOST port, 1x USB3 Type A OTG/HOST port · 1x Gigabit Ethernet port (supports PoE with add-on PoE HAT) · 1x M.2 E Key with PCIe 2.1 one-lane, SATA, USB 2.0 support · 1x eMMC module connector for eMMC 5.1 support · 1x Camera port (1x four-lane MIPI CSI or 2x two-lane MIPI CSI) · 1x LCD Display port (four-lane MIPI DSI) · Miscellaneous – 1x RTC battery connector – 1x PWM fan connector – 1x Power button – 1x Recovery pin, 1x Maskrom pin – 1x Power LED, 1x User LED ·40 pin 0.1” (2.54mm) header supporting a wide range of interface options: – Up to 5 x UART(2x with ?ow control) – Up to 3 x SPI bus – Up to 6 x I2C bus – Up to 1 x PCM/I2S – Up to 2 x SPDIF – Up to 7 x PWM – Up to 1 x CAN – Up to 1 x ADC – Up to 27 x GPIO – 2 x 5V DC power in/out – 2 x 3.3V power out ? Software · ArmV8 Instruction Set · Debian/Ubuntu Linux support · Android 12 support · OpenFyde OS(Chromium OS fork) support · RKNPU2 NPU software stack · Hardware access/control library for Linux/Android USB 3.0 HOST x3 1x USB-C 2x USB-A Network LAN 1GbE LAN with PoE support *additional HAT is required for powering via PoE WIFI via optional WIFI module Others RTC battery connector for time backup USB Type-C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A Qualcomm® Quick Charge™ 2.0 QC 3.0/2.0 adapter, 9V/2A, 12V/2A Power adapter with fixed voltage in 5.2V to 20V range on the USB Type-C port ROCK 5A has been designed to operate between 0°C to 50°C Size 85mm x 56mm

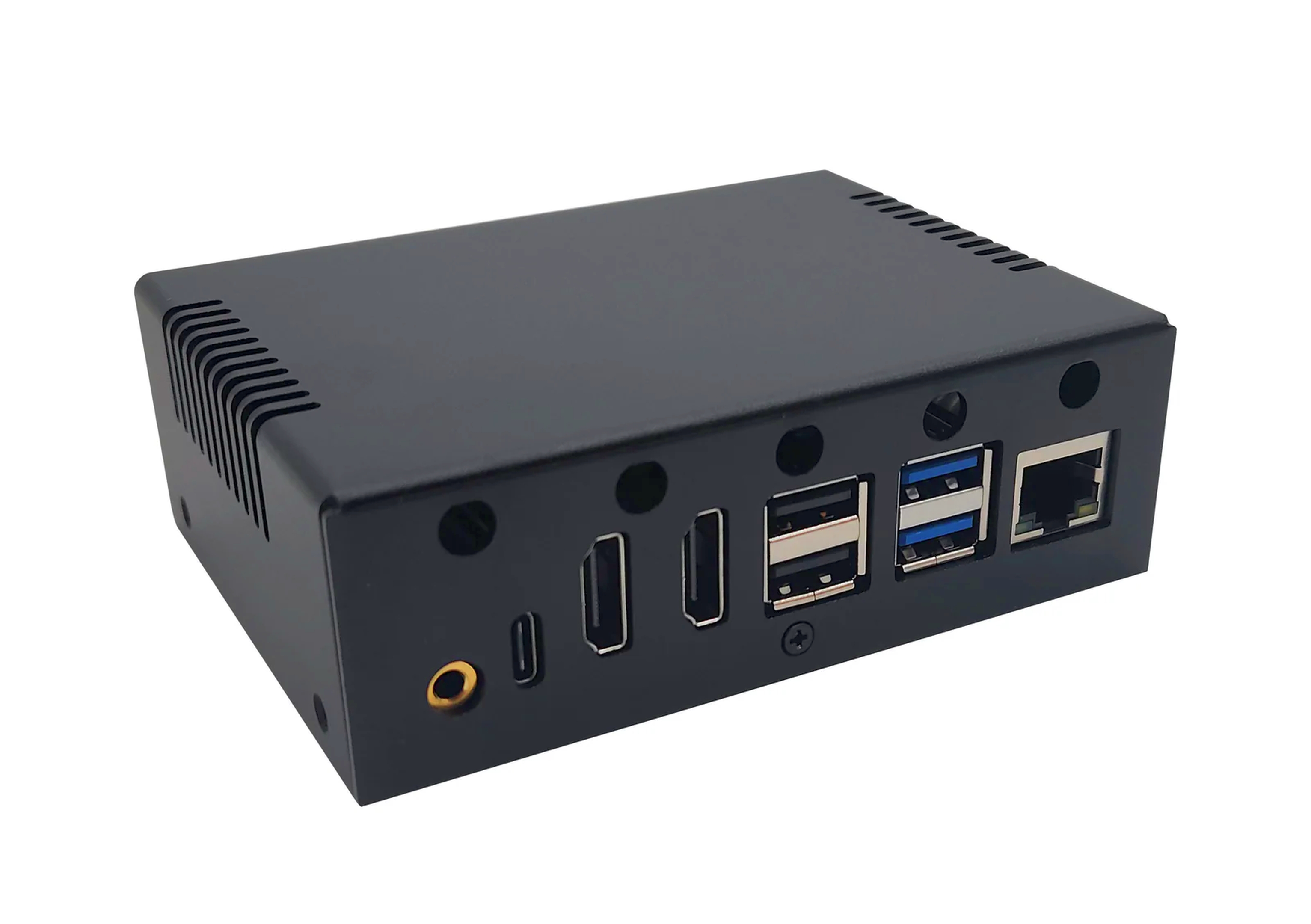

Gehäuse für den Radxa Rock 5B+. Kein Lüfter im Lieferumfang
