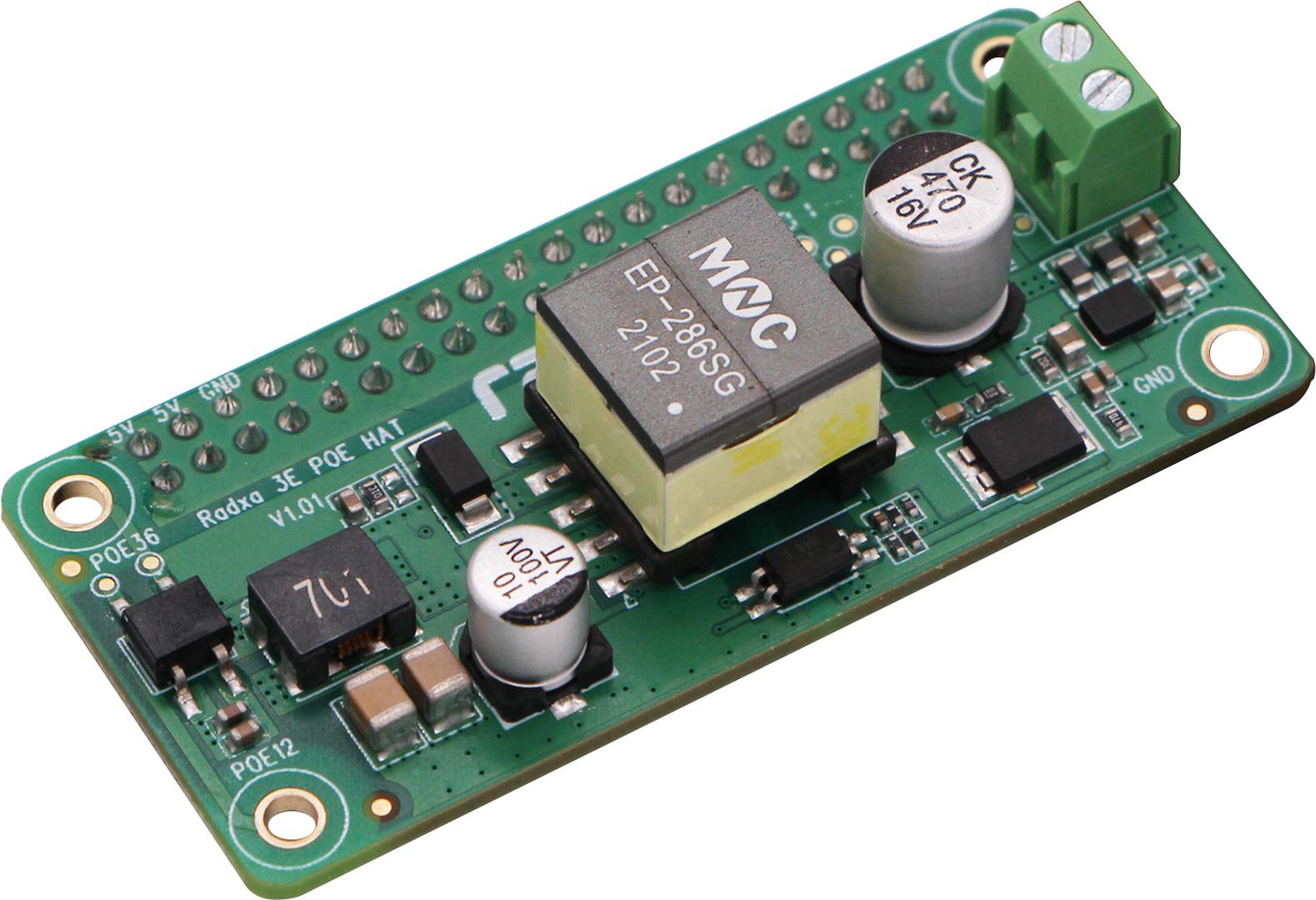

RADXA Zero PoE HAT Enable the PoE (Power over Ethernet) functionality of your RADXA Zero 3E with this optional PoE HAT PoE standard IEEE 802.3af Dimensions Size 65mm x 30mm Operating Temperature 0-50° C Essentials You Need RADXA ZERO 3E RADXA Zero 3E PoE HAT Lan connection with PoE MicroSD Card Keyboard & Mouse Monitor with HDMI input ______________________________________________________ Additional information & Setup instructions https://docs.radxa.com/en/zero/zero3/accessories/3e-poe-hat?

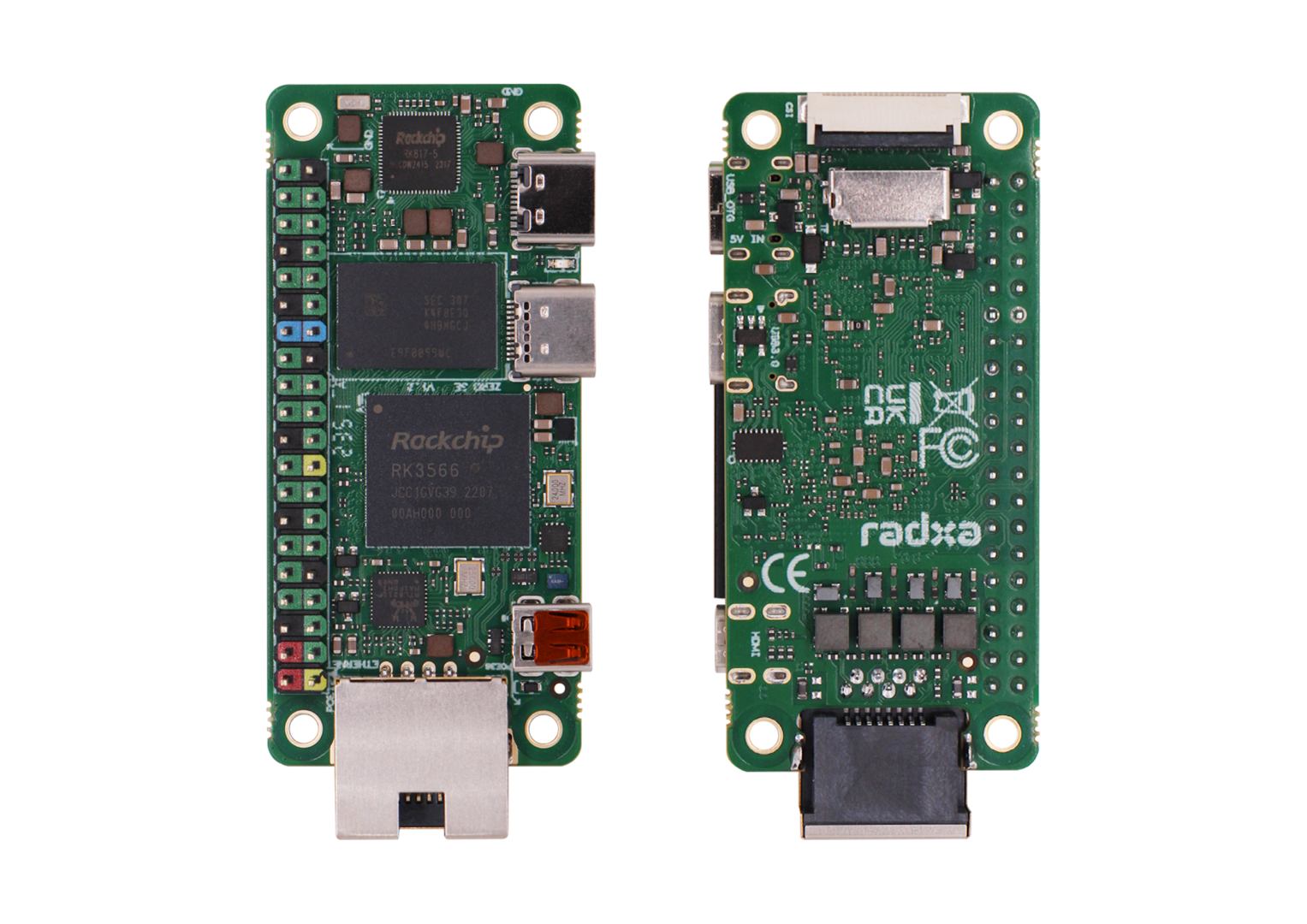

Product information Rockchip RK3566 64bit quad core based Mini SBC Quadcore power with up to 8GB LPDDR4 RAM with the dimensions of an USB-stick.   RADXA Zero 3E product details Rockchip RK3566 64bit quad core processor Quad-core Arm® Cortex®-A55 (ARMv8) 64-bit @ 1.6GHz GPU  Arm Mali™-G52-2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0 Memory LPDDR4  LPDDR4 1GB /2GB /4GB /8GB Micro SD card TF Card Slot Display Micro HDMI 1080p@60fps via Micro HDMI H.264/H.265 decoder up to 4K@60fps H.264/H265 encoder up to 1080p@60fps USB 3.0 Type-C HOST x1 USB 3.0 HOST USB 2.0 Type-C OTG x1 Micro USB 2.0 OTG (for power and data) MIPI CSI x1 MIPI CSI Camera Interface (4-lane MIPI CSI) Network  Gigabit Ethernet with PoE support (additional PoE HAT required) IO 40-pin expansion header: - up to 5 x UART - 1 x SPI bus - up to 2 x I2C bus - 1 x PCM/I2S - up to 6 x PWM - up to 28 x GPIO - 2 x 5V DC power in - 2 x 3.3V power pin Software - ARMv8 Instruction Set - Debian/Ubuntu Linux support - Hardware access/control library for Linux Others Size 65mm x 30mm Operating Temperature 0-50° C   Essentials You Need RADXA ZERO 3E Power adapter with USB type C port equal or larger than 5W (DC 5V/1A) MicroSD Card or onboard eMMC module Keyboard & Mouse Monitor with HDMI input opt. PoE HAT ______________________________________________________ Additional information & Setup instructions https://docs.radxa.com/zero/zero3/getting-start
