Wireless LAN - Antennen-Adapter

RF Elements Sector CARRIER CLASS 2GHz 14dBi MiMo 2x2 (H+V) CARRIER CLASS Sectors are addressing customer requirements for RF performance, co-location noise resistance, ease of installation and cost effi ciency. Antennas feature innovative BackShield?, patent pending sys- tem of frequency selective refl ectors incorporated into antenna structure to attenuate side lobes and back side near fi eld radiation. Sector Antenna 2.4 GHz 14 dBi is a dual polarization version of CARRIER CLASS Sector with one horizontal and one vertical polarization antenna. Antenna Connection 2x RP-SMA on integrated semi-fl ex pigtails Antenna Type 2.4 GHz 14 dBi Enviromental IP55 Temperature -26°C to +60°C (-15°F to +140°F) Wind Survival 160 km/hour Weight 3.9 kg Single Piece Retail Box: 97 × 22 × 10 cm Frequency Range 2400 - 2485 MHz Gain Max 13.8 dBi Gain Typical 13.5 dBi Polarization Dual Linear H + V Azimuth Beam Width -3 dB H 75° / V 69° Elevation Beam Width -3 dB H 14.5° / V 14° Azimuth Beam Width -6 dB H 108° / V 100° Elevation Beam Width -6 dB H 20° / V 19° Front-to-Back Ratio (Min) 24 dB Cross Pol Isolation H 15 dB / V 13.5 dB Impedance 50 Ohm VSWR Max 1.8 VSWR Typical 1.4 Isolation Between Ports 18 dB RF elements® StationBox® S, StationBox® S CARRIER CLASS, RockShield? Cambium Networks? ePMP? 1000 Connectorized Radio* MikroTik? BaseBox**, NetBox** Ubiquiti Networks? UBNT Rocket? M2, UBNT Rocket? M2 Titanium

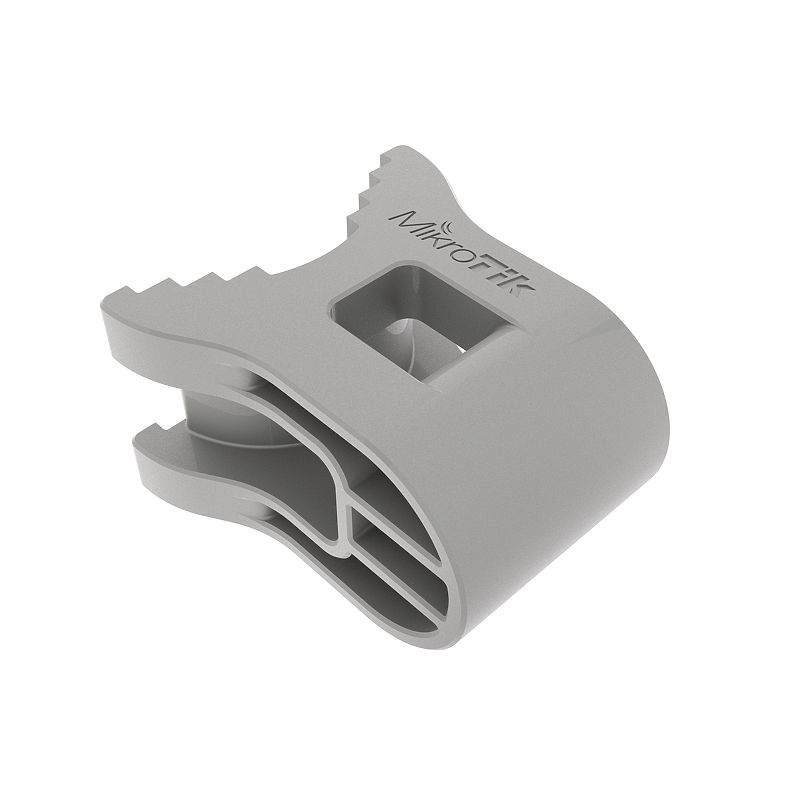

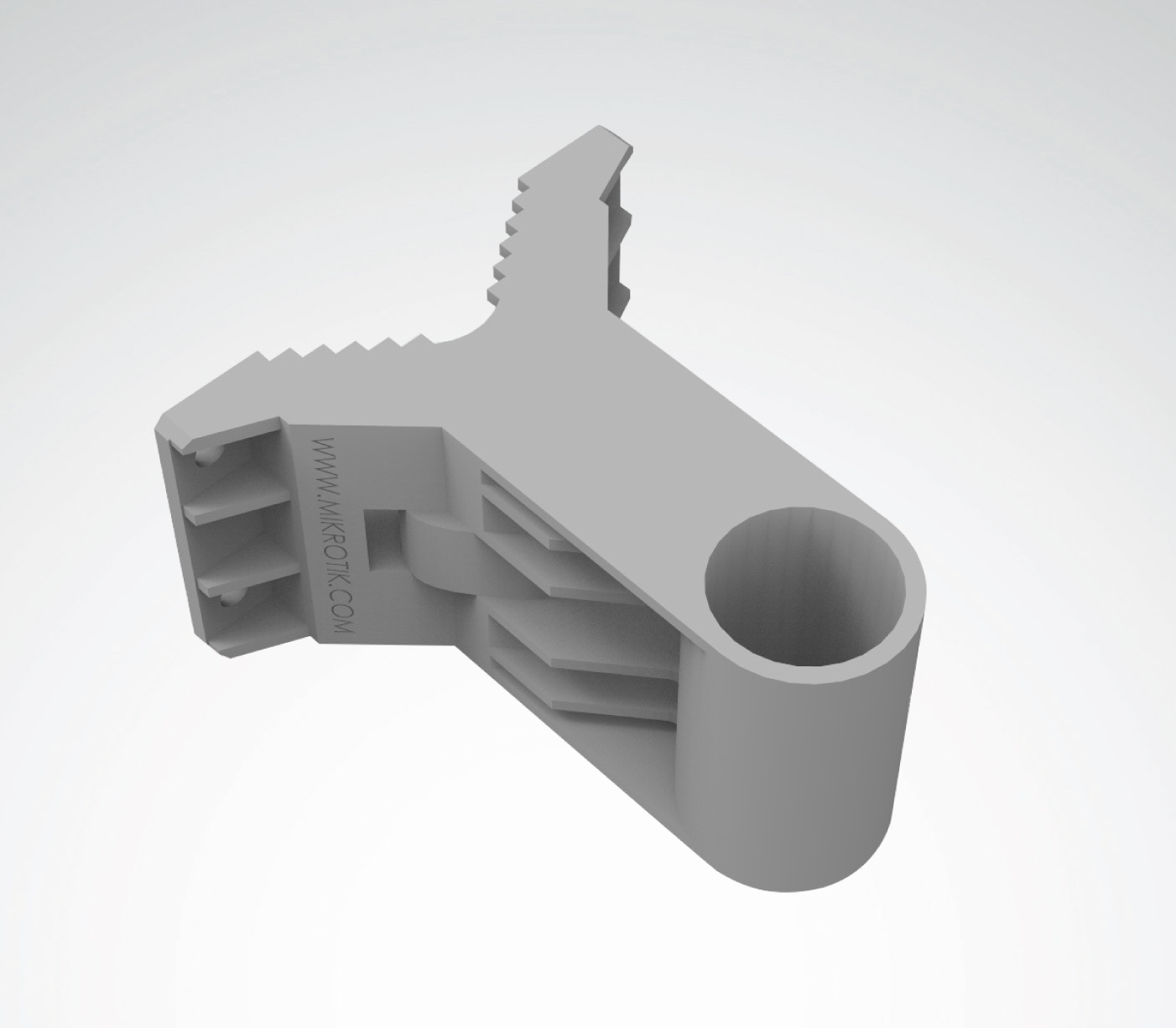

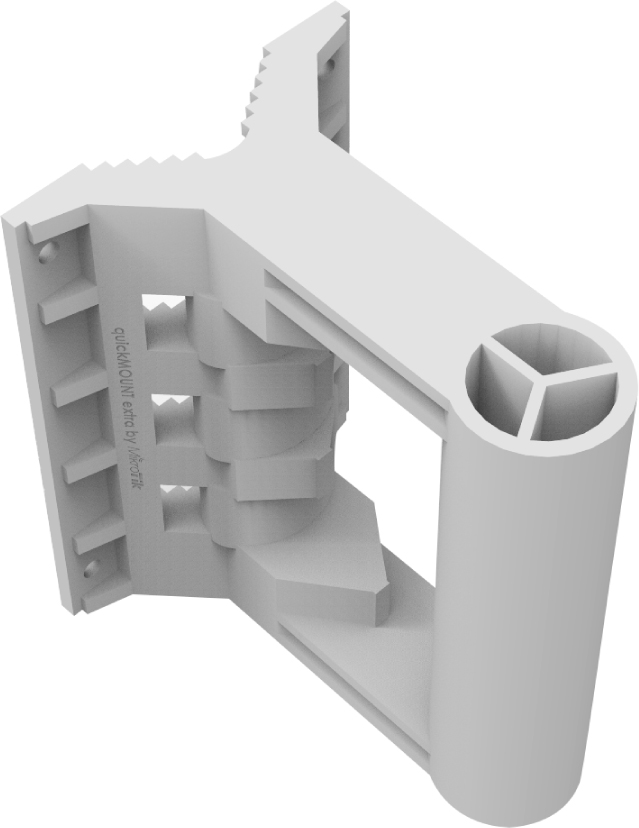

Product code QME Dimensions 102x135x150 mm Tube diameter 35 mm Max tube diameter to which mount can be attached 70 mm Maximum antenna weight 8 kg Maximum wind load 100 N Turn angle for MikroTik products 190° Compatible devices Any pole mounted antenna with weight under 8kg Mounting holes 4 (option to add 2 more) Operational temperature Range ±40° C Material anvilNITE?

RF Elements Omni Antenna for StationBox® Mikro and InSpot, 5GHz/5dBi, Outdoor/Indoor Omni Antenna for StationBox® 5GHz OARDSBX55 rubber duck 160mm, F13.7mm 5dBi 5.45-5.85GHz SMA R-P

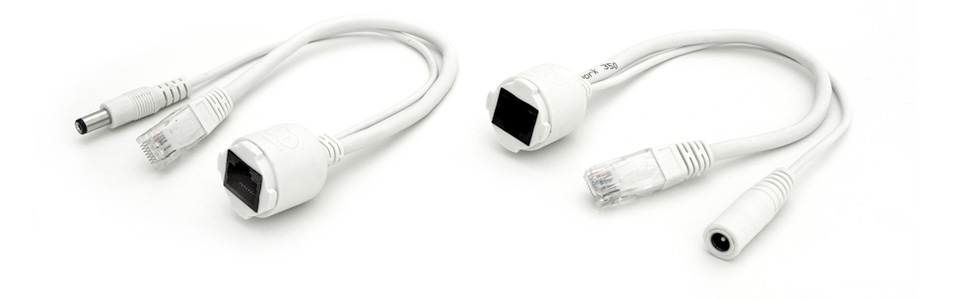

Set besteht aus 2 Kabelpeitschen mit Buchse auf Lan/Ethernet Kabel mit jeweils einmal DC/Hohlstecker Buchse und einmal Stecker 5.5mm / 2,1mm. Passives PoE, kein echtes PoE - Stromquelle muss auf Gerät ausgelegt sein und das Gerät muss einen Hohlstecker als Strom-Eingang haben.

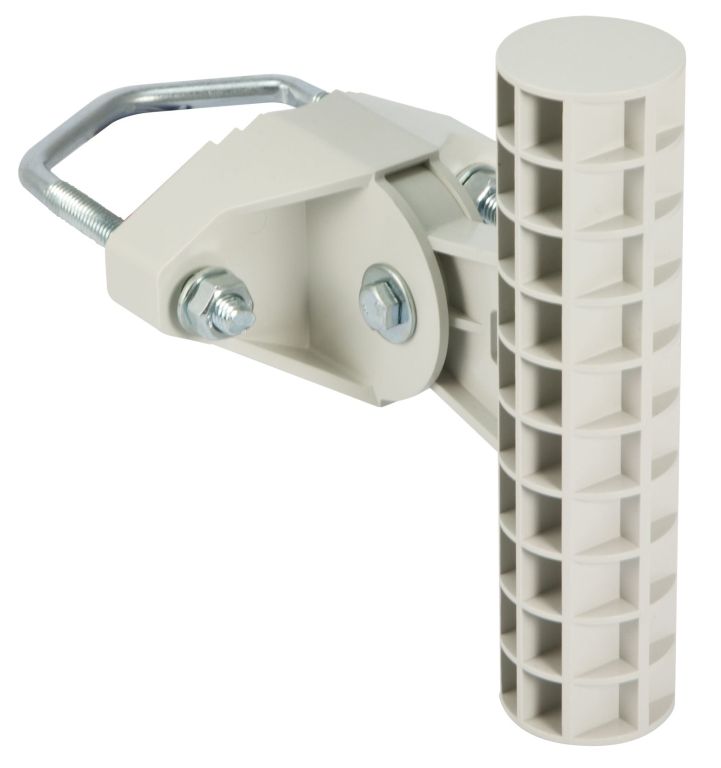

Wand-Masthalterung mit Schwenk/Neigefunktion für Outdoor-Accesspoint mit Rund-Aufnahme wie ALL0256N/ALL0258N/Ubiquiti Nanostation etc.

T-Stück, N-Type Buchse (female) auf 2x N-Type Buchse (female)

Cambium Networks cnWave 60GHz V3000 Client Node Antenna Assembly 40,5 dBi i, im 1er Pack

RF Elements Omni Antenna for StationBox® InSpot, Dual Band 2.4-2dBi/5GHz-3dBi, Indoor, MMCX connector Omni Antenna for StationBox® 2.4/5 GHz OARDSBX-DUAL25 rubber duck L-type 89mm, F7.6mm 2dBi/3dBi 2.4-2.5/5.1-5.8 GHz MMCX

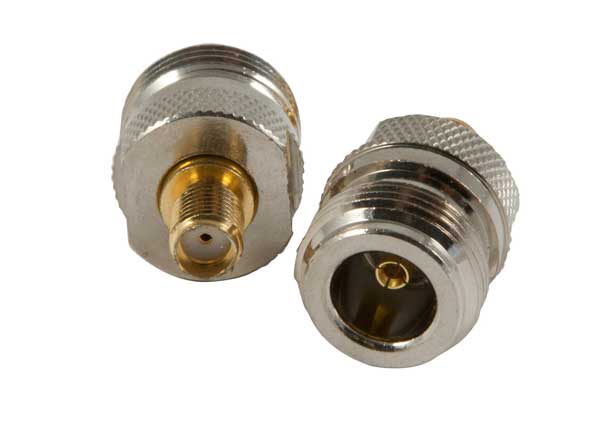

SMA Buchse (female) <-> N-Type Buchse (female)

RF Elements Omni Antenna for StationBox® Mikro and InSpot, 2.4GHz/4dBi , Outdoor/Indoor Omni Antenna for StationBox® 2.4 GHz OARDSBX244 rubber duck 160mm, F13.7mm 4dBi 2.4-2.5 GHz SMA R-P

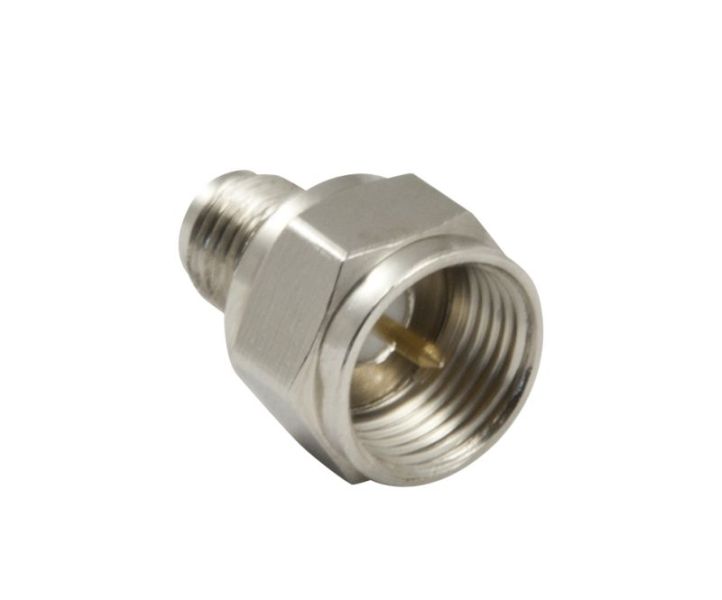

Antennen-Adapter SMA-Male auf FME-Male (GPS)

TwistPort™ Adaptor V2 introduces wide frequency range of operation: 5180 - 6400 MHz! The TwistPort Adaptor for ePMP™ 2000 AP makes the ePMP™2000 series compatible with all TwistPort™ Antennas. TwistPort™ Adaptors are equipped with our original quicklocking waveguide port. Connecting and disconnecting the ePMP™ 2000 AP into the TwistPort™ Adaptor is very simple and requires no tools.

RF Elements PassivePoE™ Injector V2

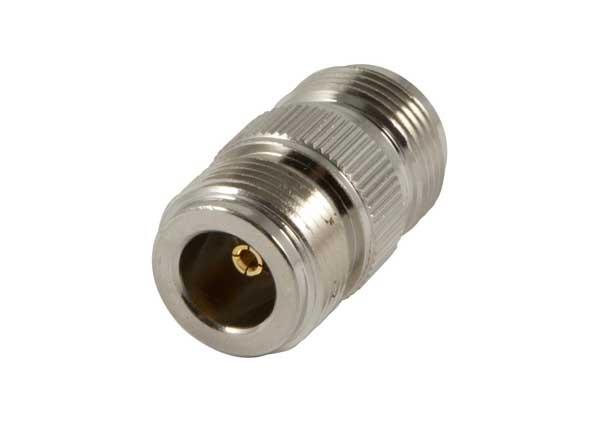

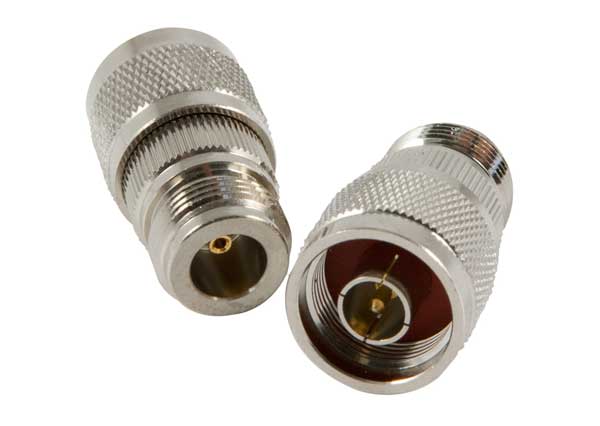

N-Type Buchse (female) <-> N-Type Buchse (female)

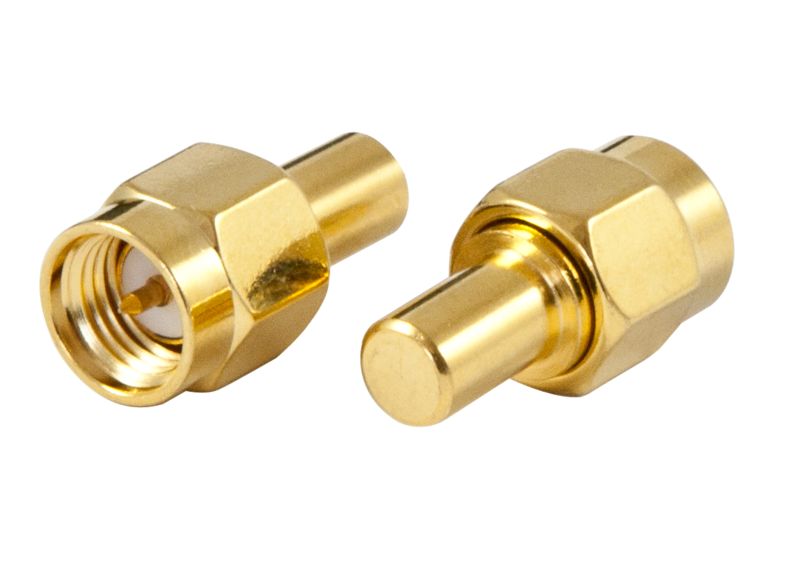

Wird an den nicht genutzten Antennenanschluß eines 3G/LTE Router angeschlossen und verhindert Einstreuungen und Störungen, die die Qualität der Verbindung beeinflussen können.   Dieser Terminator gaukelt auch dem Router einen Anschluß einer 2ter Antenne vor.

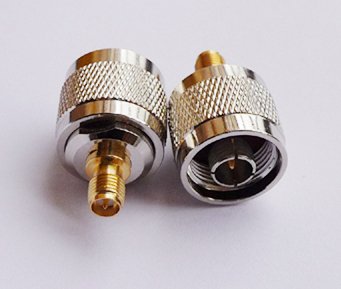

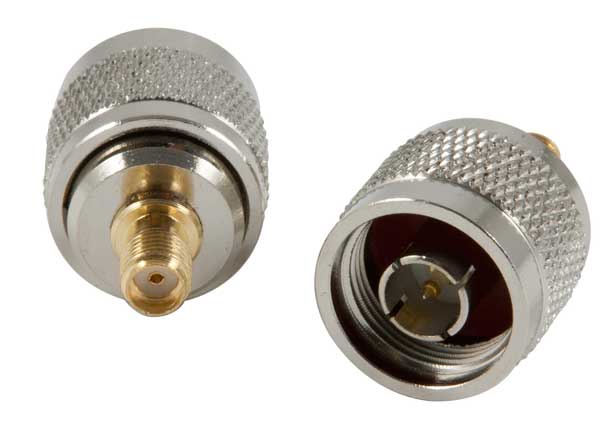

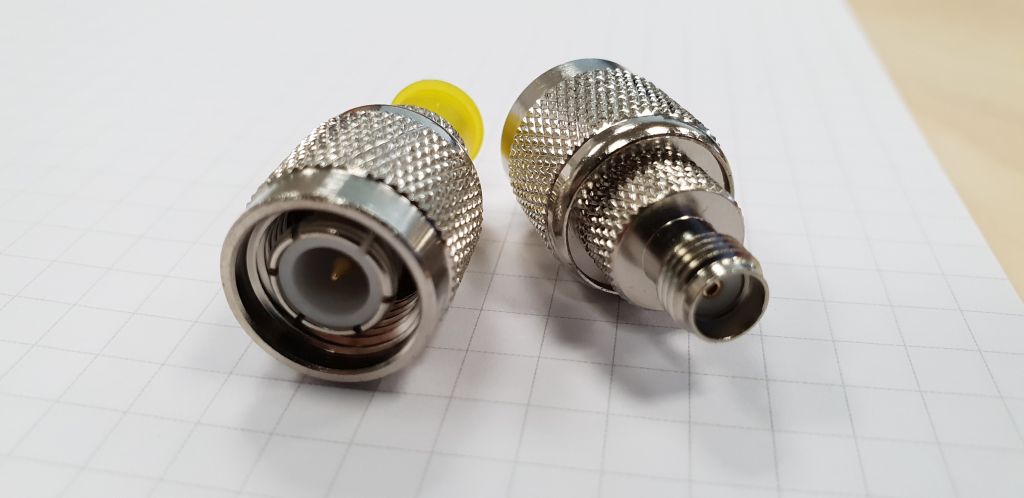

SMA Buchse (female) <-> N-Type Stecker (male)

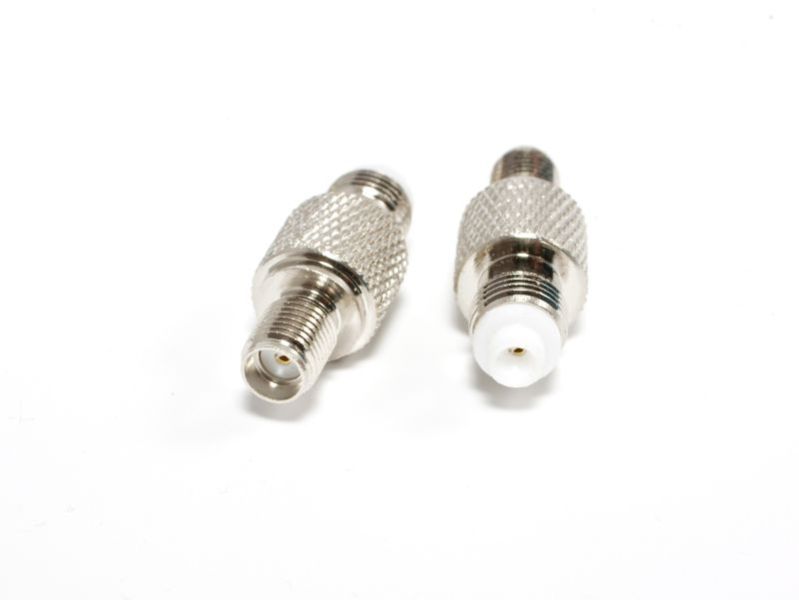

SMA Buchse (female) <-> SMA Stecker (male)

RF Elements StationBox® InSpot ? indoor enclosure StationBox® InSpot is indoor enclosure designed for build- ing of wireless hotspots. StationBox® InSpot directly supports MikroTik? RouterBoard? RB912, RB711 and RB411, also accomodates integrated RB751s and RB951s. InSpot enables installation on the firm wall or on the ceiling tile. Materials ABS plastic Operating Temp. -30 to +60 °C Flame Rating UL 94 HB Ceiling Tile Thickness 10 - 14 mm Weight 0.7 Kg / 1.5 lbs ? single piece incl. package 15.2 Kg / 33.5 lbs ? carton (20 pcs) Single Unit Retail Package: 6 × 23,5 × 25 cm 20 Units Carton Box: 63 × 50 × 28 cm

N-Type Stecker (male) <-> N-Type Stecker (male)

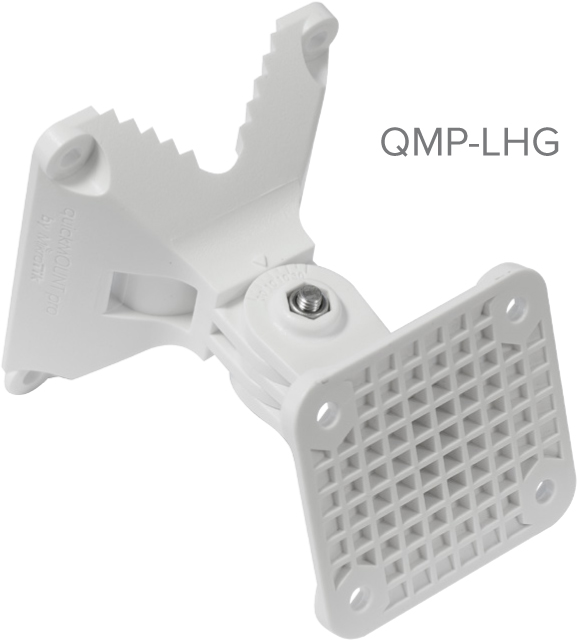

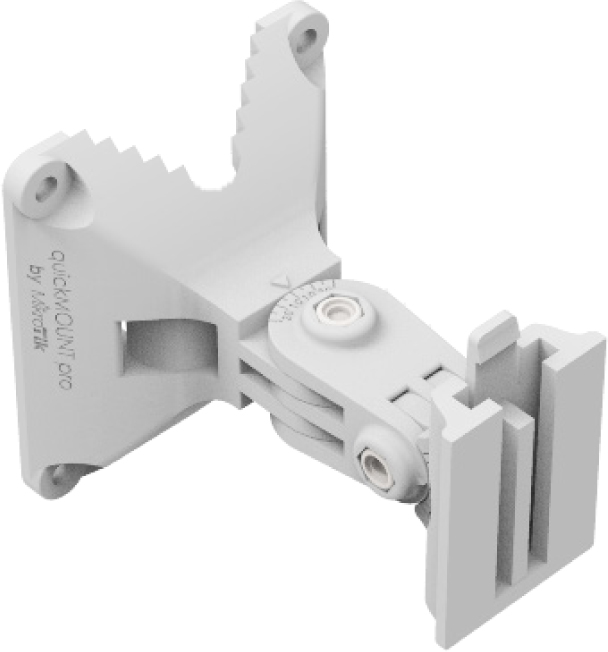

The quickMOUNT pro is a advanced wall mount adapter for small point to point and sector antennas. You can mount it on the wall or use it as an adapter from large diameter pole to small size antenna mounting clip ensuring reliable fitment. The quickMOUNT pro gives possibility to turn antenna within 140° both in horizontal and vertical plane. With the quickMOUNT pro it is possible to perfectly set antenna alignment using integrated graduated scale. You can use the quickMOUNT pro with any pole mountable device or Mikrotiks small mounting clip with weight less than 1.5 kg. It?s simple and low cost. Supports SXT, Omnitik, BaseBox or any other pole mountable device. The adapter is very durable due to it?s special plastic material composite - anvilNITE (TM). Product code QMP Dimensions 95x88x112mm Tube diameter 35 mm Max tube diameter to which mount can be attached 65 mm Maximum antenna weight 1.5 kg Maximum wind load 100 N Turn angle for Mikrotik products 140° Compatible devices SXT series, Omnitik, 3rd party antennas that are designed to be pole mounted Material anvilNITE?

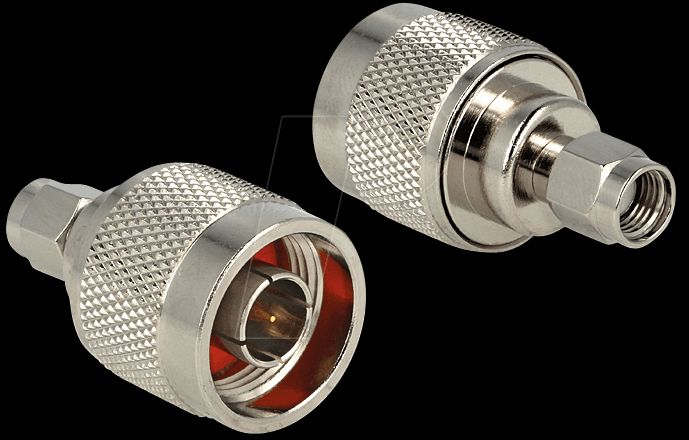

WLAN.eu Antennen-Adapter R-SMA Stecker (M) auf N-Type Stecker (M)

TwistPort™ Shielded Adaptor V2 introduces wide frequency range of operation: 5180 - 6400 MHz! The TwistPort™ Shielded Adaptor V2 for Rocket M5 makes the Rocket™ M5 compatible with all TwistPort™ Antennas. TwistPort™ Adaptors are equipped with our original quick locking waveguide port. Connecting and disconnecting the Rocket™ M5 into the TwistPort™ Adaptor V2 is very simple and requires no tools.

Antenna Connection TwistPort™ - Quick Locking Waveguide Port Radio Connection 2x Slide-On RP-SMA Materials Insert - Aluminium Alloy Adaptor - UV stabilized and weather resistant ABS plastic Flame Rating UL 94 HB Temperature -40°C to +60°C (-40°F to +140°F) Wind Survival 160 km/h Frequency Range 5400 - 5900 MHz Polarization Dual Linear H + V Cross Pol Isolation (Min) 29 dB VSWR Max 1.8 VSWR Typical 1.4 Impedance 50 Ohm 50 Ohm Isolation Between Ports 37 dB
