Radxa Cubie 5AE - 4GB (no EMMC)
Vorraussichtlich wieder verfügbar ab: 29.08.2025
Produktinformationen "Radxa Cubie 5AE - 4GB (no EMMC)"

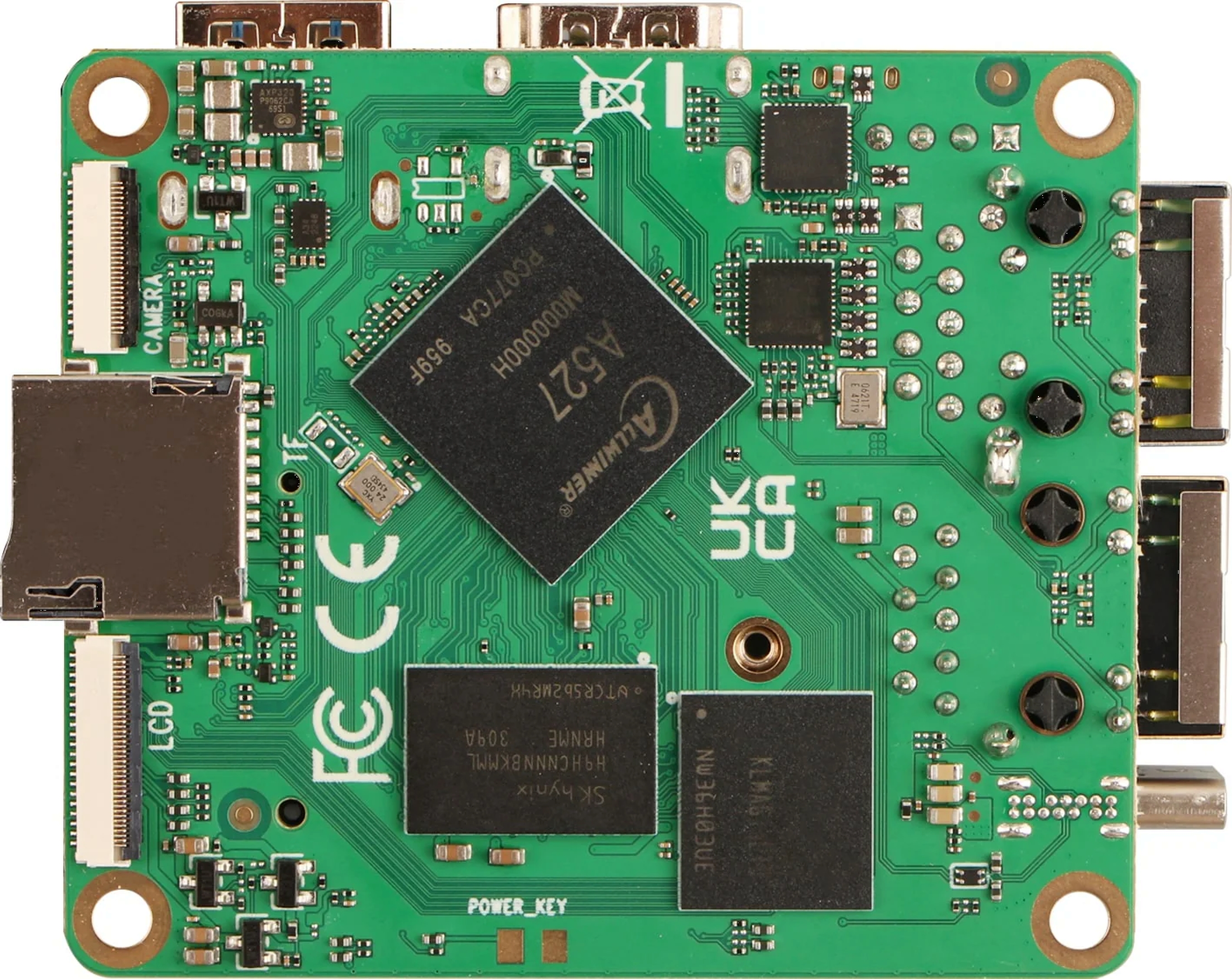

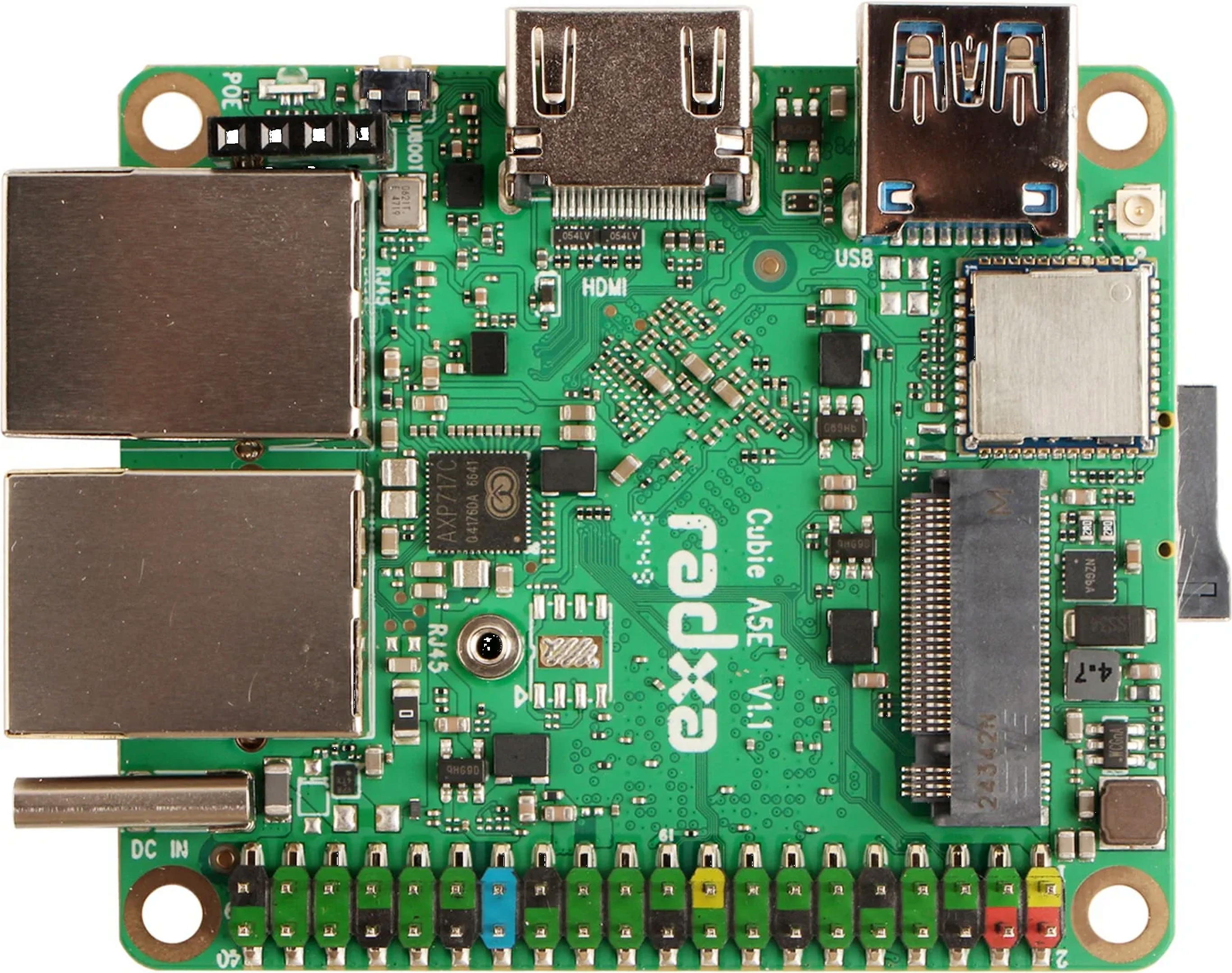

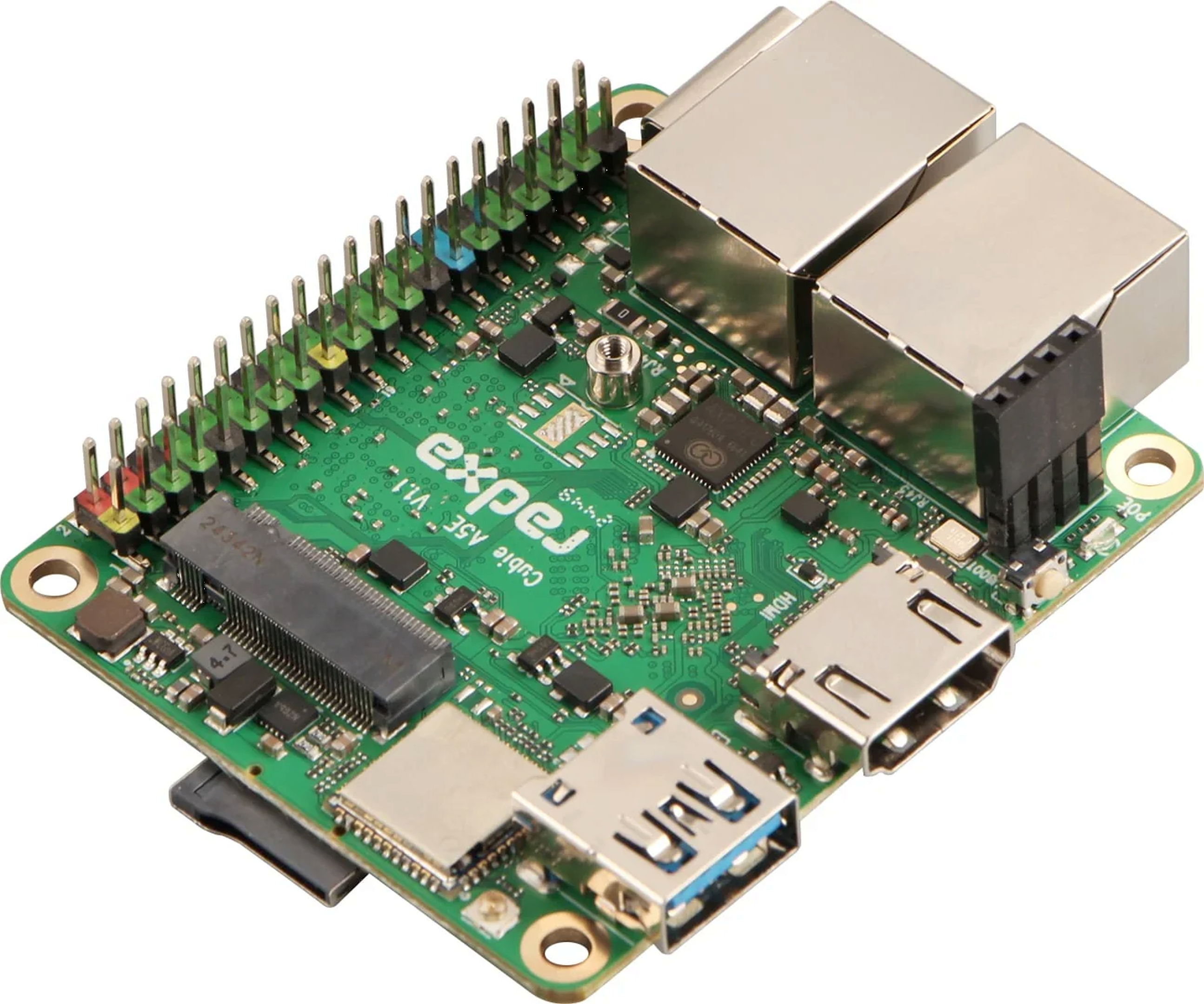

RADXA Cubie A5E
Allwinner A527 / T527 (industrial) powered tiny and compact SBC by RADXA
Processor
Allwinner A527 / T527 SoC
- Quad-Core ARM® Cortex®-A55 @1.8GHz & Quad-Core ARM Cortex-A55 @1.4GHz
- RISC-V CPU up to 200MHz
- NPU computing power up to 2TOPS (T527 SoC, theoretical peak performance)
ARM Mali™ G57 MC1 GPU
- OpenGL® ES 3.2/2.0/1.1
- Vulkan® 1.1/1.2/1.3
- OpenGL™ 2.2
RAM
LPDDR4 RAM
1GB /2GB /4GB
Onboard eMMC (depending on product variant)
8GB /16GB /32GB
Onboard SPI Flash for Bootloader
- H.265MP/VP9 multivideo decoder up to 4K@60fps
- H.264BL/MP/HP multivideo decoder up to 4K60fps
- H.264BP/MP/HP multivideo encoder up to 4K@25fps
- MJPEG encoder up to 4K@15fps, JPEG encoder up to 8K x 8K resolution
- Supports AES/DES/3DES/SM4 encryption and decryption algorithms
Interfaces
Display
1x HDMI® port up to 4Kp60
1x MIPI DSI Interface (four lane MIPI DSI)
Wireless
IEEE 802.11 a/b/g/n/ac/ax (WiFi 6) and Bluetooth 5.4 with BLE (external Antenna Conn)
Storage
1x Micro SD card slot
1x M.2 M Key Connector with PCIe 2.1 1-lane for M2 2230 NVMe SSD
USB
1x USB 3.0 5Gbps Type A HOST Port (USB3 HOST and PCIe 2.1 share some HW resources, requires software driven multiplexing)
1x USB 2.0 Type-C® OTG/HOST port for Data and Power
Ethernet
2x Gbit LAN Port with (1x PoE support via optional PoE hat)
GPIO
40-pin expansion header supporting:
- UART, I2C, SPI, GPIO, PWM
- 2 x 5V DC power in/out
- 2 x 3.3V DC power out
Other
- 1x power button
Software
·Debian Linux® support
·Android™ 13 support (Android 13 support requires the official BSP or vendor-provided SDK. Actual feature set may depend on further validation and licensing)
· Hardware access/control library for Linux
Power
USB Type-C with min 5V/3A ( alternative via PoE HAT)
Size
56mm x 65mm
Operation temperature:
0°C to 60°C
Certifications:
FCC, CE, RoHS
Availability:
until at least September 2032
