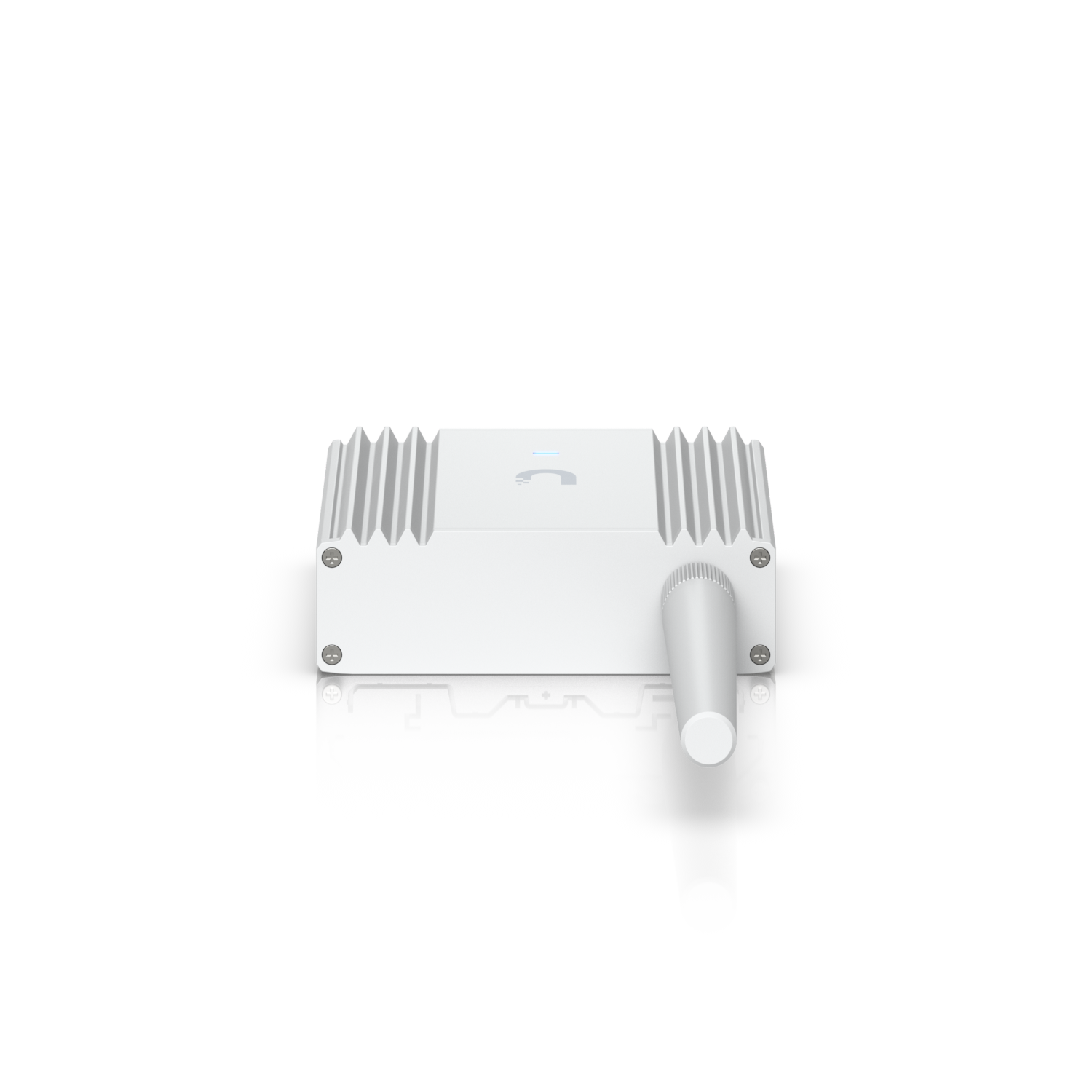

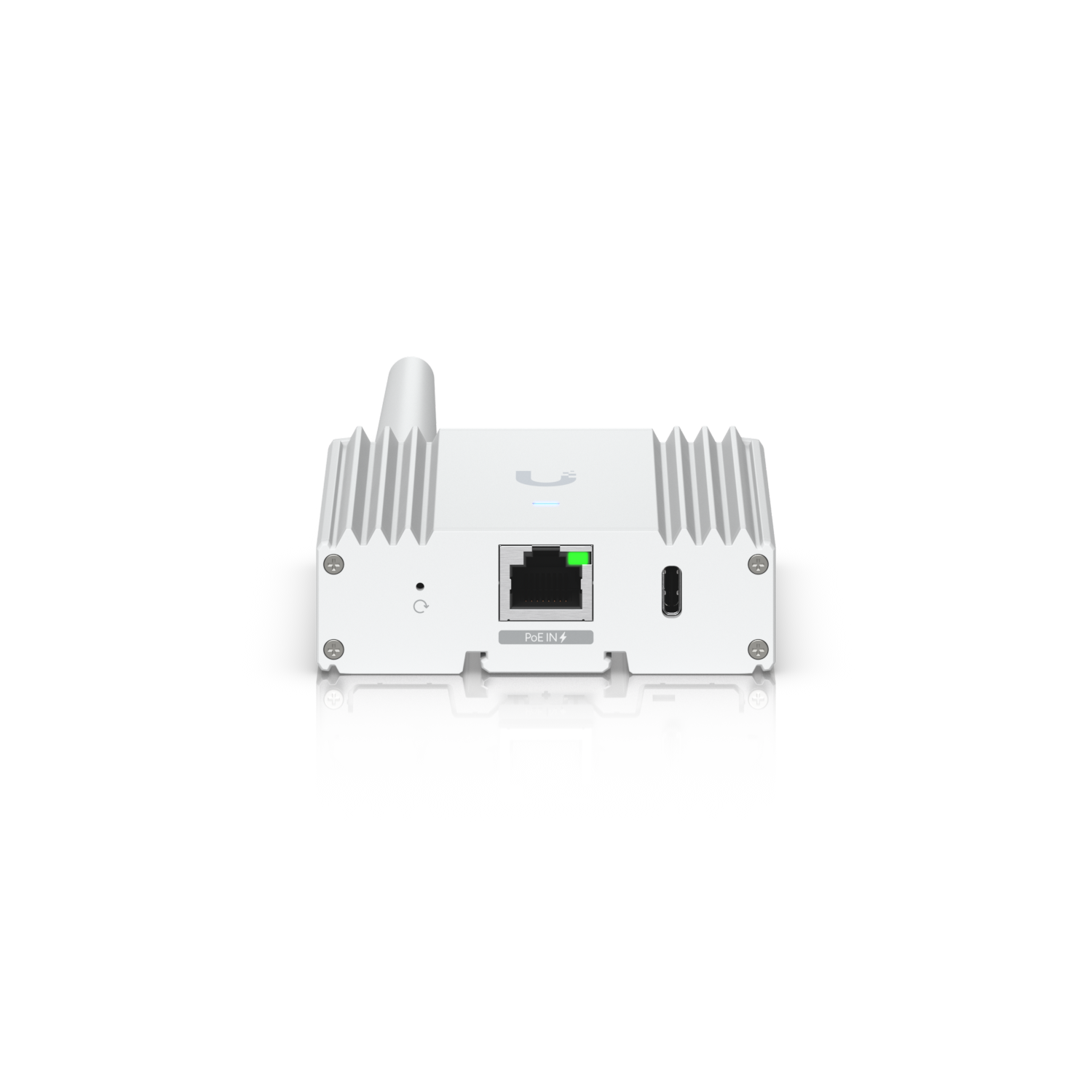

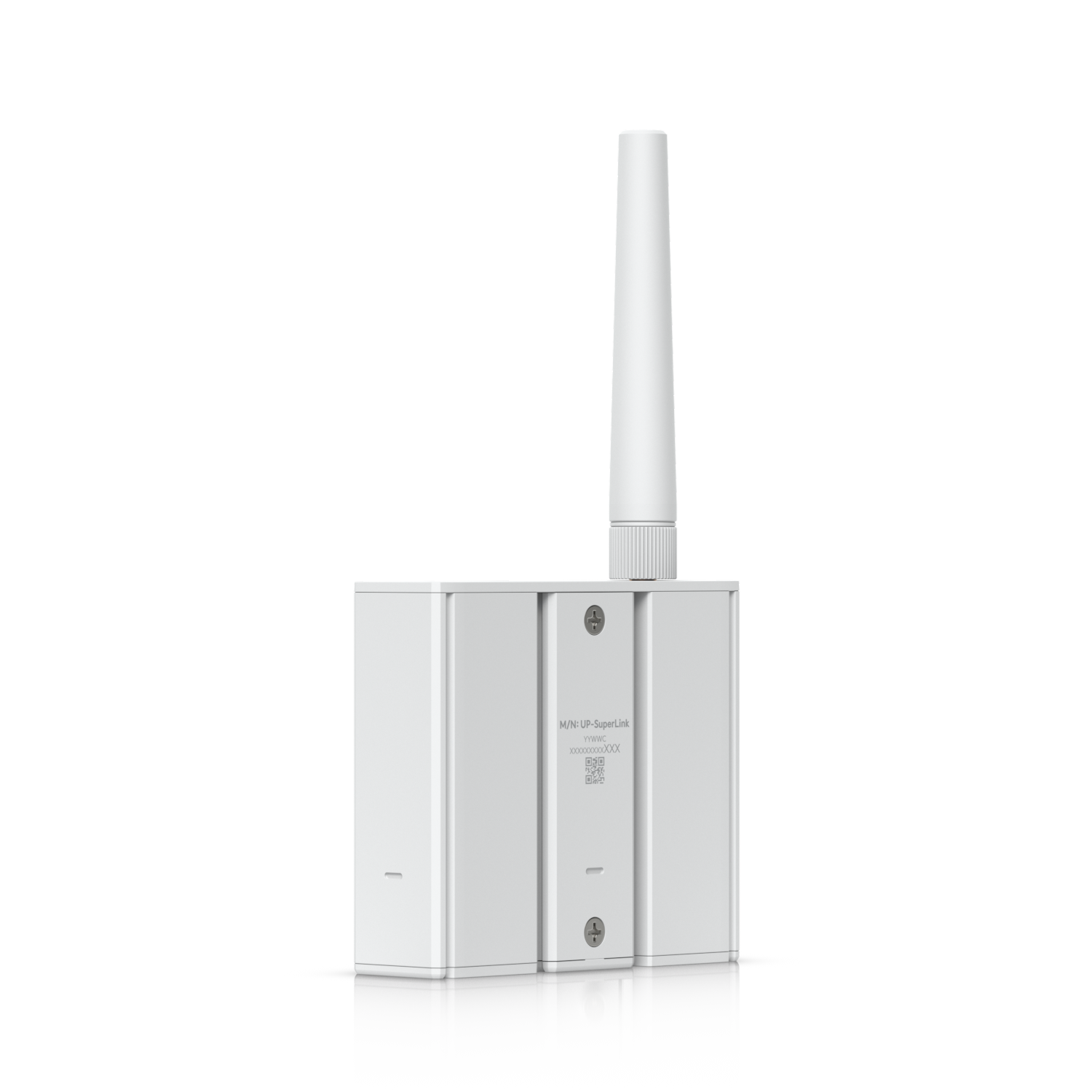

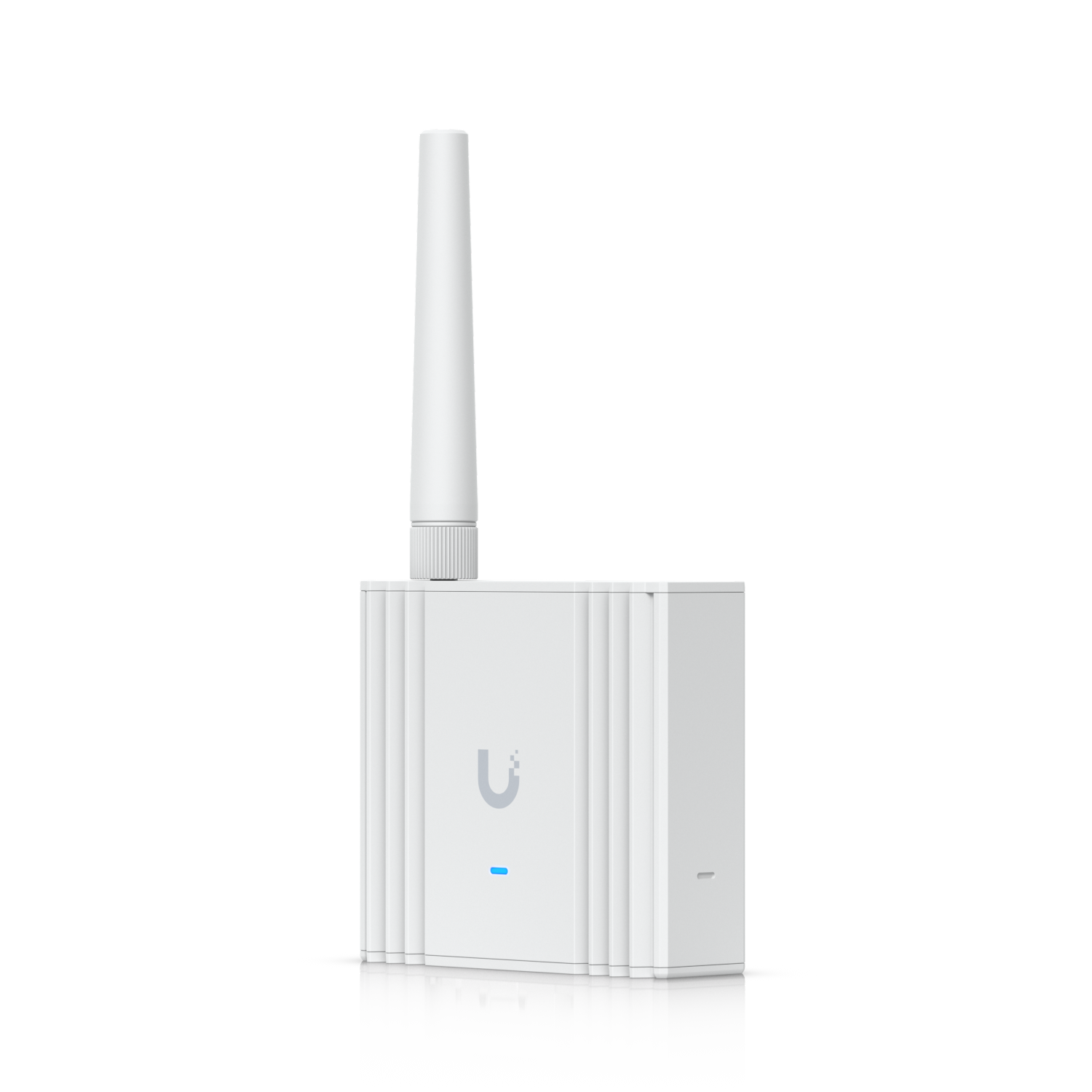

Ubiquiti UniFi SuperLink • UniFi Protect Sensor Gateway • Bluetooth • PoE • UP-SuperLink
UVP Netto: 114,85 €
Bestand:
0x
Vorraussichtlich wieder verfügbar ab: 01.01.2079
Artikel-Nr.:
241517
Herstellernummer:
UP-SuperLink
Intrastat ID:
85176200
Ursprungsland:
Taiwan
Garantie:
12 Monate
Gewicht:
0,179 KG
Produktinformationen "Ubiquiti UniFi SuperLink • UniFi Protect Sensor Gateway • Bluetooth • PoE • UP-SuperLink"
Proprietäres Wireless-Gateway mit extrem großer Reichweite und geringer Latenz für UniFi Protect-Sensoren.
Highlights:
- 96 SuperLink-Clients* mit bis zu 2 km Verbindungsreichweite (Sichtlinie)
- 7 UP-Sense (BLE)-Geräte mit verbesserter Konnektivität über große Entfernungen**
- Stromversorgung über PoE oder USB Type-C
- Optionen zur Wand- und DIN-Schienenmontage
- SuperLink-Installationshandbuch
Technische Daten:
Mechanisch | |
---|---|
Maße | Mit Antenne: 159,3 x 81,9 x 26 mm (6,3 x 3,2 x 1") Mit DIN-Schienenmontage: 159,3 x 81,9 x 38,5 mm (6,3 x 3,2 x 1,5") Mit Wandmontage: 159,3 x 81,9 x 30,5 mm (6,3 x 3,2 x 1,2") |
Gewicht | 179 g (6,3 oz) |
Gehäusematerial | Polycarbonat, Aluminiumlegierung |
Montagematerial | Polycarbonat |
Hardware | |
Netzwerkschnittstelle | (1) 10/100 MbE RJ45-Anschluss |
Verwaltungsschnittstelle | Bluetooth® 5.2 SuperLink (proprietär) |
Leistungsmethode | PoE USB Typ-C, 5 V, 1 A (optional) |
Max. Stromverbrauch | 3,4 W |
ESD/EMP-Schutz | Luft: ± 8 kV Kontakt: ± 4 kV |
Antennengewinn Bluetooth SuperLink |
3 dBi 1 dBi |
Max. Sendeleistung Bluetooth SuperLink |
10 dBm 27 dBm |
Max. Client-Anzahl Bluetooth SuperLink |
7 96* *SuperLink-Sensoren sind in Kürze verfügbar. |
LED | (1) Blau/weiß |
Taste | (1) Werksreset |
Montage | Wand, DIN-Schiene |
Umgebungstemperatur im Betrieb | 0 bis 40 °C (32 bis 104 °F) |
Luftfeuchtigkeit bei Betrieb | 10 bis 90 % nicht kondensierend |
Zertifizierungen | FCC, IC, CE |
Software | |
Webanwendung | UniFi Protect |
Mobile App | UniFi Protect iOS™ und Android™ |
